D-Link DNS-313 [60/67] The dns 313 schedule downloads configuration will appear
![D-Link DNS-313 [60/67] The dns 313 schedule downloads configuration will appear](/views2/1013329/page60/bg3c.png)
60

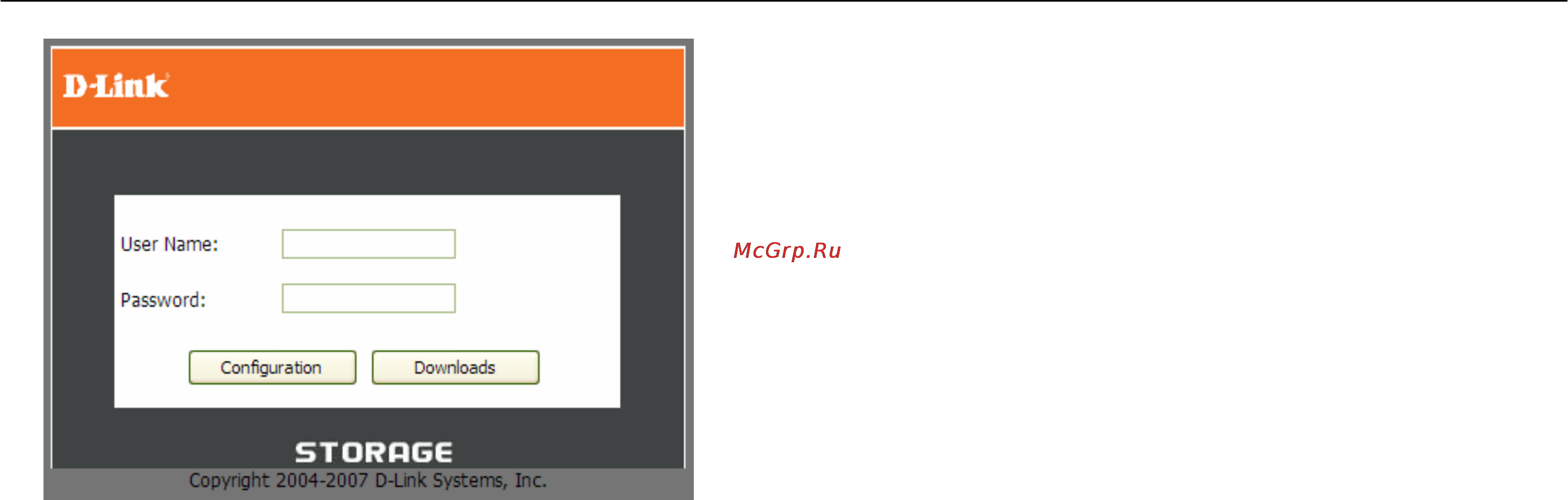

Type admin for the username and leave the password field blank.
Click ‘Downloads’.
The DNS-313 Schedule Downloads configuration will appear.
Section 3 - Configuration
