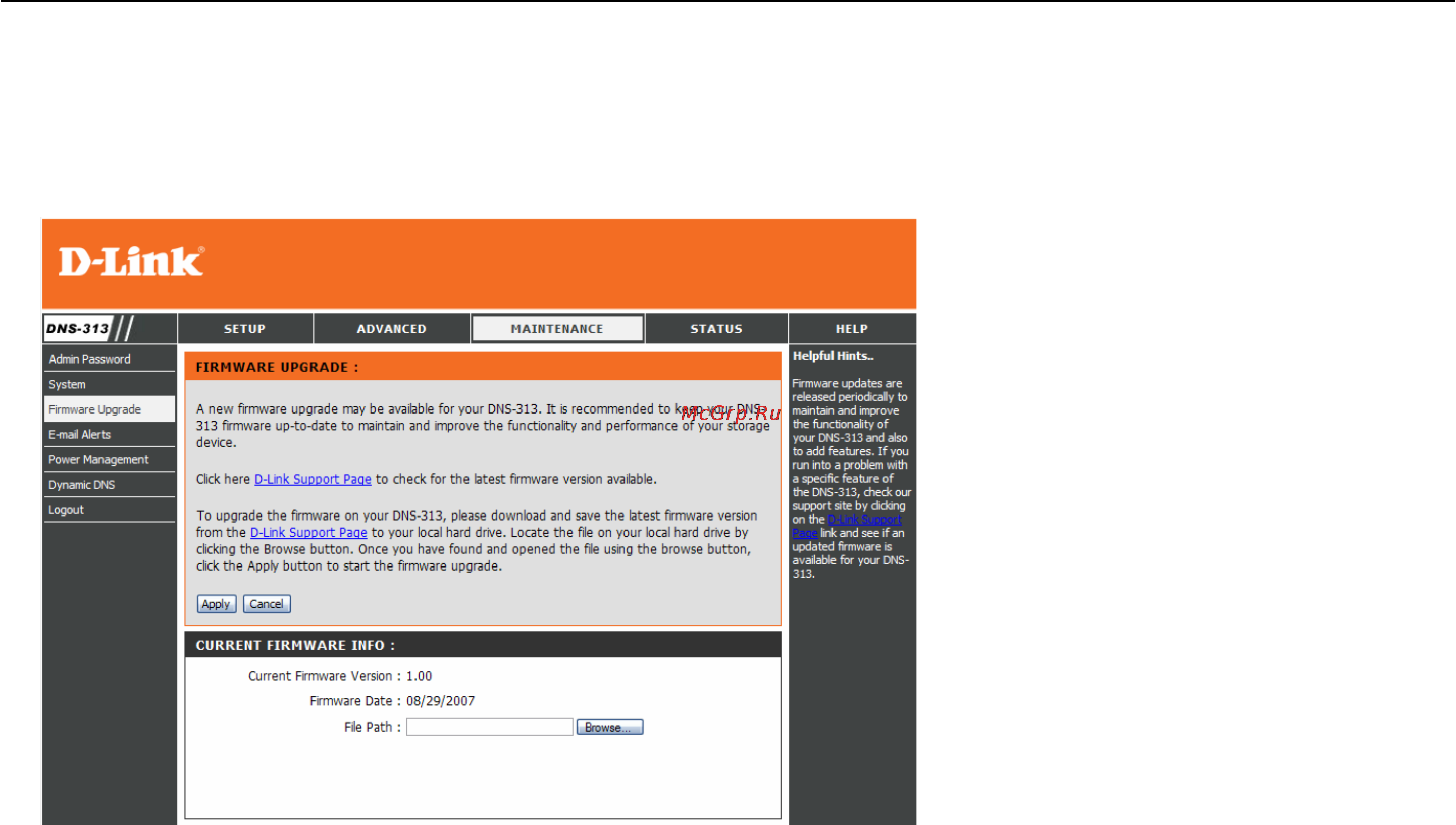

Firmware Upgrade
The DNS-313 Firmware Upgrade menu makes it simple to check for new firmware releases and upload them
to the device.
Firmware Upgrade
This section provides a link to check for new firmware on the D-Link support website.
If a new firmware is available, download the file to your local computer.
Current Firmware Info
This section provides information about the current DNS-313 firmware.
Section 3 - Configuration
