D-Link DNS-313 [28/67] Ftp server settings
![D-Link DNS-313 [28/67] Ftp server settings](/views2/1013329/page28/bg1c.png)
28

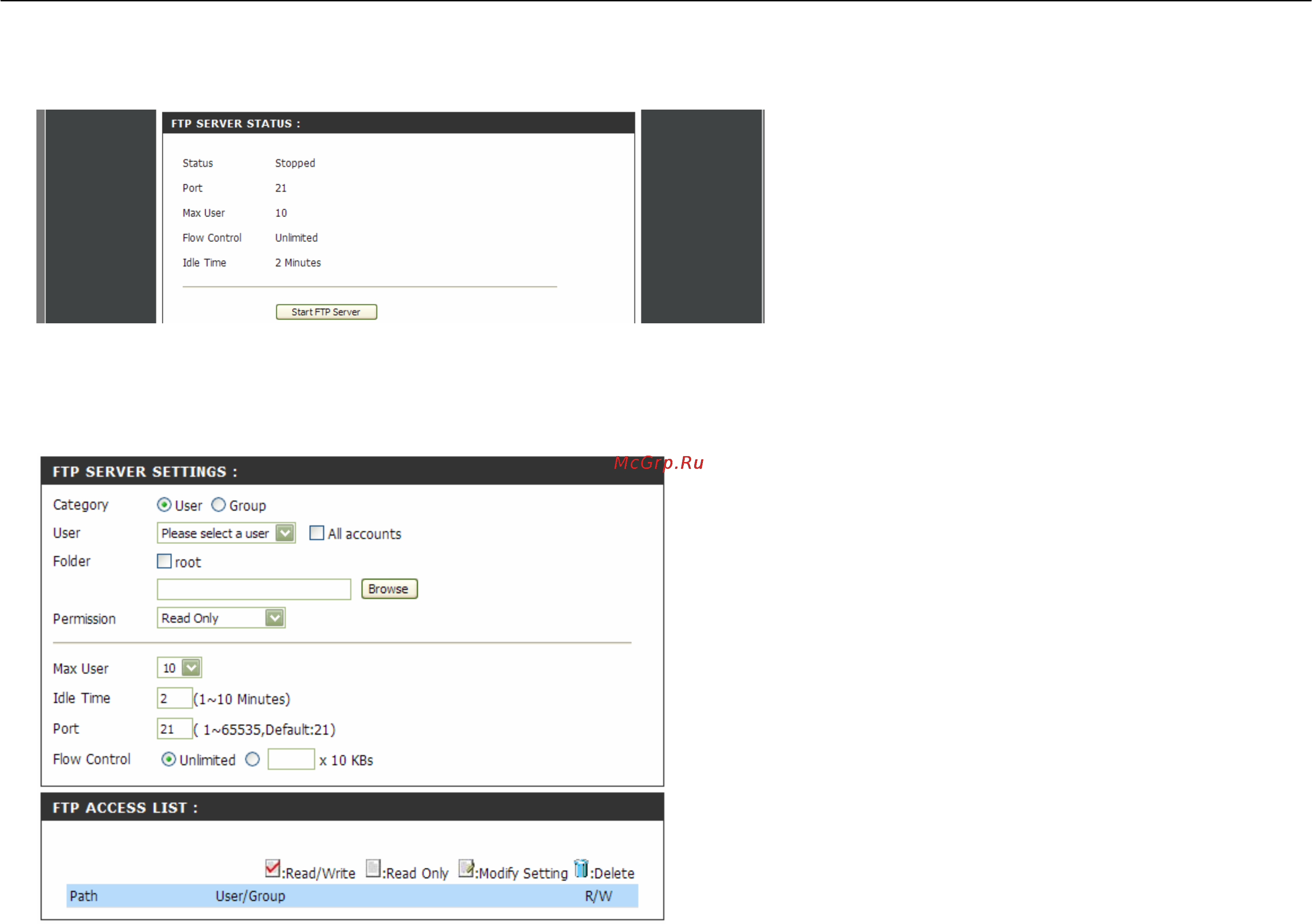

FTP Server Status
The current settings and status of the DNS-313 FTP Server are displayed here.
FTP Server Settings
Category
Determines whether the FTP server rule will apply to a group or individual user.
Section 3 - Configuration
