38
Maintenance

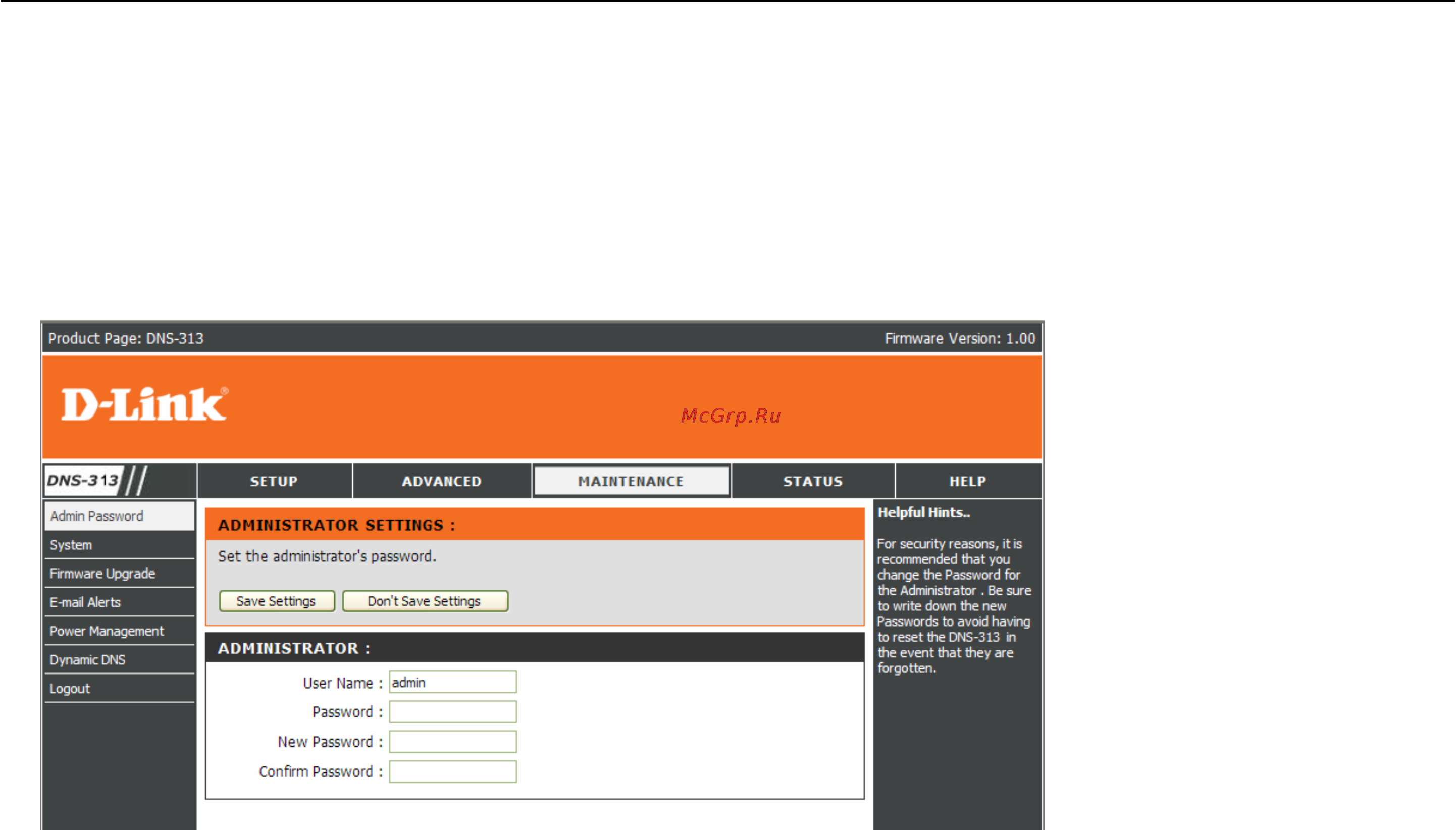

Admin Password
The Admin Password menu allows you to set a password for the admin account. It is recommended to set
an admin account password when first configuring the DNS-313.
User Name
The administrator user name is admin, and this cannot be changed.
Password
Enter the current password.
Section 3 - Configuration
