D-Link DNS-313 [14/67] Wizard
![D-Link DNS-313 [14/67] Wizard](/views2/1013329/page14/bge.png)
14
Setup
Wizard
The DNS-313 has a setup Wizard that allows you to quickly configure some of the basic device settings.

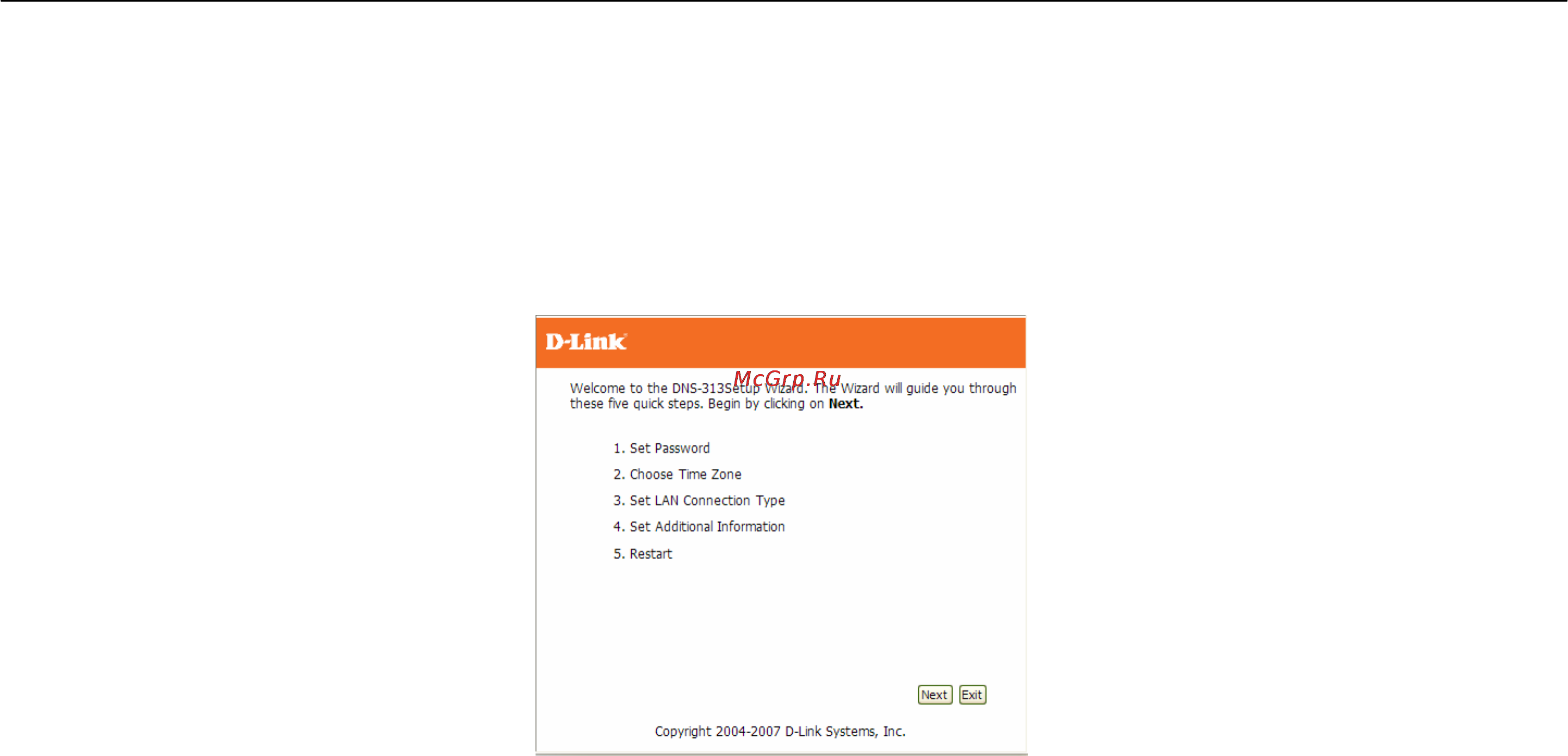

When running the DNS-313 setup wizard, the welcome screen details the five steps of the wizard. Click ‘Next’ to continue.
