7
Hardware Overview

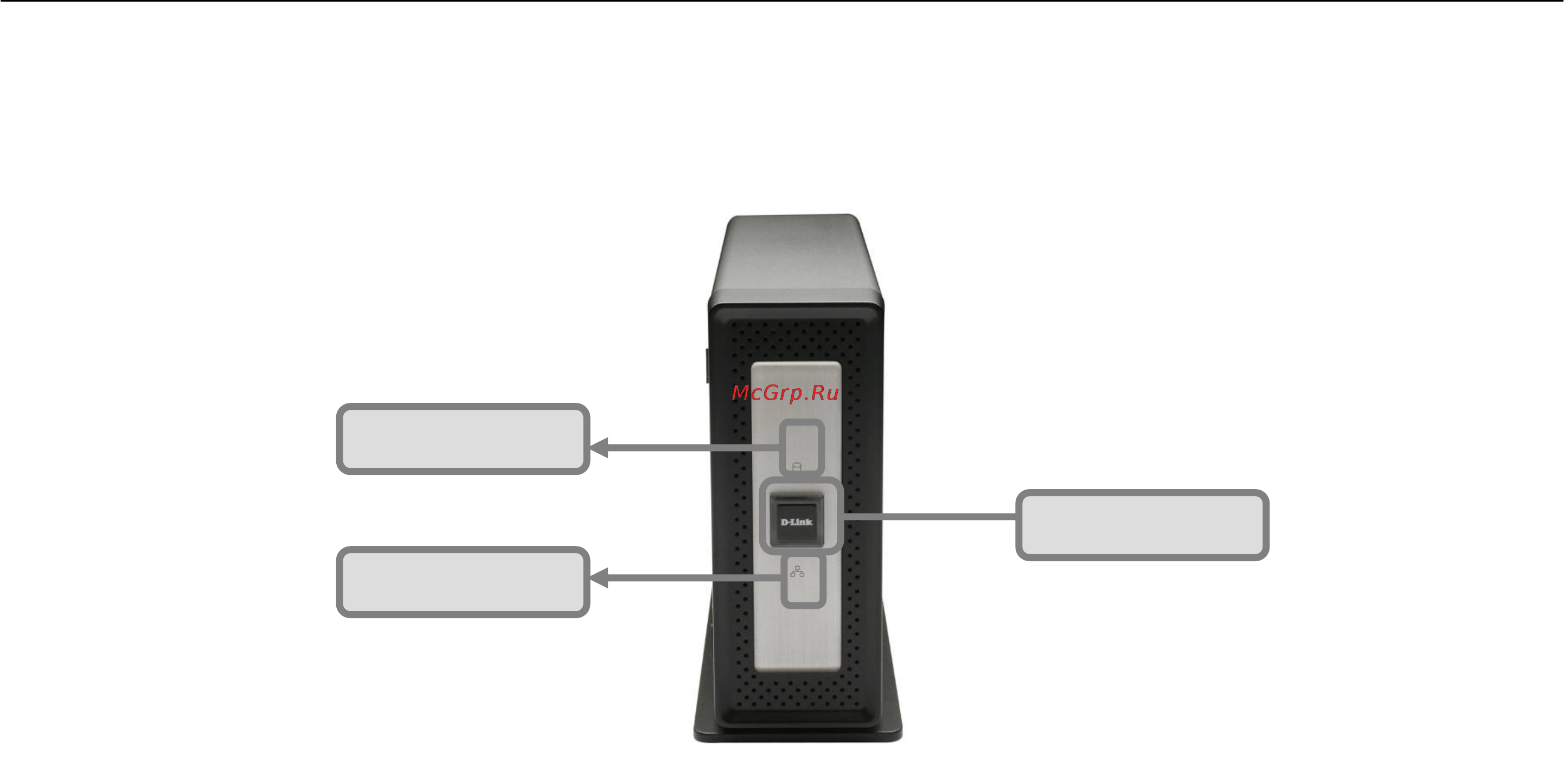

Front View
Power Button:
Press once to power on the DNS-313. Press again to power off the DNS-313.
Drive LED:
The LED will be solid BLUE when drive is connected but inactive. The LED will blink when the drive is being
accessed, formatted or synchronized. The LED will be solid GREEN when the remaining capacity of the drive is less
than 5%. It will illuminate RED if the drive has failed.
Activity LED:
The Activity LED will be solid BLUE when there is an Ethernet connection. It will blink to indicate LAN traffic.
Power Button
Drive LED
Activity LED
Section 1 - Product Overview
