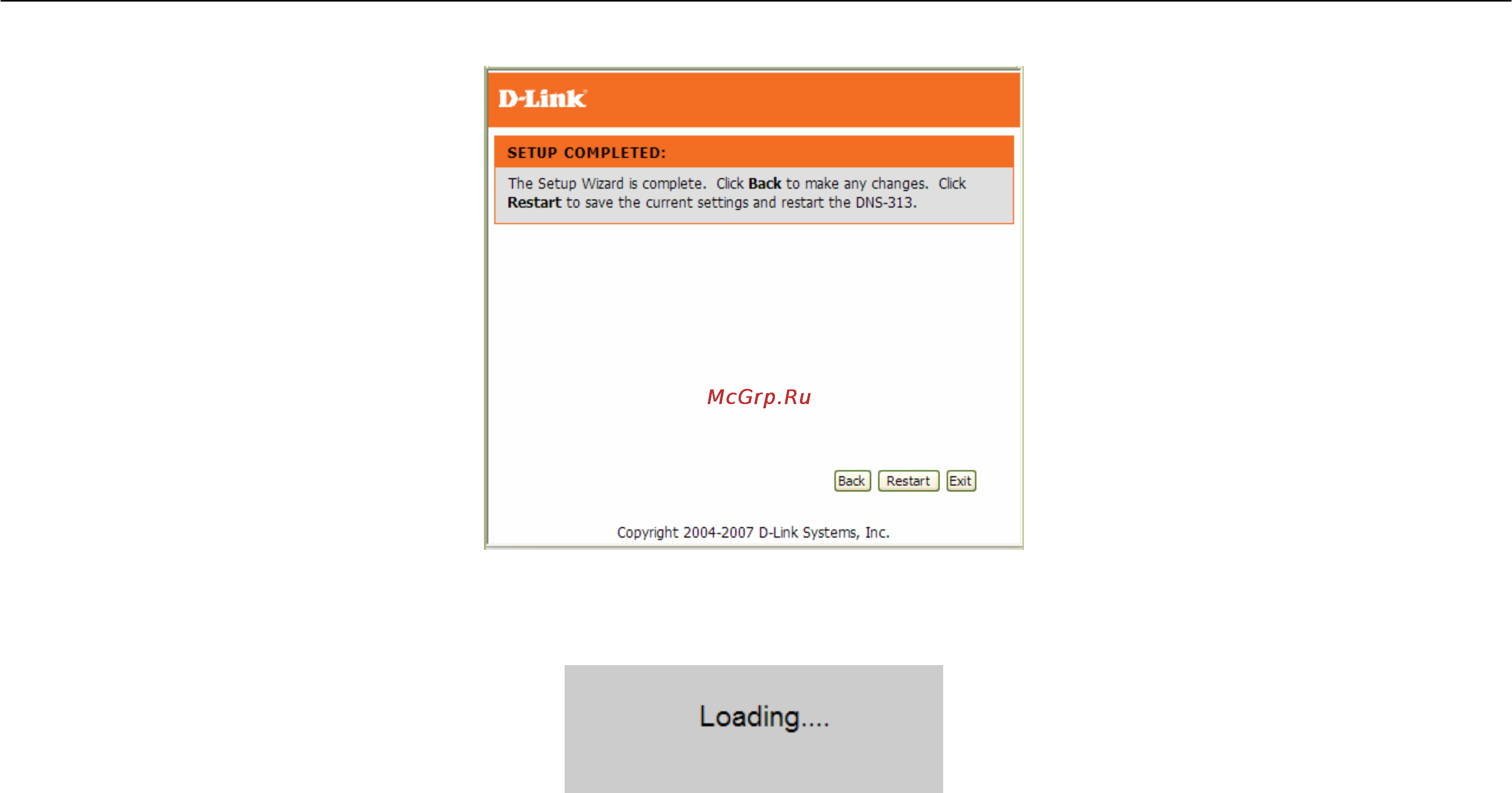

When the wizard completes, click ‘Back’ to go back and make changes or click ‘Restart’ to restart the DNS-313 and save the
configuration.
While the DNS-313 is restarting, a Loading message will appear.
Section 3 - Configuration
