MPC-122-K Hardware Hardware Introduction
2-3

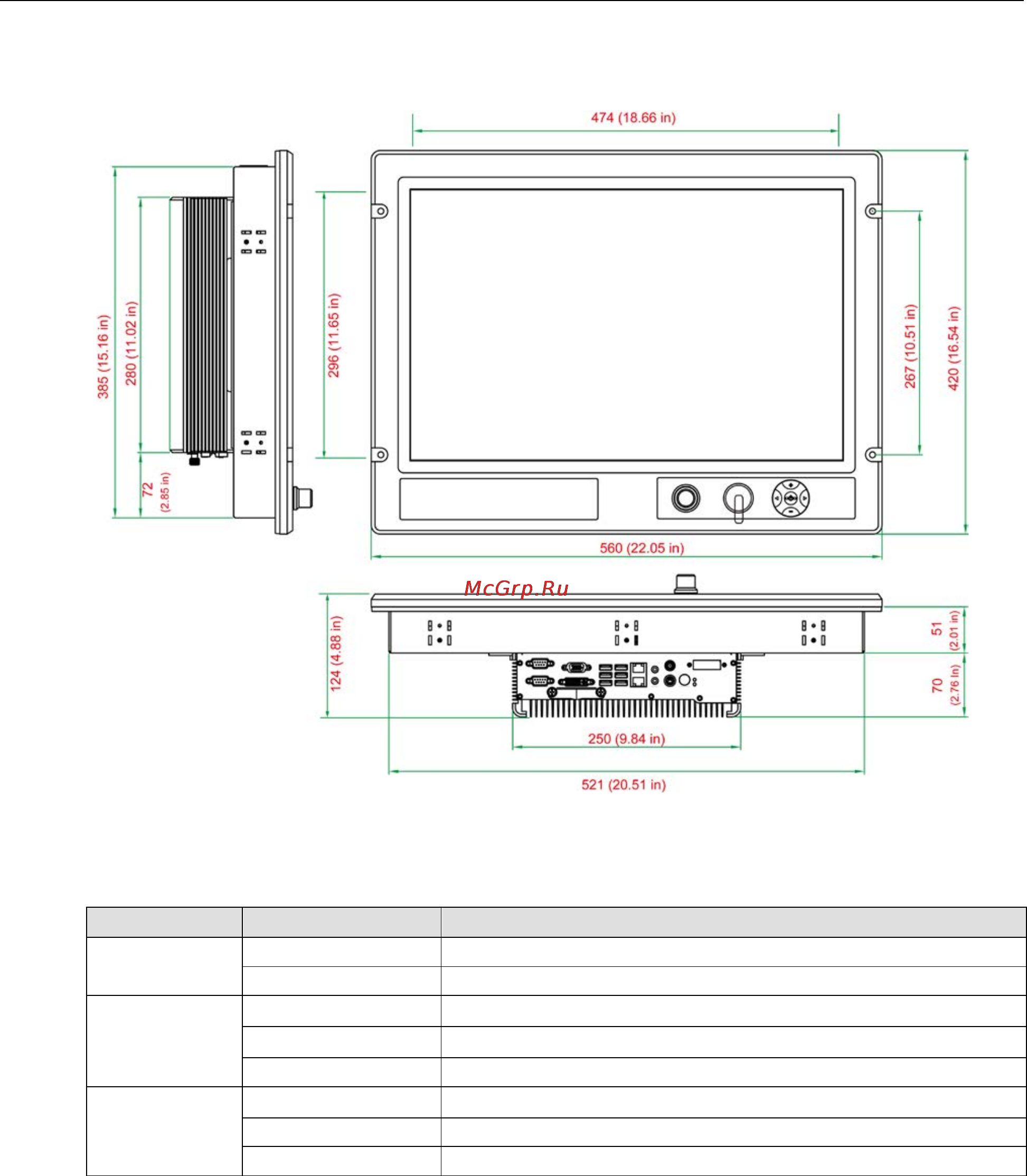

Dimensions
LED Indicators
LED Name LED Color LED Function
Power Green Power is on and functioning normally
Off Power is off or a power error exists
Storage Yellow (on) CF card is inserted and detected
Yellow (blinking) CF card or HDD is reading/writing
Off No activity
LAN Green 100 Mbps Ethernet mode
Yellow 1000 Mbps (Gigabit) Ethernet mode
Off No activity or 10 Mbps Ethernet mode
Real Time Clock
The embedded computer’s real-time clock is powered by a lithium battery. We strongly recommend that you
NOT replace the lithium battery on your own. If the battery needs to be changed, please contact the Moxa RMA
service team.
