Moxa MPC-122X-K [23/47] Installing a sata hard disk
![Moxa MPC-122X-K [23/47] Installing a sata hard disk](/views2/1200670/page23/bg17.png)
MPC-122-K Hardware Hardware Connection Description
3-10

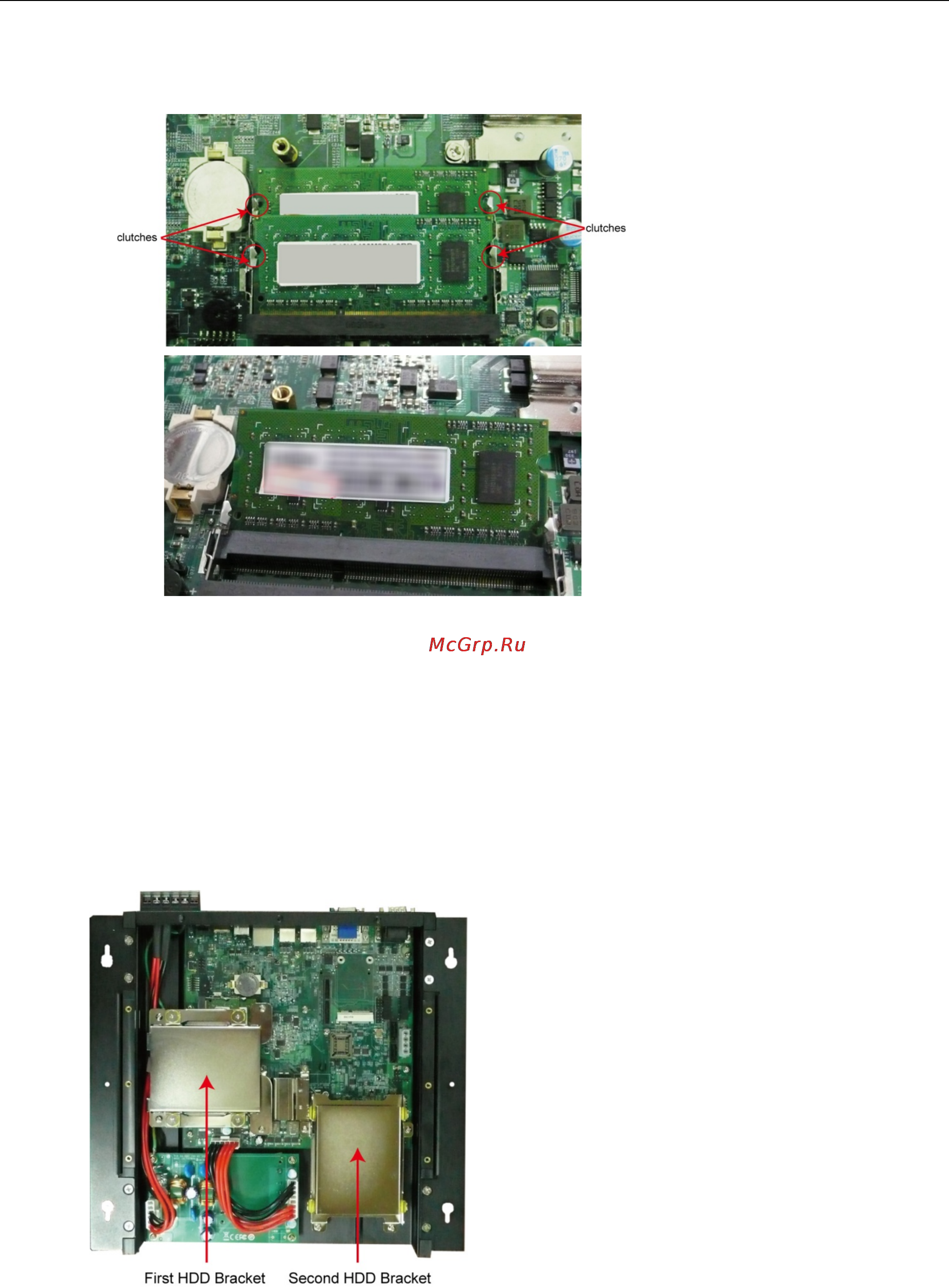

7. After the first HDD bracket has been removed, you can find two memory modules. Carefully remove the
module by clicking the clutches at both sides of the module, and then replace the new module. Be sure to
orient the module correctly.
8. When finished, replace the first HDD bracket and the back cover of the computer.
Installing a SATA Hard Disk
The MPC-122-K has two SATA connectors for installing two SATA hard disks. To install the 2.5-inch SATA hard
disks, follow these instructions.
After removing the back cover of the computer, find the HDD brackets in the following figure. Please note that
you can install your hard disk onto either HDD bracket. However, if you would like to install an SSD type disk,
we suggest you have it installed on the second HDD bracket.
