MPC-122-K Hardware Hardware Connection Description

3-2

Installing the MPC-122-K

Wall or Cabinet Mounting

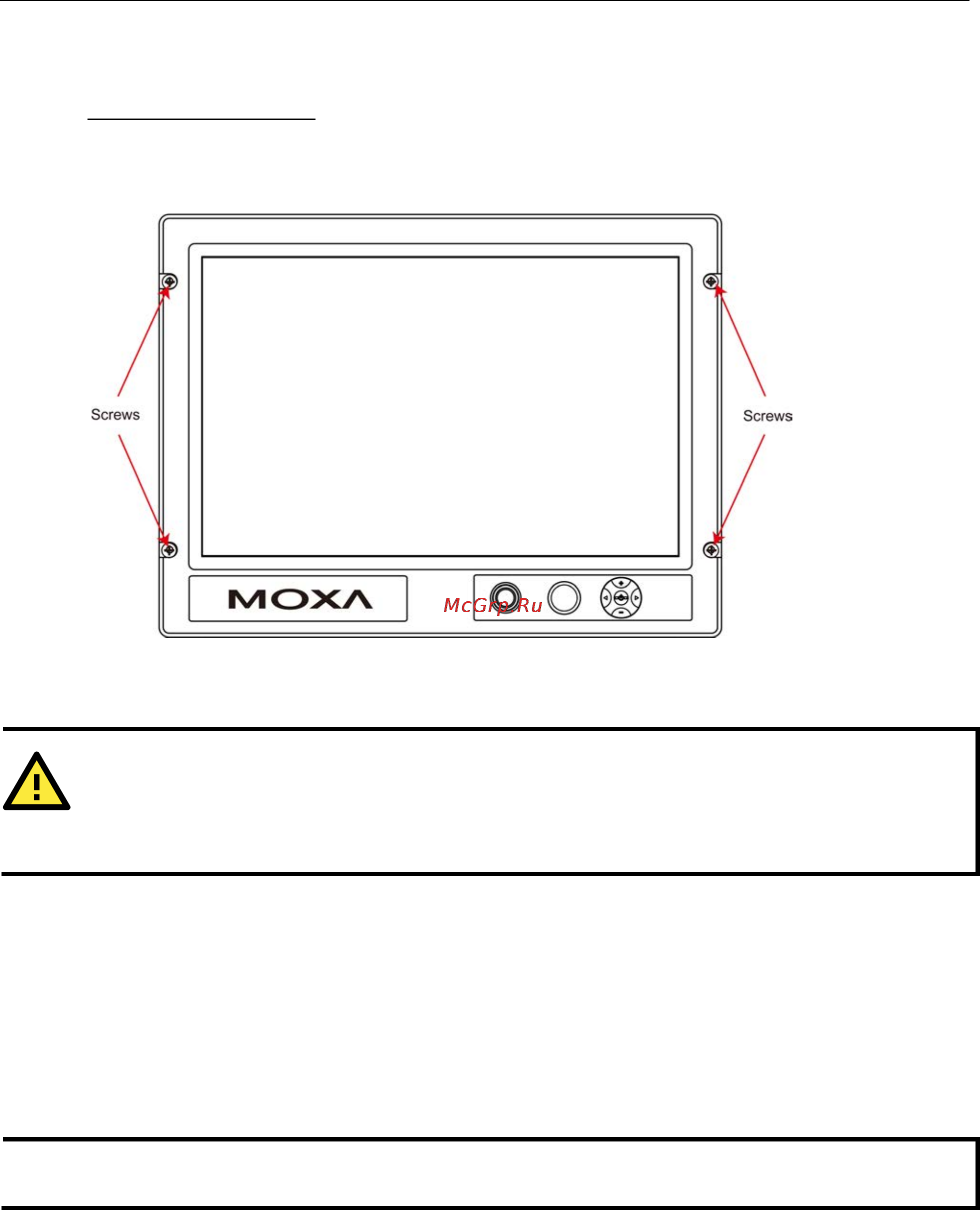

There are a total of four screw holes on the panel, two on the left and two on the right. Use two screws per side

to attach the MPC-122-K to a wall or cabinet.

For safety reasons, it is important to ensure that the four corners and four sides of the panel are firmly attached

to the cabinet, so that the cabinet is completely stabilized.

ATTENTION

Clean the monitor using a soft material such as microfiber cloth. You may also use LCD cleaning liquid to

clean

the monitor.

Avoid using coarse or rough material to clean the monitor as they may damage the optical bonding.

Wiring Requirements

This section describes how to connect serial devices to the embedded computer.

You should read and follow these common safety precautions before proceeding with the installation of any

electronic device:

• Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must

cross, make sure the wires are perpendicular at the intersection point.

NOTE Do not run signal or communication wiring together with power wiring in the same wire conduit. To avoid

interference, wires with different signal characteristics should be routed separately.

• Use the type of signal transmitted through a wire to determine which wires should be kept separate. The

rule of thumb is that wiring that shares similar electrical characteristics can be bundled together.

• Keep input wiring and output wiring separate.

• It is advisable to label the wiring to all devices in the system.
