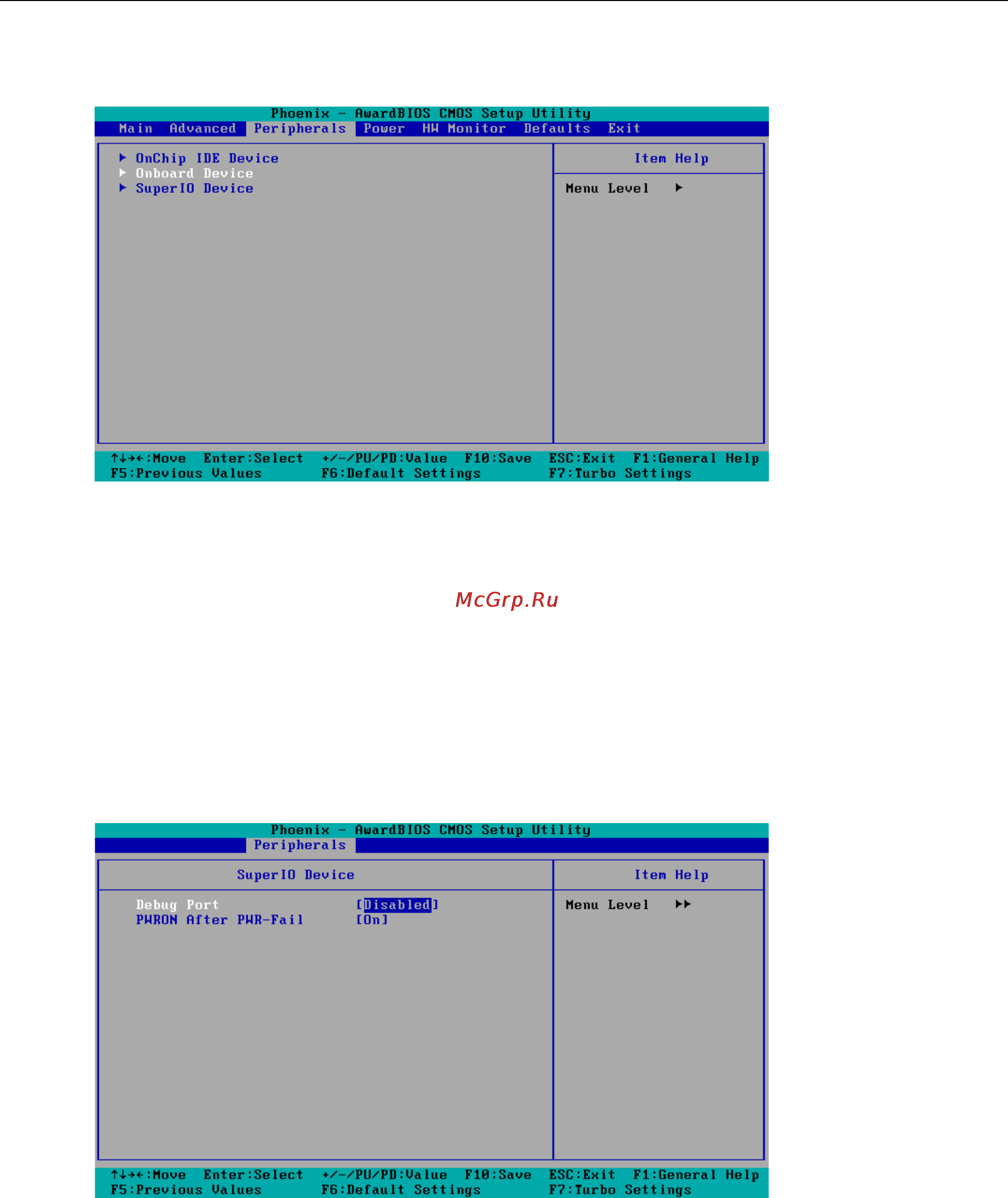

MPC-122-K Hardware BIOS Setup
4-7
Onboard Device
Onboard LAN Boot ROM
Decide whether to invoke the boot ROM of the onboard LAN chip.
Options: Enabled, Disabled (default)
Super I/O Device
Debug Port
This function allows you to enable/disable the debug port communication. This port is only for engineers who
are debugging program.
Options: Disabled (default), Enabled
Power on After Power Fail
This item allows you to configure the power on after power fail function.
Options: Off, On (default), Former-Sts
