MPC-122-K Hardware BIOS Setup
4-4
Hard Disk Boot Priority
First/Second/Third Boot Device
This option allows users to select or change the device boot priority. You may set 3 levels of priority to
determine the boot up sequence for different bootable devices, such as a hard drive, CD-ROM, and removable
devices. Select the order in which devices will be searched in order to find a boot device. The available options
are “CDROM (default for first boot device),” “Removable” (default for third boot device), “Hard Disk” (default
for second boot device) and “Disabled.”
Advanced BIOS Features

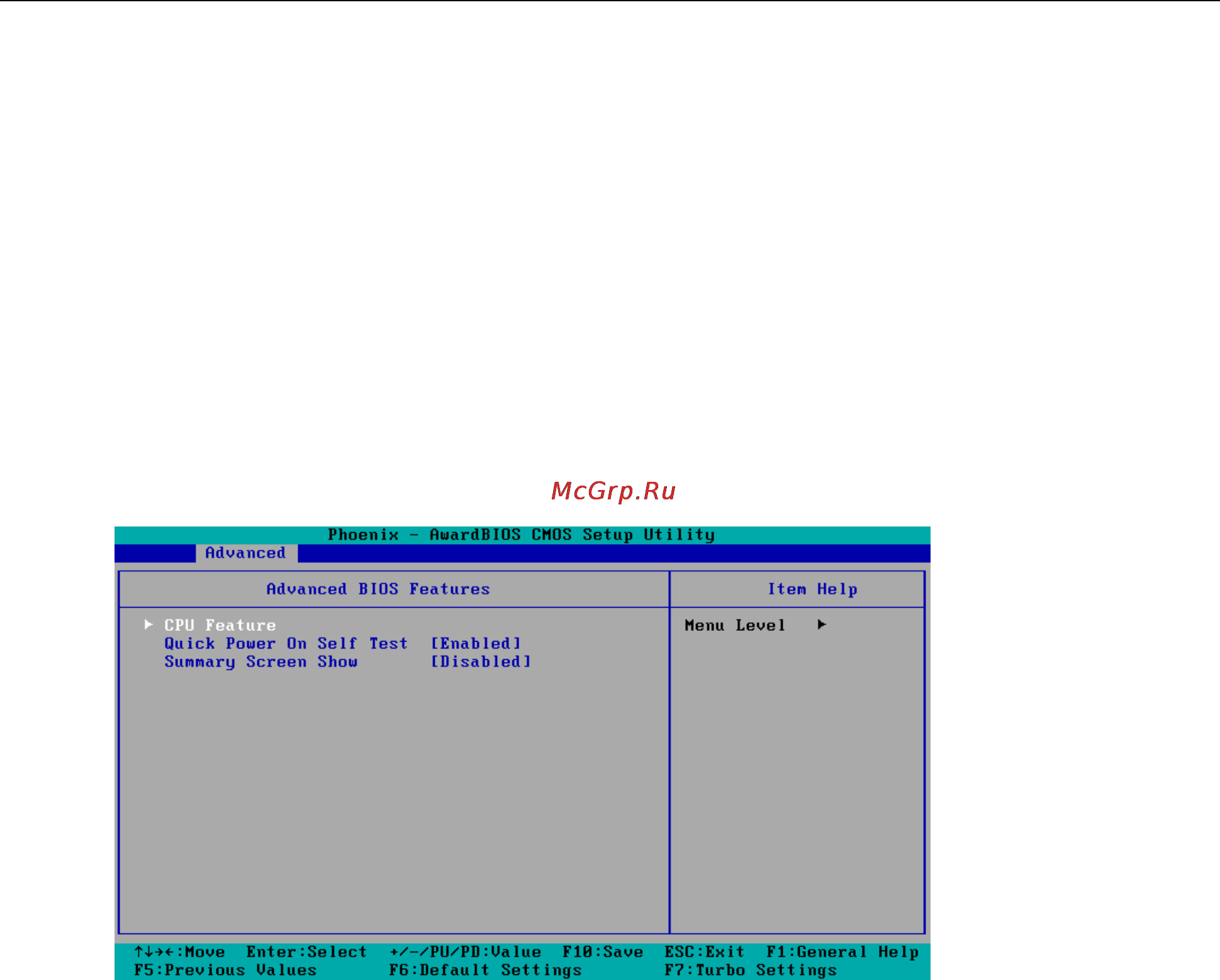

When you select the “Advanced BIOS Features” option under the “Advanced” menu, the following configuration
menu will appear.
CPU Features
C1E Function
This item allows you to configure the power-saving mode when the CPU is in C1 status.
Options: Auto (default), Disabled
Quick Power On Self Test
This setting allows the system to skip certain tests while the system boots up. Enable this feature to speed up
the boot up process.
Options: Enabled (default), Disabled
Summary Screen Show
The summary screen displays system information, including CPU, memory, disk drive, and PCI devices. The
default value is disabled. You may choose “Enabled” to display this screen when the system is booting up.
Options: Disabled (default), Enabled
