MPC-122-K Hardware Hardware Connection Description
3-11

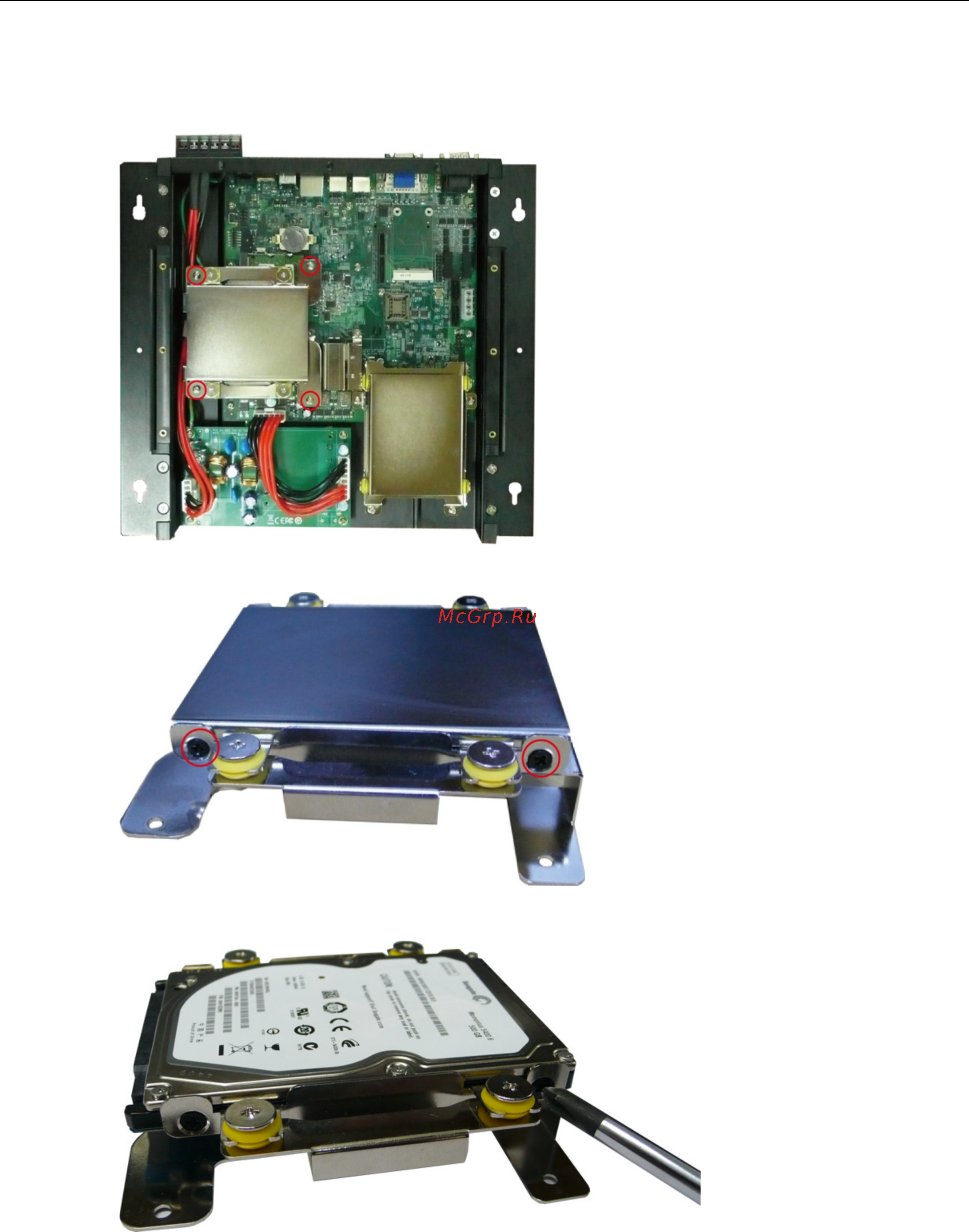

Installing the Hard Disk on the First HDD Bracket
1. Remove the four screws on the first HDD bracket.
2. Remove two black screws on each side of the bracket, and then take off the cover.
3. Place the hard disk on the bracket. Use the four screws to fasten the hard disk at both sides of the bracket.
