MPC-122-K Hardware Hardware Connection Description
3-12

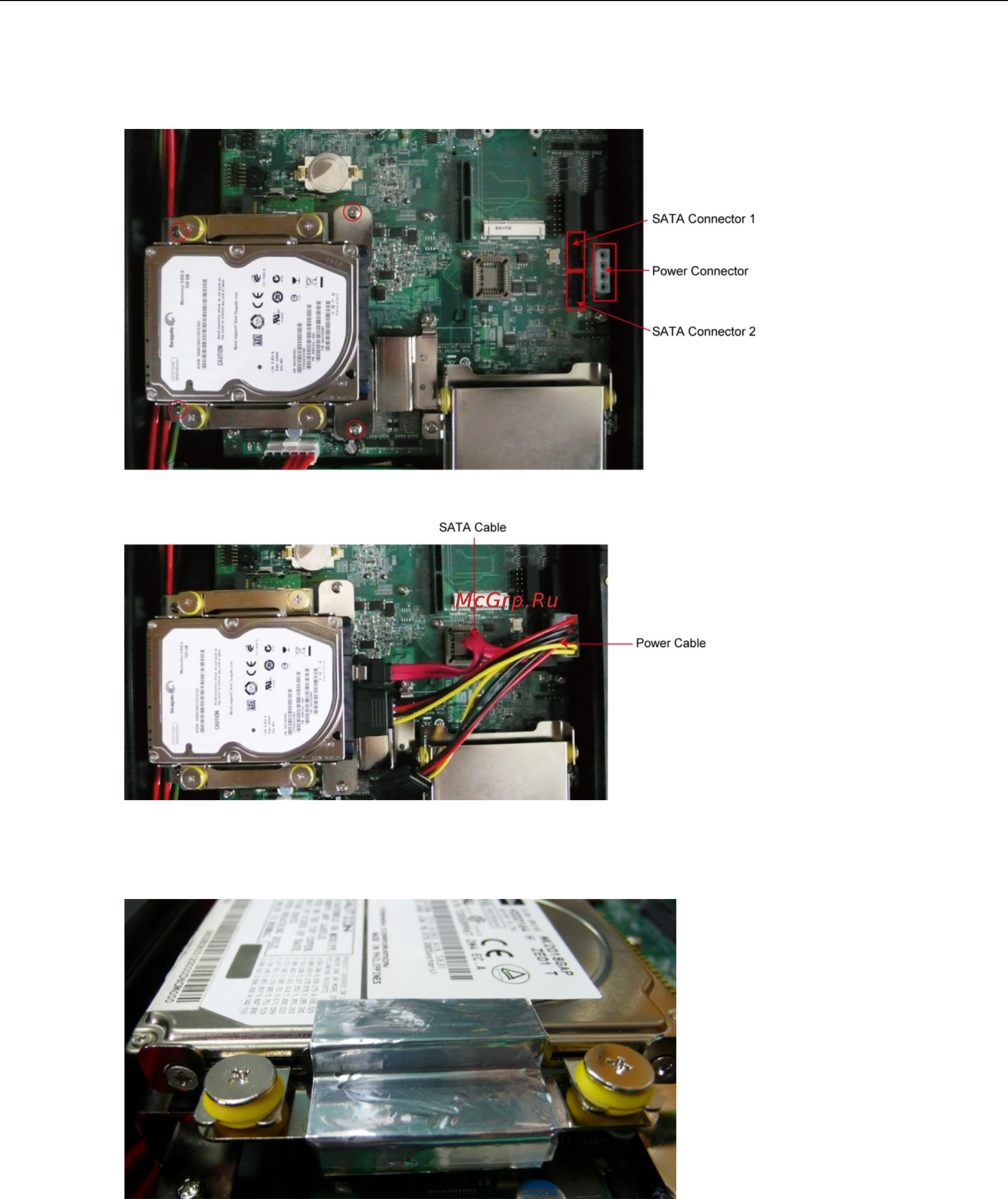

4. When finished, place the bracket on the computer, and use four screws to fasten the bracket. Next, find the
location of the power connect and the SATA connectors. There is one power connector which can be used by
two SATA hard disks, and there are two SATA connectors for connecting two SATA disks.
5. Connect the power cable to the power connector and the SATA cable to the SATA connector.
6. When finished, use the ground sticker to attach the hard drive disk and the bracket. Make sure that the
metal parts of the hard drive disk and the bracket have been attached. If you are using a solid state drive
(SSD), you don’t need to attach this sticker.
