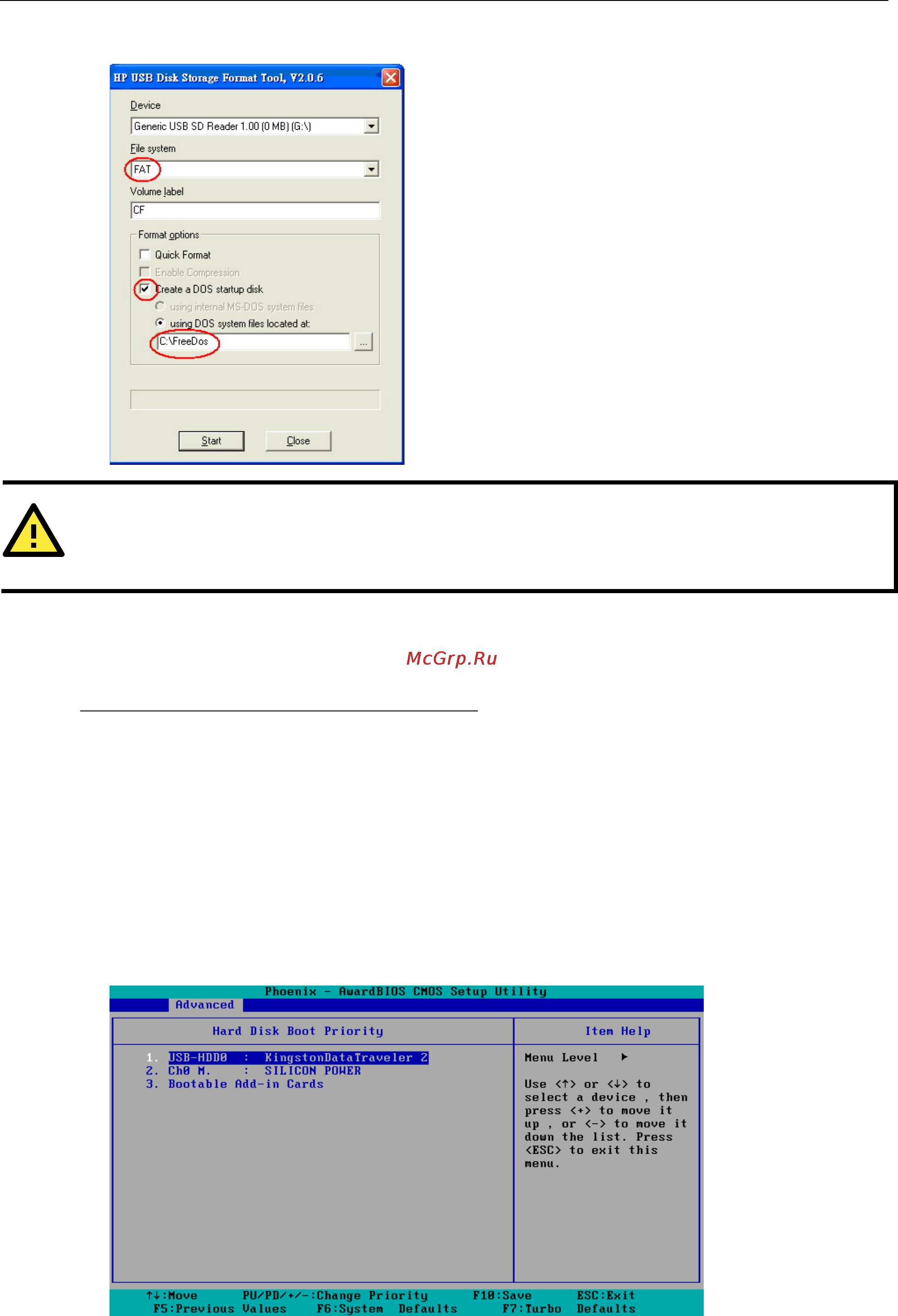

MPC-122-K Hardware BIOS Setup
4-11
7. Click Start to format and create the USB disk.
ATTENTION
We suggest you use a USB drive with under 2 GB in
disk space, as larger USB drives may not support FAT file
format and consequently fail to boot.
Step 2: Prepare the Upgrade Tool and BIOS Binary File.
You must use the BIOS upgrade installation file to upgrade the BIOS. You can download it from the Moxa
Download Center at:
http://web4.moxa.com/support/download_center.asp
1. Get the BIOS upgrade installation file. The file name should have following format: 451010.s02.
2. Copy the file to the Bootable USB Disk.
3. Double click to extract the BIOS update installation file. The file includes a binary file in the form
s451010.s02 and the upgrade utility named awdflash.exe.
Step 3: Set up the BIOS to Boot from the USB Disk.
1. Insert the USB disk.
2. Power on and press DEL to enter the BIOS Setup menu.
3. Select Advanced Hard Disk Boot Priority and then press Enter.
4. From the Setup menu, use “↑” or “↓” to select the USB device.
