MPC-122-K Hardware BIOS Setup
4-9
This item helps monitor the status of the system, including CPU temperature and the voltage of the CPU,
SDRAM and battery.
CPU Warning Temperature
This item allows you to configure what temperature will trigger a high temperature warning.
Options: 80°C/176°F, 90°C/194°F (default), 100°C/212°F, Disabled
Warning Beep
This item allows you to enable/disable the warning beep.
Options: Disabled (default), Enabled

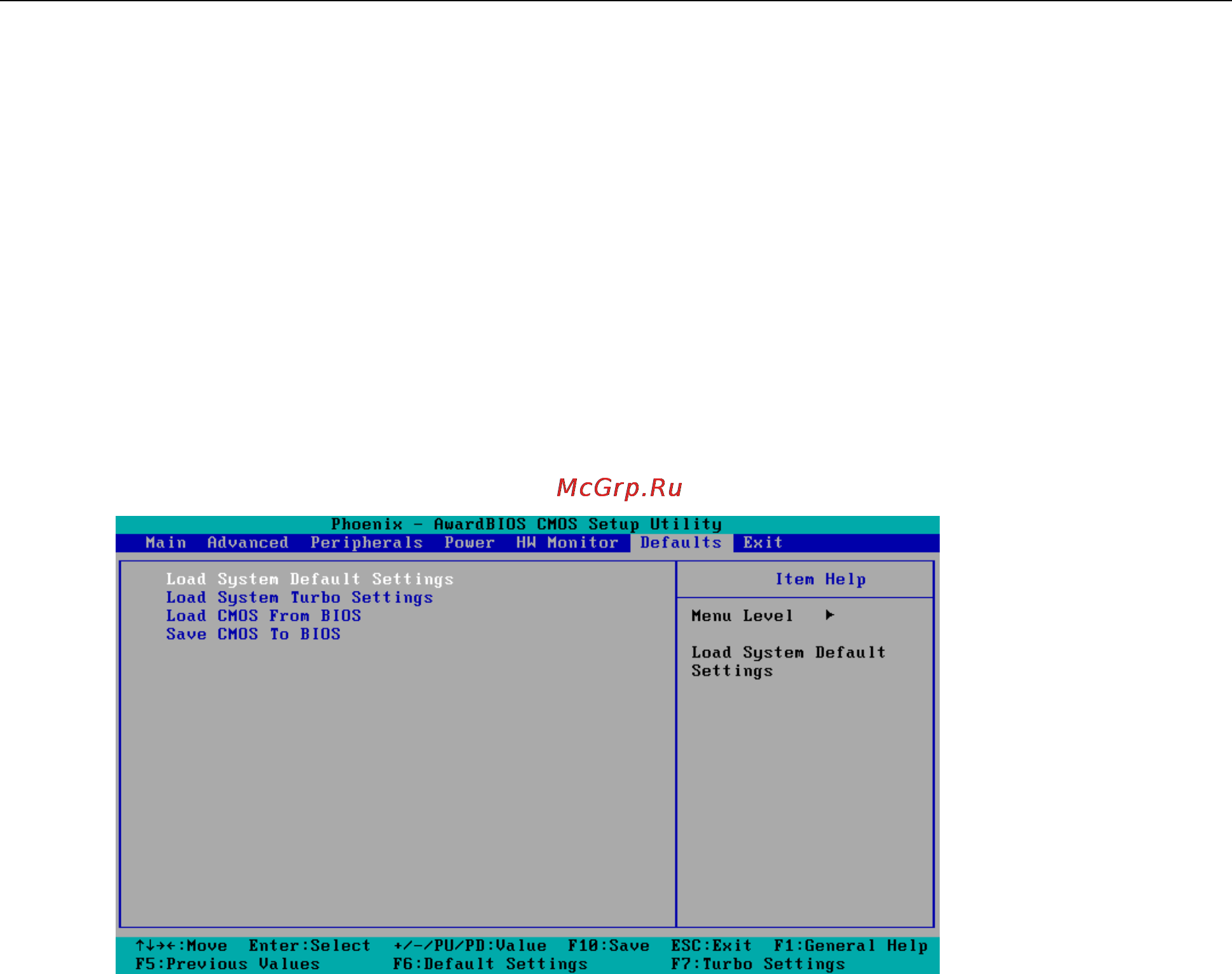

Load Defaults
Load System Default Settings
Use this option to load system factory default settings instead of the current BIOS settings. This option is useful
for when the system is unstable. Users do not need to remember what settings were active before the system
fails.
Load System Turbo Settings
Use this option to load system optimized settings. If the system is not stable, please load the system default
settings.
Load CMOS from BIOS
Use this option to load BIOS settings from flash ROM to CMOS.
Save CMOS to BIOS
Use this option to save the BIOS settings from the CMOS to flash ROM.
