MPC-122-K Hardware Hardware Connection Description
3-8
Upgrading the Memory Module
The MPC-122-K computer supports two memory sockets that have been installed with 2 GB DDR2 SDRAM
modules (1 GB for each socket). To upgrade the DDR3 SDRAM memory module, follow these instructions:
1. Disconnect the MPC-122-K from the power source.

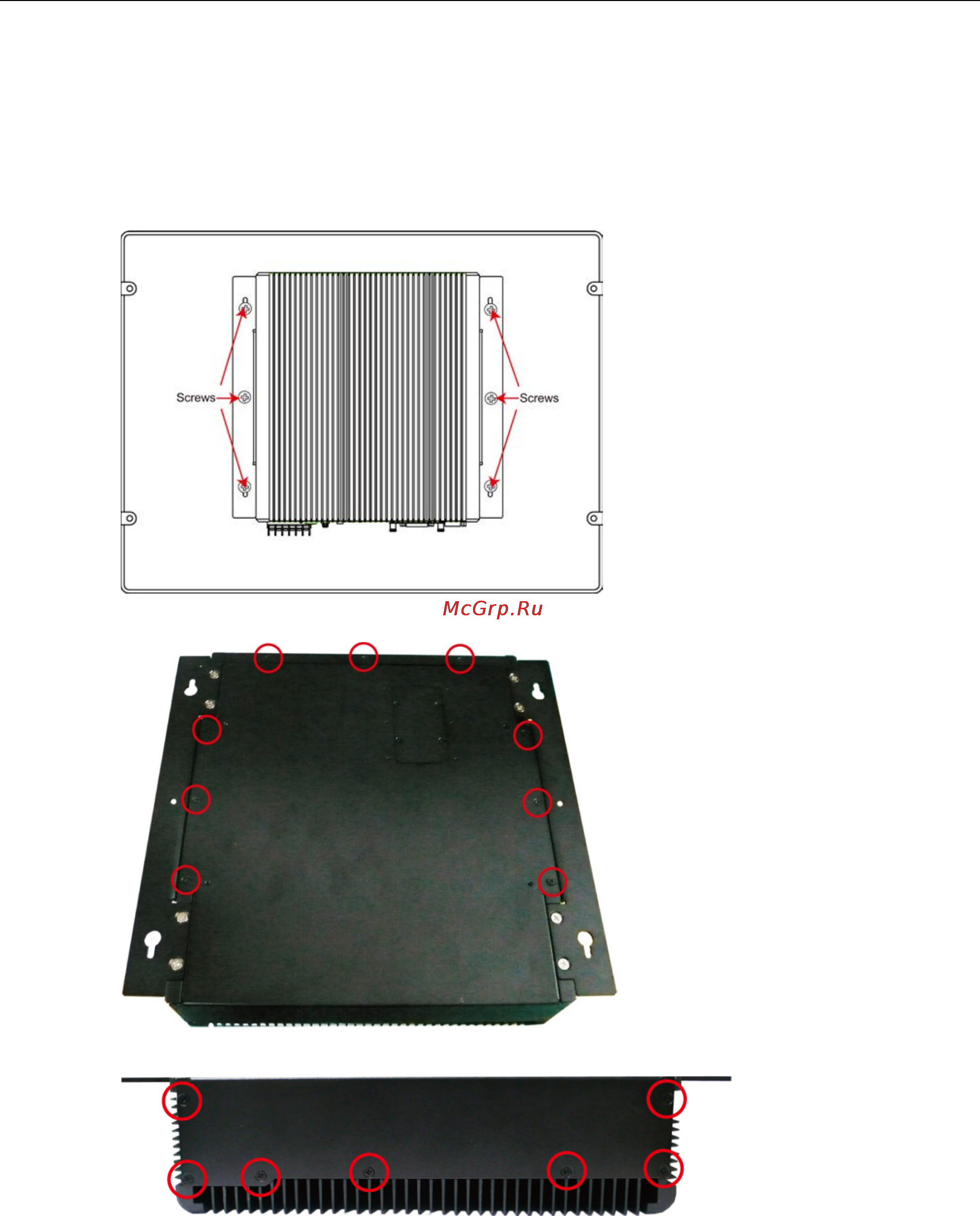

2. Remove the six screws as illustrated below.
3. Remove the nine screws on the back cover. See the following figure for detailed location.
4. Then remove seven screws on the rear cover.
