MPC-122-K Hardware BIOS Setup
4-6

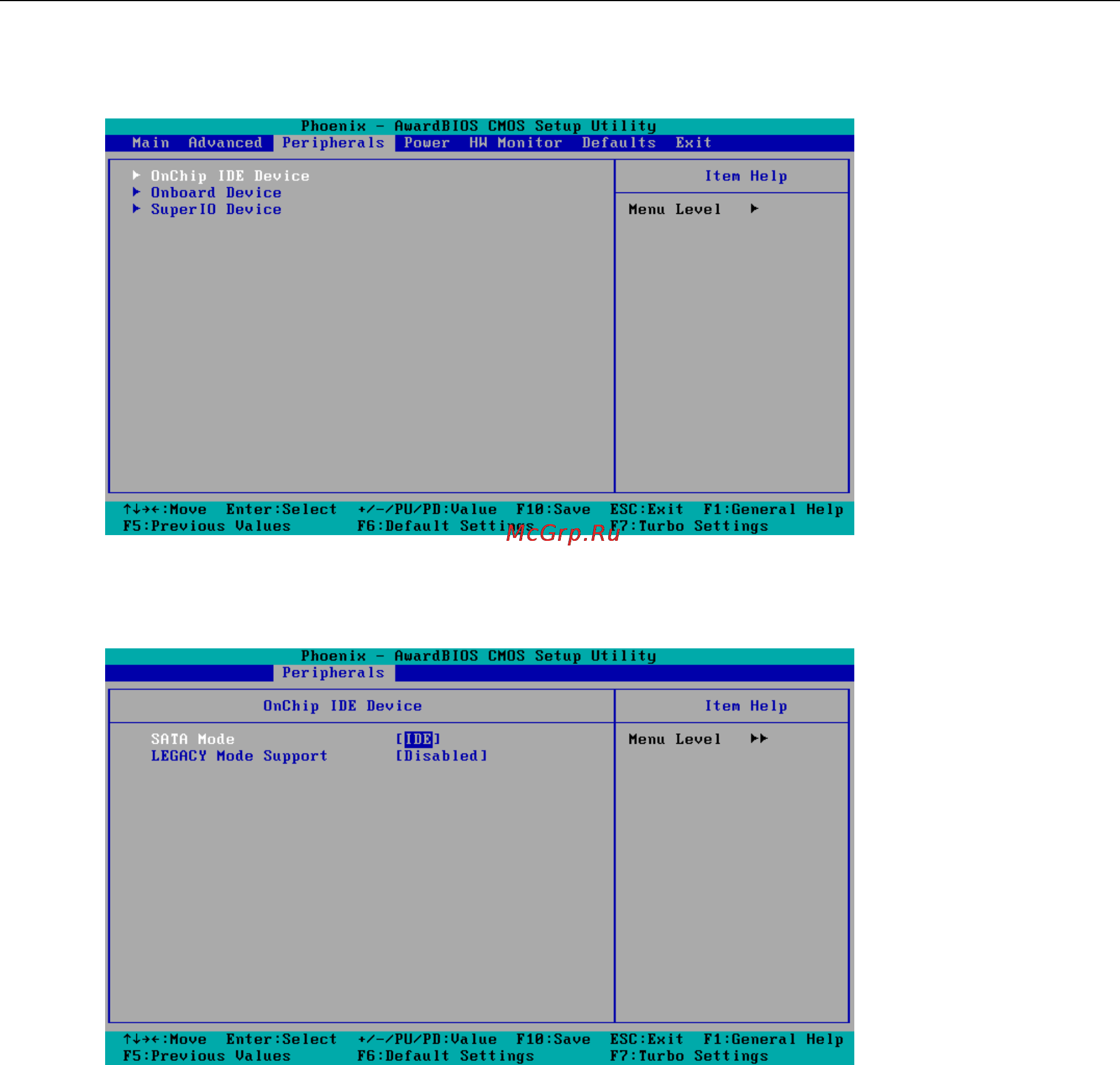

Peripherals
OnChip IDE Device
SATA Mode
This item allows you to select the IDE mode or AHCI mode for your SATA hard disk..
Options: IDE (default), AHCI
Legacy Mode Support
This item allows you to enable or disable the legacy USB device.
Options: Disabled (default), Enabled
