MPC-122-K Hardware On Screen Display Configuration
B-2

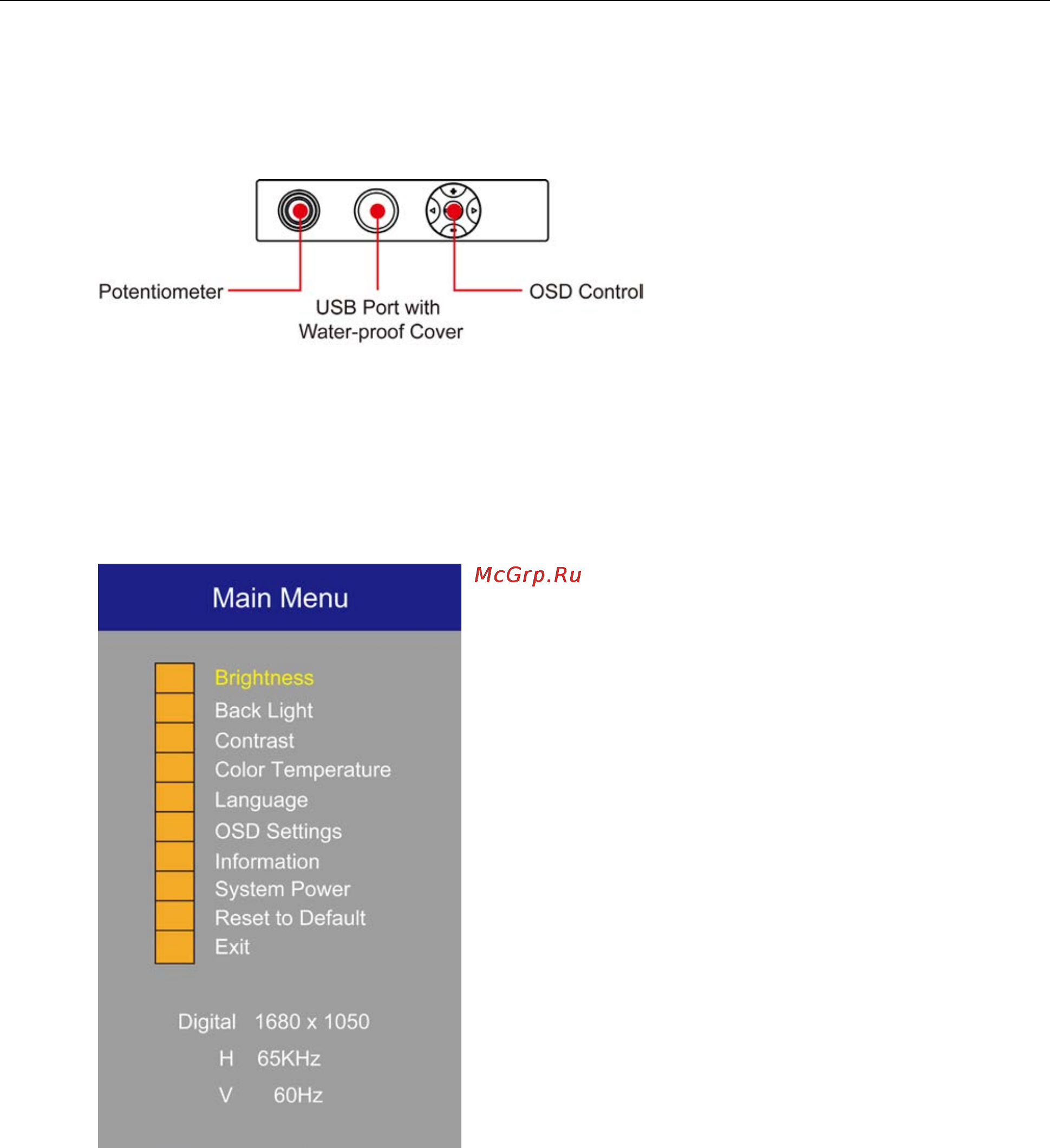

Opening the Configuration Screen
To configure the panel settings, press the OSD Control button and then enter the configuration screen.
Alternatively, you may also press Potentiometer button to start the configuration.
Main Menu
In the Main Menu, you can see the configurations items on the upper part of the screen and the current settings
on the lower part. Use the up arrow or down arrow to select the item you would like to configure. You may also
turn the Potentiometer button rightward or leftward to select.
Brightness
This item allows you to configure two settings: Brightness and Back Light.
Brightness: Press OSD Control button, and then select Brightness item. Use the right/up arrows to increase
the brightness of the panel; use the left/down arrows to decrease the brightness of the panel. You may also
turn the Potentiometer Button rightward to increase the brightness or leftward to decrease the brightness.
Back Light: Press OSD Control button, and then select the Back Light item. Use the right/up arrows to
increase the brightness of the panel; use the left/down arrows to decrease the brightness of the panel. You
may also turn the Potentiometer Button rightward to increase the brightness or leftward to decrease the
brightness.
Exit: Select Exit to leave this configuration.
