MPC-122-K Hardware BIOS Setup
4-5

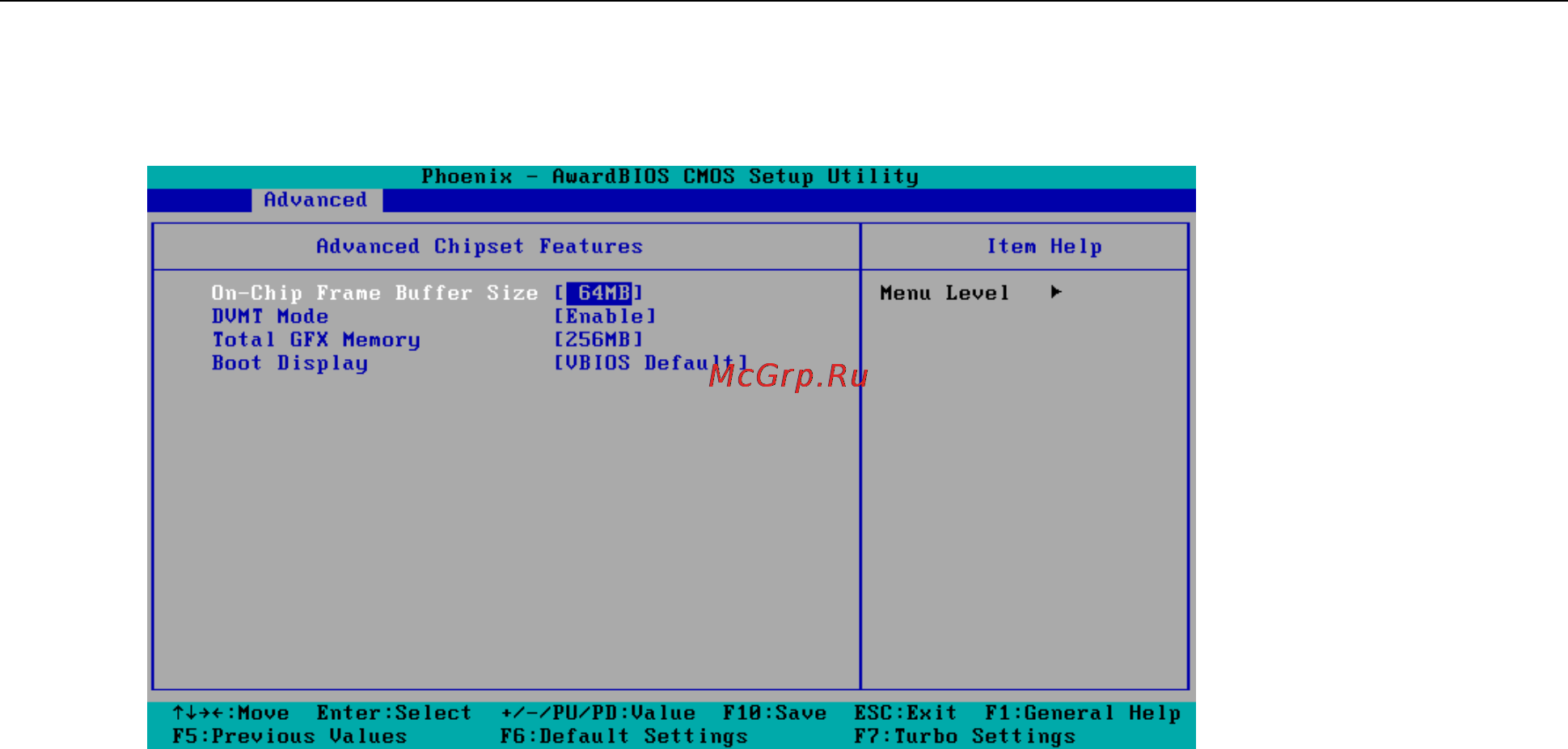

Advanced Chipset Settings
On-chip Frame Buffer Size
This item determines the frame buffer size for the VGA function, and will share the system memory.
Options: 32MB, 64MB (default), 128MB
DVMT Mode
When the Dynamic Video Memory Technology (DVMT) operating mode is set to “Fixed,” the graphics driver will
reserve a fixed portion of the system memory as graphics memory. When set to “DVMT,” the graphics driver
will dynamically allocate system memory as graphics memory, according to system and graphics requirements.
When set to “BOTH,” the graphics driver will allocate a fixed amount of memory as dedicated graphics memory,
as well as allow more system memory to be dynamically allocated between the graphics processor and the
operating system.
Options: Enable (default), Disable
Total GFX Memory
The GFX sets the maximum amount of system memory that can be allocated as graphics memory.
Options: 128 MB, 256 MB (default), MAX.
Boot Display
This item allows you to choose which display interface will be shown when system is booting up. Due to the
display limitation, two displays at most can be shown when booting up. If you select the default option, VBIOS
Default", the displays that have been connected will be used as the default displays.
Options: VBIOS Default (default), CRT, EFP1, EFP2, CRT+EFP1, CRT+EFP2
