Phaser 3010/3040/WorkCentre 3045 Service Xerox Internal Use Only 2-47
Error Troubleshooting
Feed Solenoid
The Feed Roller rotates when the DO-1 (Main Motor) and the DO-6 (Feed Solenoid)
tests are executed simultaneously.
1. Enter Service Diagnostics (page 2-24).
2. Remove the Bypass Tray.
3. Run the Main Motor Full and Feed Solenoid tests.
4. Check that the Feed Roller rotates.
5. Press the Stop button to stop the Feed Solenoid test.
6. Use the Down Arrow to scroll to the motor test and press Stop to stop the
motor test.

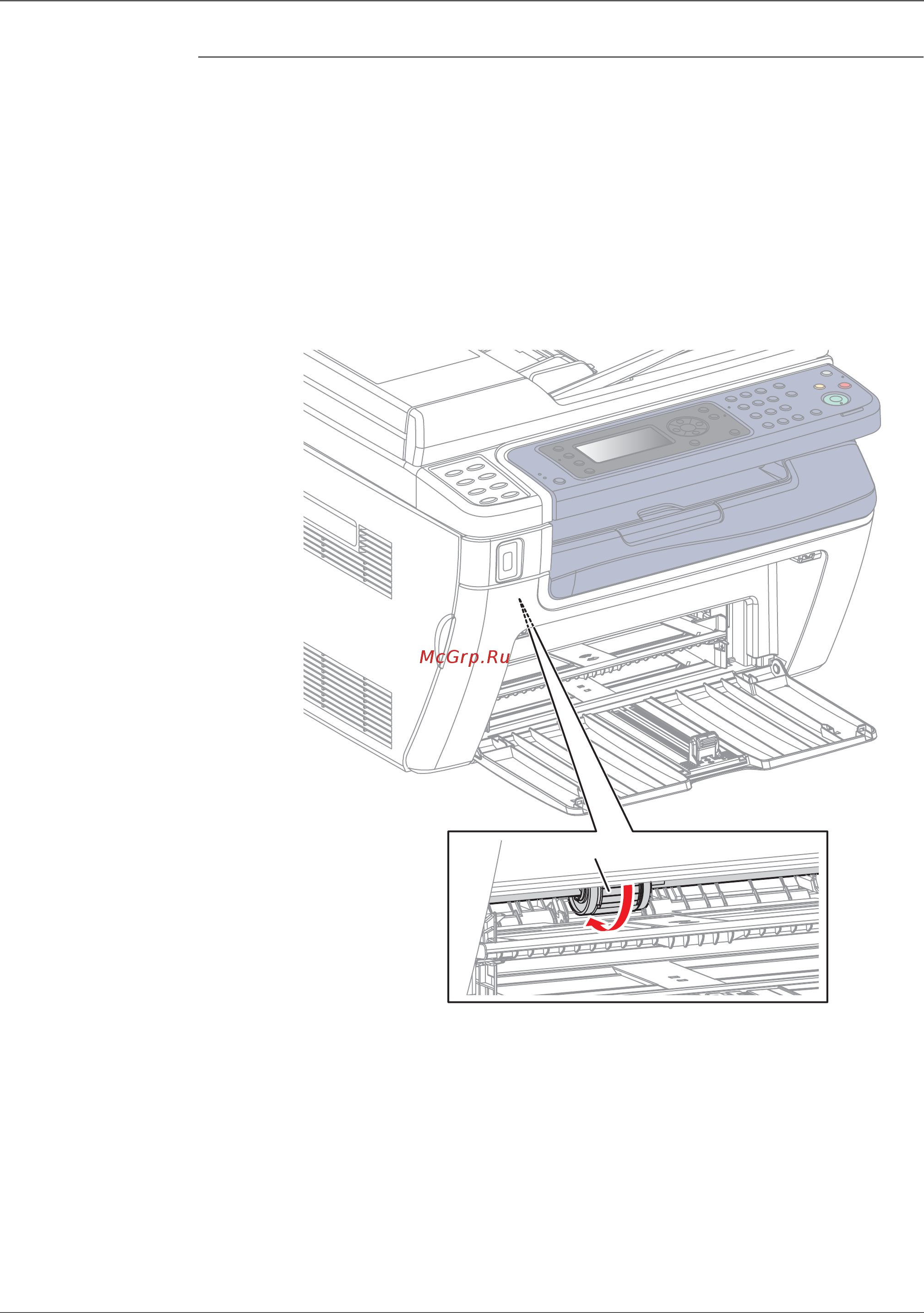

Feed Roller
s3040-162
