4-48 Xerox Internal Use Only Phaser 3010/3040/WorkCentre 3045 Service
Service Parts Disassembly

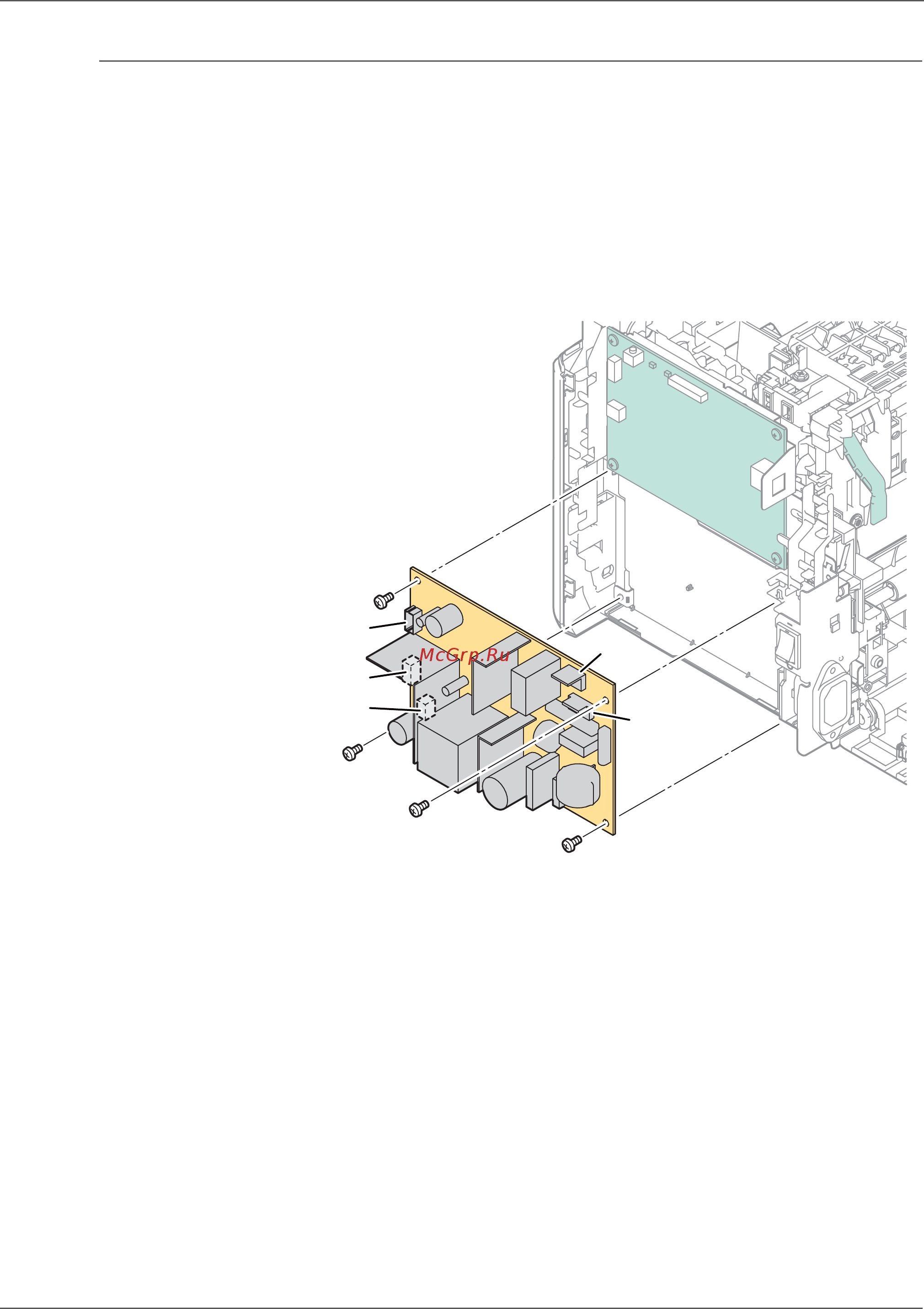

LVPS
PL7.2.11
1. Remove the Main Tray (page 4-13).
2. Remove the Front Cover (page 4-15).
3. Remove the Right Cover (page 4-12).
4. Remove the Top Cover (page 4-7).
5. Disconnect all connections to the LVPS.
6. Remove 4 screws (silver, metal, 6mm) that secure the LVPS.
s3040-051
P/J203
P/J202
P/J204
P/J201
P/J200
