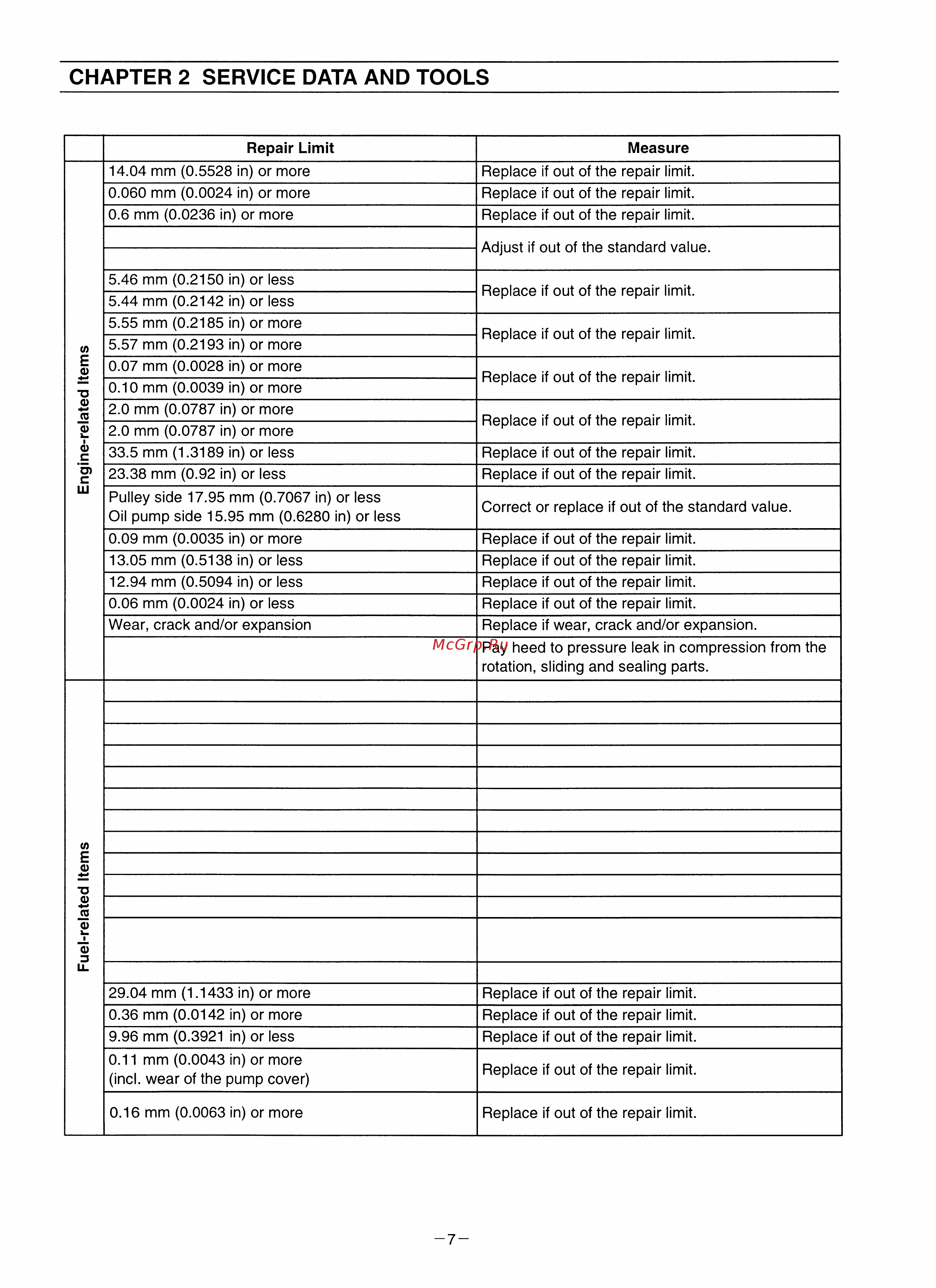

CHAPTER 2 SERVICE DATA AND TOOLS Repair Limit Measure 14 04 mm 0 5528 in or more Replace if out of the repair limit 0 060 mm 0 0024 in or more Replace if out of the repair limit 0 6 mm 0 0236 in or more Replace if out of the repair limit Adjust if out of the standard value 5 46 mm 0 2150 in or less Replace if out of the repair limit 5 44 mm 0 2142 in or less Engine related Items 5 55 mm 0 2185 in or more Replace if out of the repair limit 5 57 mm 0 2193 in or more 0 07 mm 0 0028 in or more Replace if out of the repair limit 0 10 mm 0 0039 in or more 2 0 mm 0 0787 in or more Replace if out of the repair limit 2 0 mm 0 0787 in or more 33 5 mm 1 3189 in or less Replace if out of the repair limit 23 38 mm 0 92 in or less Replace if out of the repair limit Pulley side 17 95 mm 0 7067 in or less Oil pump side 15 95 mm 0 6280 in or less Correct or replace if out of the standard value 0 09 mm 0 0035 in or more Replace if out of the repair limit 13 05 mm 0 5138 in or less Replace if out of the repair limit 12 94 mm 0 5094 in or less Replace if out of the repair limit 0 06 mm 0 0024 in or less Replace if out of the repair limit Wear crack and or expansion Replace if wear crack and or expansion Fuel related Items Pay heed to pressure leak in compression from the rotation sliding and sealing parts 29 04 mm 1 1433 in or more Replace if out of the repair limit 0 36 mm 0 0142 in or more Replace if out of the repair limit 9 96 mm 0 3921 in or less Replace if out of the repair limit 0 11 mm 0 0043 in or more incl wear of the pump cover Replace if out of the repair limit 0 16 mm 0 0063 in or more Replace if out of the repair limit 7
