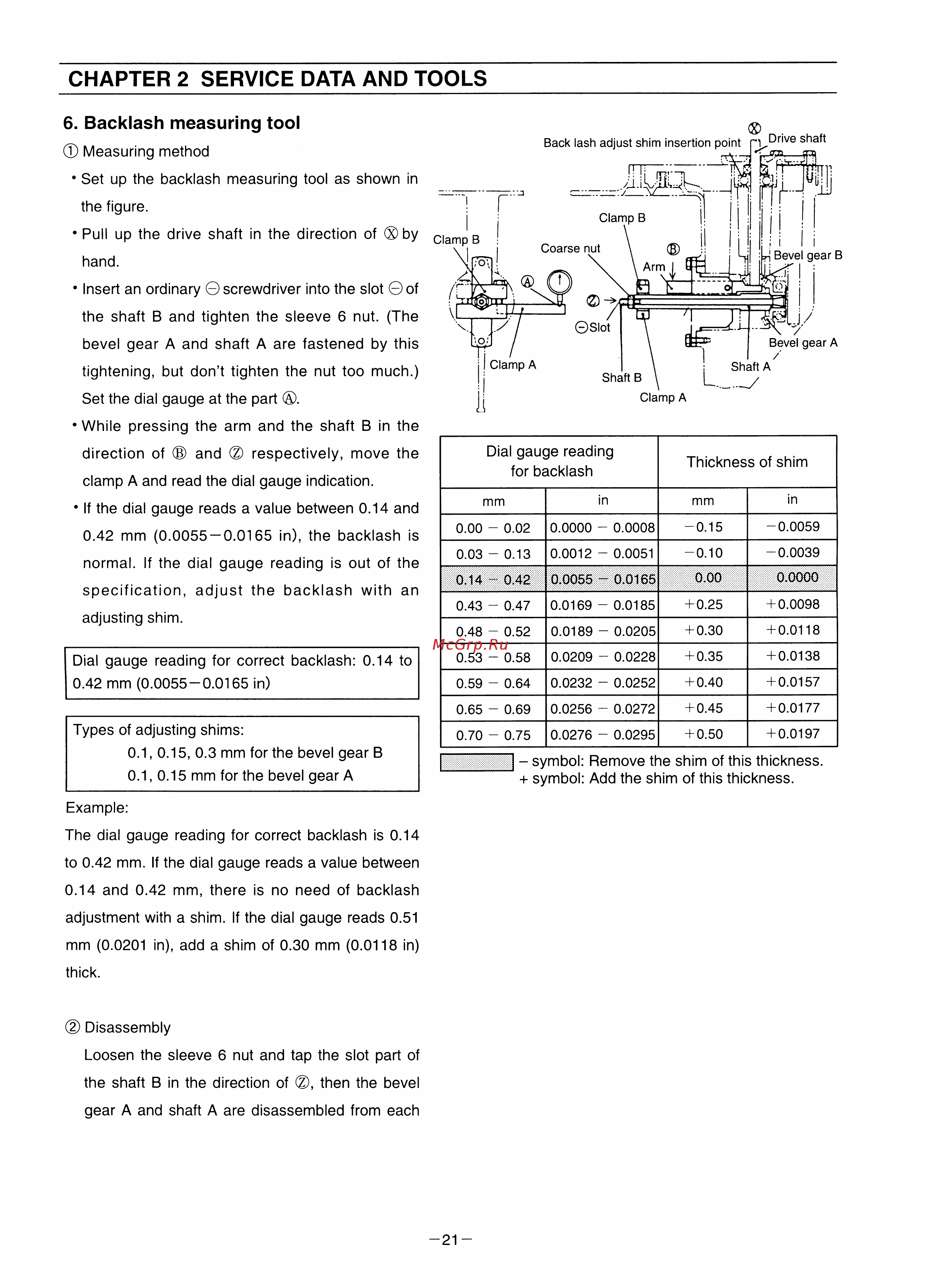

CHAPTER 2 SERVICE DATA AND TOOLS 6 Backlash measuring tool Measuring method Set up the backlash measuring tool as shown in the figure Pull up the drive shaft in the direction of by hand Insert an ordinary screwdriver into the slot of the shaft B and tighten the sleeve 6 nut The bevel gear A and shaft A are fastened by this tightening but don t tighten the nut too much Set the dial gauge at the part While pressing the arm and the shaft B in the direction of and respectively move Dial gauge reading for backlash the clamp A and read the dial gauge indication in mm If the dial gauge reads a value between 0 14 and Thickness of shim in mm 0 00 0 02 0 0000 0 0008 0 15 0 0059 0 03 0 13 0 0012 0 0051 0 10 0 0039 0J4 042 0 0055 0 0165 0 00 0 43 0 47 0 0169 0 0185 0 25 0 0098 0 48 0 52 0 0189 0 0205 0 30 0 0118 Dial gauge reading for correct backlash 0 14 to 0 53 0 58 0 0209 0 0228 0 35 0 0138 0 42 mm 0 0055 0 0165 in 0 59 0 64 0 0232 0 0252 0 40 0 0157 0 65 0 69 0 0256 0 0272 0 45 0 0177 0 70 0 75 0 0276 0 0295 0 50 0 0197 0 42 mm 0 0055 0 0165 in the backlash is normal If the dial gauge reading is out of the specification adjust the backlash with an adjusting shim Types of adjusting shims 0 1 0 15 0 3 mm for the bevel gear B 0 1 0 15 mm for the bevel gear A Example The dial gauge reading for correct backlash is 0 14 to 0 42 mm If the dial gauge reads a value between 0 14 and 0 42 mm there is no need of backlash adjustment with a shim If the dial gauge reads 0 51 mm 0 0201 in add a shim of 0 30 mm 0 0118 in thick Disassembly Loosen the sleeve 6 nut and tap the slot part of the shaft B in the direction of then the bevel gear A and shaft A are disassembled from each 21 0 0000 symbol Remove the shim of this thickness symbol Add the shim of this thickness
