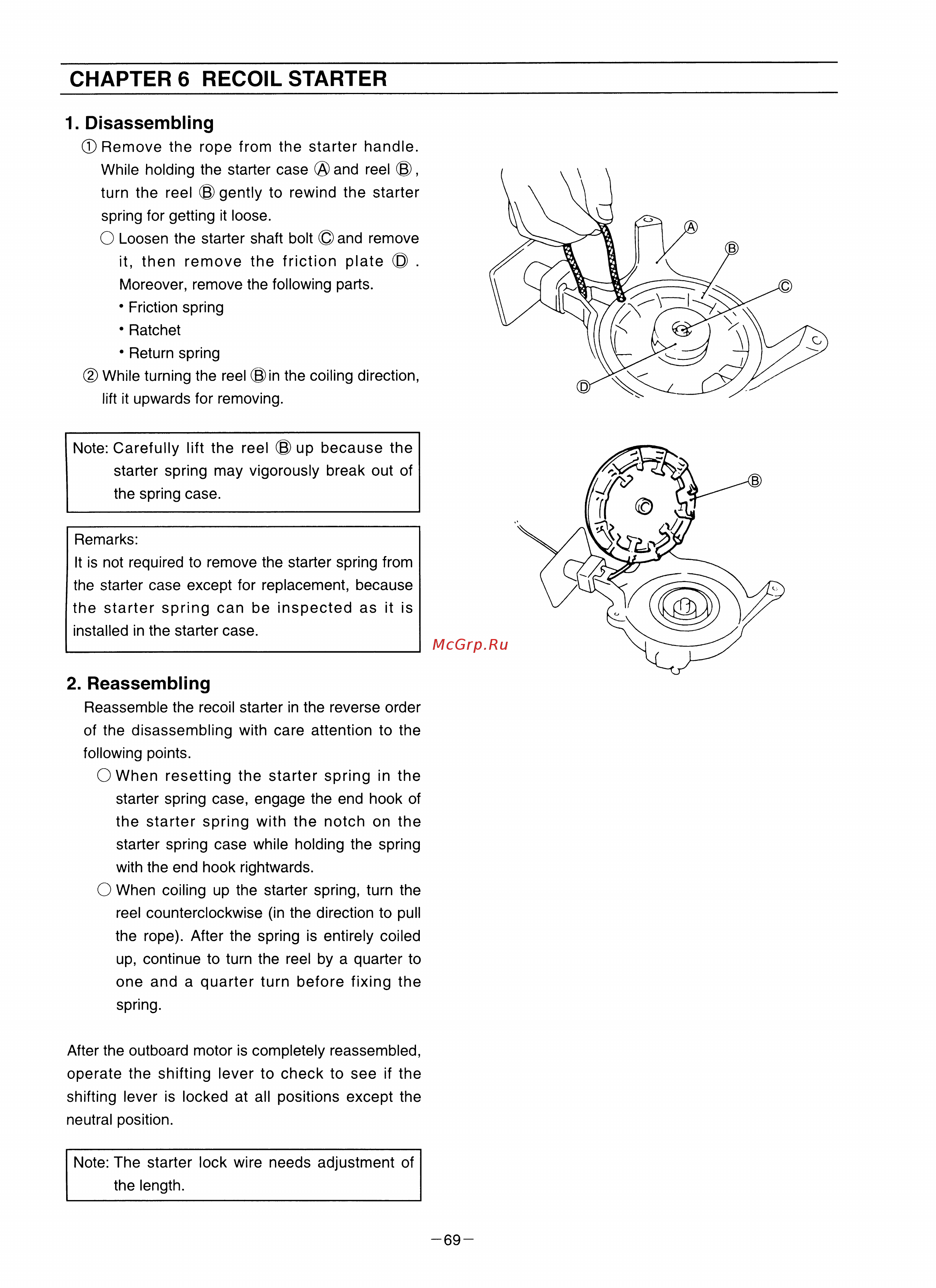

CHAPTERS RECOIL STARTER 1 Disassembling Remove the rope from the starter handle While holding the starter case and reel turn the reel gently to rewind the starter spring for getting it loose O Loosen the starter shaft bolt and remove it then remove the friction plate Moreover remove the following parts Friction spring Ratchet Return spring While turning the reel in the coiling direction lift it upwards for removing Note Carefully lift the reel up because the starter spring may vigorously break out of the spring case Remarks It is not required to remove the starter spring from the starter case except for replacement because the starter spring can be inspected as it is installed in the starter case 2 Reassembling Reassemble the recoil starter in the reverse order of the disassembling with care attention to the following points O When resetting the starter spring in the starter spring case engage the end hook of the starter spring with the notch on the starter spring case while holding the spring with the end hook rightwards O When coiling up the starter spring turn the reel counterclockwise in the direction to pull the rope After the spring is entirely coiled up continue to turn the reel by a quarter to one and a quarter turn before fixing the spring After the outboard motor is completely reassembled operate the shifting lever to check to see if the shifting lever is locked at all positions except the neutral position Note The starter lock wire needs adjustment of the length 69
