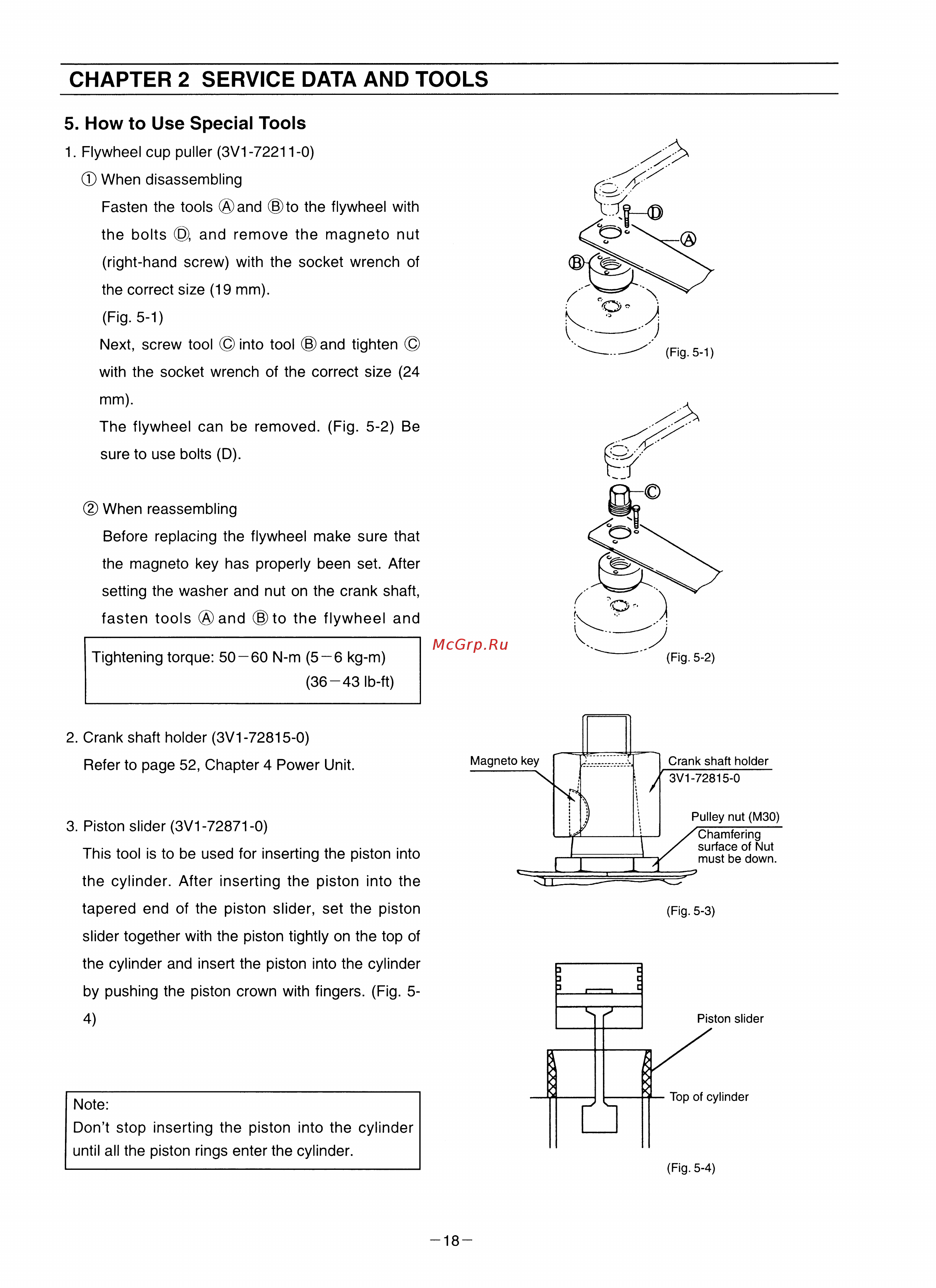

CHAPTER 2 SERVICE DATA AND TOOLS 5 How to Use Special Tools 1 Flywheel cup puller 3V1 72211 0 When disassembling Fasten the tools and to the flywheel with the bolts and remove the magneto nut right hand screw with the socket wrench of the correct size 19 mm Fig 5 1 Next screw tool into tool and tighten with the socket wrench of the correct size 24 mm The flywheel can be removed Fig 5 2 Be sure to use bolts D When reassembling Before replacing the flywheel make sure that the magneto key has properly been set After setting the washer and nut on the crank shaft fasten tools A and to the flywheel and Tightening torque 50 60 N m 5 6 kg m 36 43 Ib ft 2 Crank shaft holder 3V1 72815 0 Refer to page 52 Chapter 4 Power Unit 3 Piston slider 3V1 72871 0 This tool is to be used for inserting the piston into the cylinder After inserting the piston into the tapered end of the piston slider set the piston slider together with the piston tightly on the top of the cylinder and insert the piston into the cylinder by pushing the piston crown with fingers Fig 54 Note Don t stop inserting the piston into the cylinder until all the piston rings enter the cylinder 18
