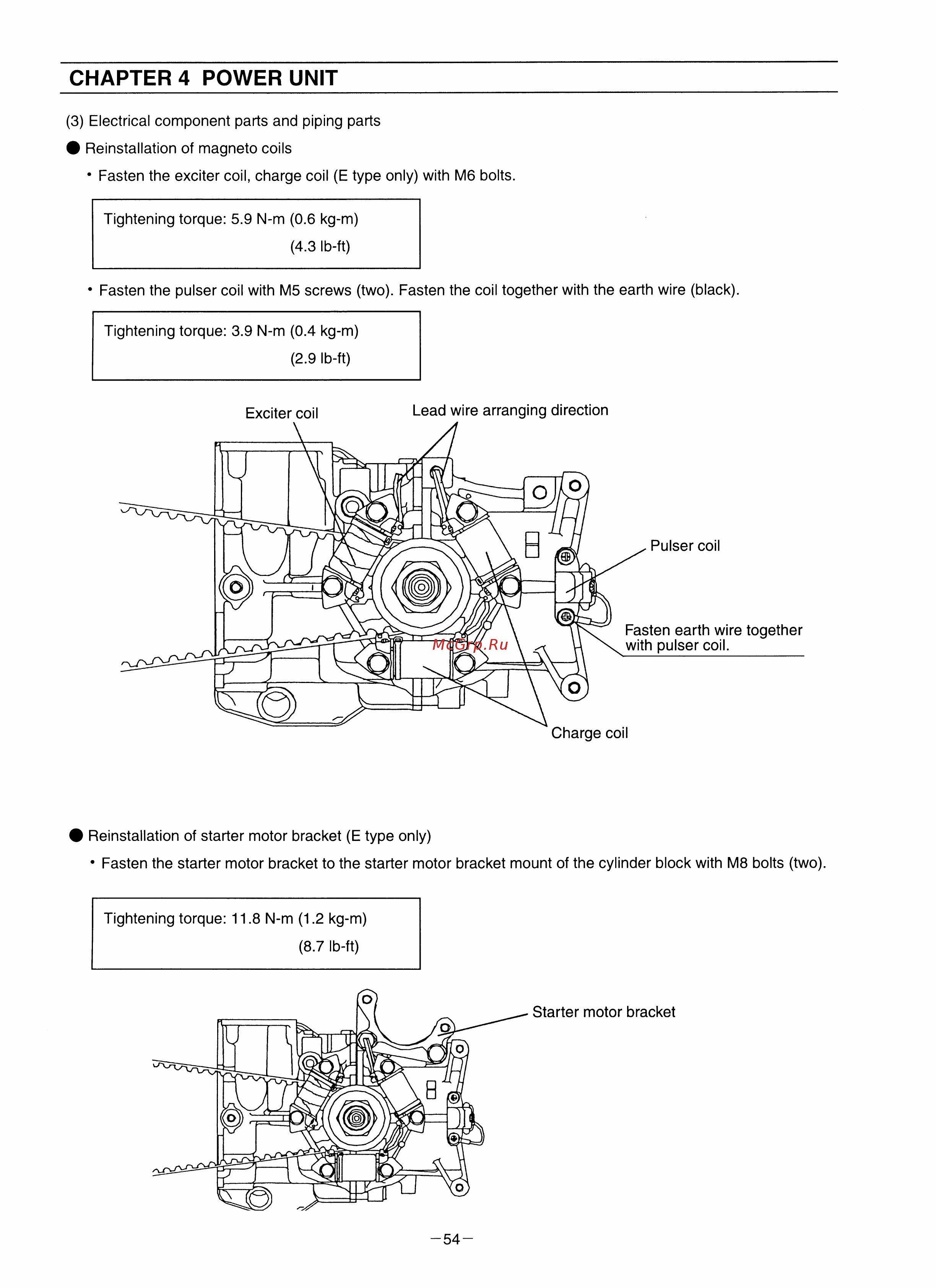

CHAPTER 4 POWER UNIT 3 Electrical component parts and piping parts Reinstallation of magneto coils Fasten the exciter coil charge coil E type only with M6 bolts Tightening torque 5 9 N m 0 6 kg m 4 3 Ib ft Fasten the pulser coil with M5 screws two Fasten the coil together with the earth wire black Tightening torque 3 9 N m 0 4 kg m 2 9 Ib ft Exciter coil Lead wire arranging direction Pulser coil Fasten earth wire together with pulser coil Charge coil Reinstallation of starter motor bracket E type only Fasten the starter motor bracket to the starter motor bracket mount of the cylinder block with M8 bolts two Tightening torque 11 8 N m 1 2 kg m 8 7 Ib ft Starter motor bracket 54
