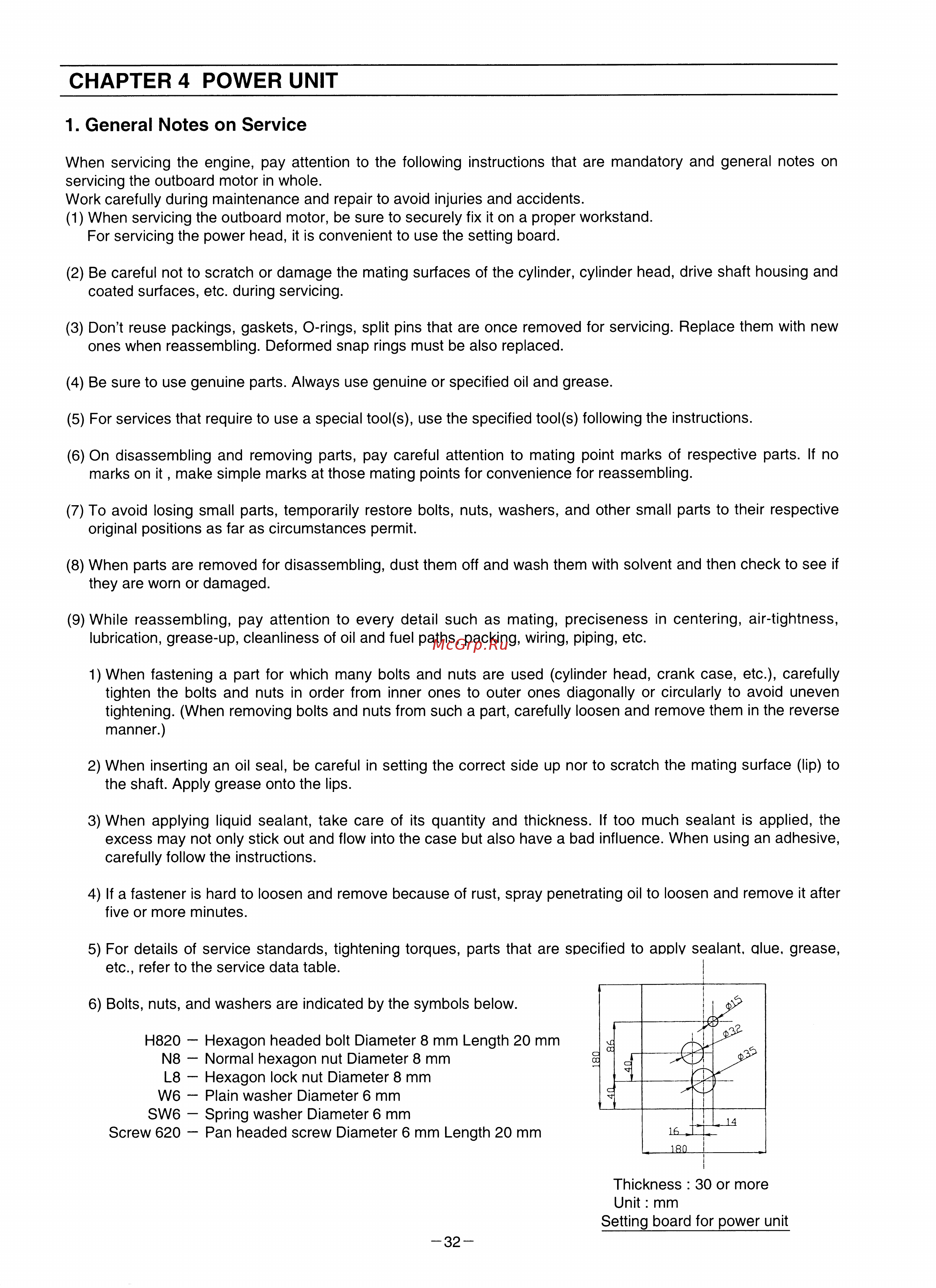

CHAPTER 4 POWER UNIT 1 General Notes on Service When servicing the engine pay attention to the following instructions that are mandatory and general notes on servicing the outboard motor in whole Work carefully during maintenance and repair to avoid injuries and accidents 1 When servicing the outboard motor be sure to securely fix it on a proper workstand For servicing the power head it is convenient to use the setting board 2 Be careful not to scratch or damage the mating surfaces of the cylinder cylinder head drive shaft housing and coated surfaces etc during servicing 3 Don t reuse packings gaskets O rings split pins that are once removed for servicing Replace them with new ones when reassembling Deformed snap rings must be also replaced 4 Be sure to use genuine parts Always use genuine or specified oil and grease 5 For services that require to use a special tool s use the specified tool s following the instructions 6 On disassembling and removing parts pay careful attention to mating point marks of respective parts If no marks on it make simple marks at those mating points for convenience for reassembling 7 To avoid losing small parts temporarily restore bolts nuts washers and other small parts to their respective original positions as far as circumstances permit 8 When parts are removed for disassembling dust them off and wash them with solvent and then check to see if they are worn or damaged 9 While reassembling pay attention to every detail such as mating preciseness in centering air tightness lubrication grease up cleanliness of oil and fuel paths packing wiring piping etc 1 When fastening a part for which many bolts and nuts are used cylinder head crank case etc carefully tighten the bolts and nuts in order from inner ones to outer ones diagonally or circularly to avoid uneven tightening When removing bolts and nuts from such a part carefully loosen and remove them in the reverse manner 2 When inserting an oil seal be careful in setting the correct side up nor to scratch the mating surface lip to the shaft Apply grease onto the lips 3 When applying liquid sealant take care of its quantity and thickness If too much sealant is applied the excess may not only stick out and flow into the case but also have a bad influence When using an adhesive carefully follow the instructions 4 If a fastener is hard to loosen and remove because of rust spray penetrating oil to loosen and remove it after five or more minutes 5 For details of service standards tightening torques parts that are specified to aoolv sealant qlue grease etc refer to the service data table 6 Bolts nuts and washers are indicated by the symbols below H820 Hexagon headed bolt Diameter 8 mm Length 20 mm N8 Normal hexagon nut Diameter 8 mm L8 Hexagon lock nut Diameter 8 mm W6 Plain washer Diameter 6 mm SW6 Spring washer Diameter 6 mm Screw 620 Pan headed screw Diameter 6 mm Length 20 mm Thickness 30 or more Unit mm Setting board for power unit 32
