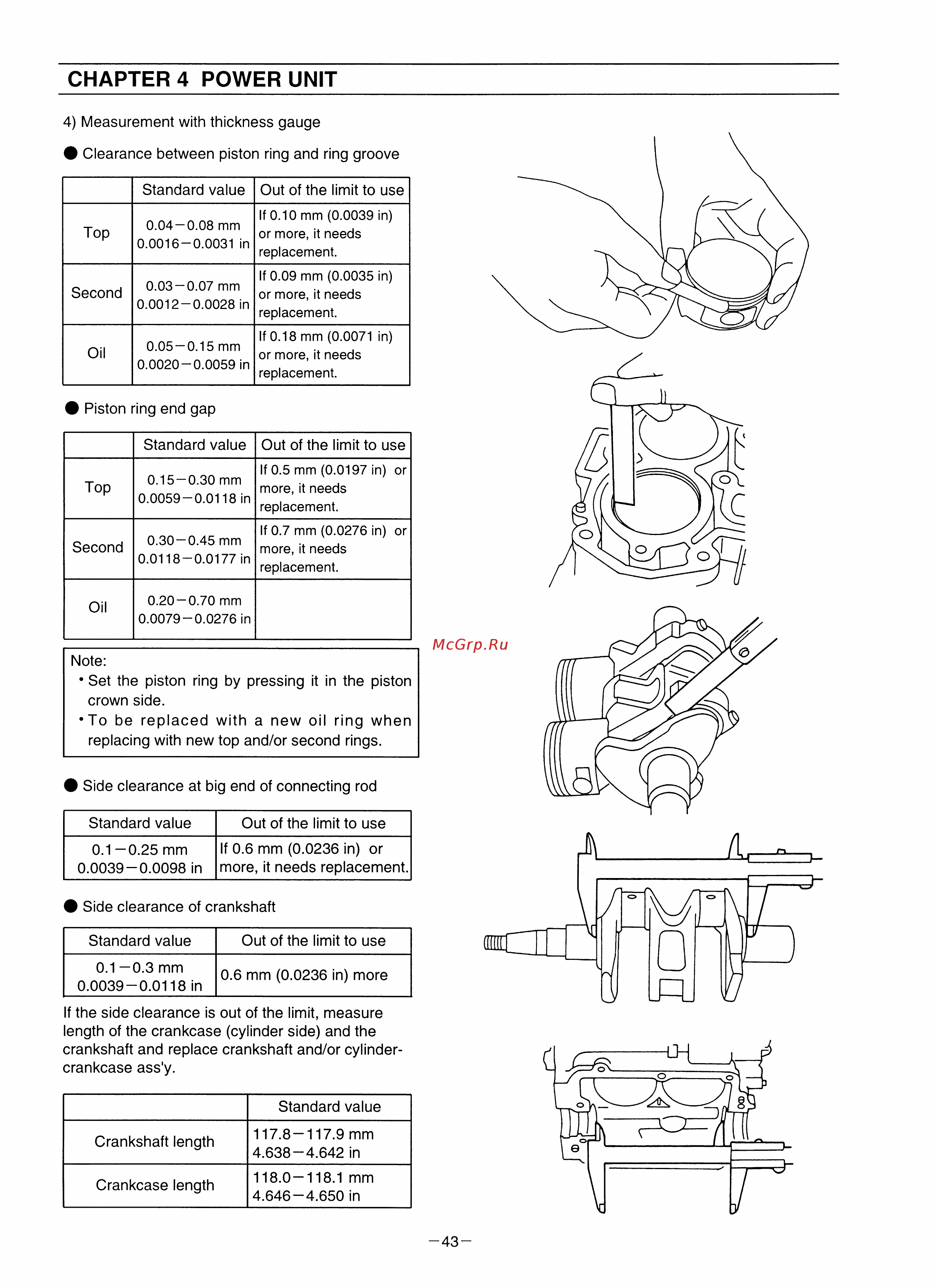

CHAPTER 4 POWER UNIT 4 Measurement with thickness gauge Clearance between piston ring and ring groove Standard value Top Second Oil Out of the limit to use If 0 10 mm 0 0039 in 0 04 0 08 mm or more it needs 0 0016 0 0031 in replacement If 0 09 mm 0 0035 in 0 03 0 07 mm or more it needs 0 0012 0 0028 in replacement If 0 18 mm 0 0071 in 0 05 0 15 mm or more it needs 0 0020 0 0059 in replacement Piston ring end gap Standard value Top Second Oil Out of the limit to use If 0 5 mm 0 0197 in or 0 15 0 30 mm more it needs 0 0059 0 0118 in replacement If 0 7 mm 0 0276 in or 0 30 0 45 mm more it needs 0 0118 0 0177 in replacement 0 20 0 70 mm 0 0079 0 0276 in Note Set the piston ring by pressing it in the piston crown side To be replaced with a new oil ring when replacing with new top and or second rings Side clearance at big end of connecting rod Standard value Out of the limit to use 0 1 0 25 mm 0 0039 0 0098 in If 0 6 mm 0 0236 in or more it needs replacement Side clearance of crankshaft Standard value 0 1 0 3 mm 0 0039 0 0118 in Out of the limit to use 0 6 mm 0 0236 in more If the side clearance is out of the limit measure length of the crankcase cylinder side and the crankshaft and replace crankshaft and or cylinder crankcase ass y Standard value Crankshaft length 117 8 117 9 mm 4 638 4 642 in Crankcase length 118 0 118 1 mm 4 646 4 650 in 43
