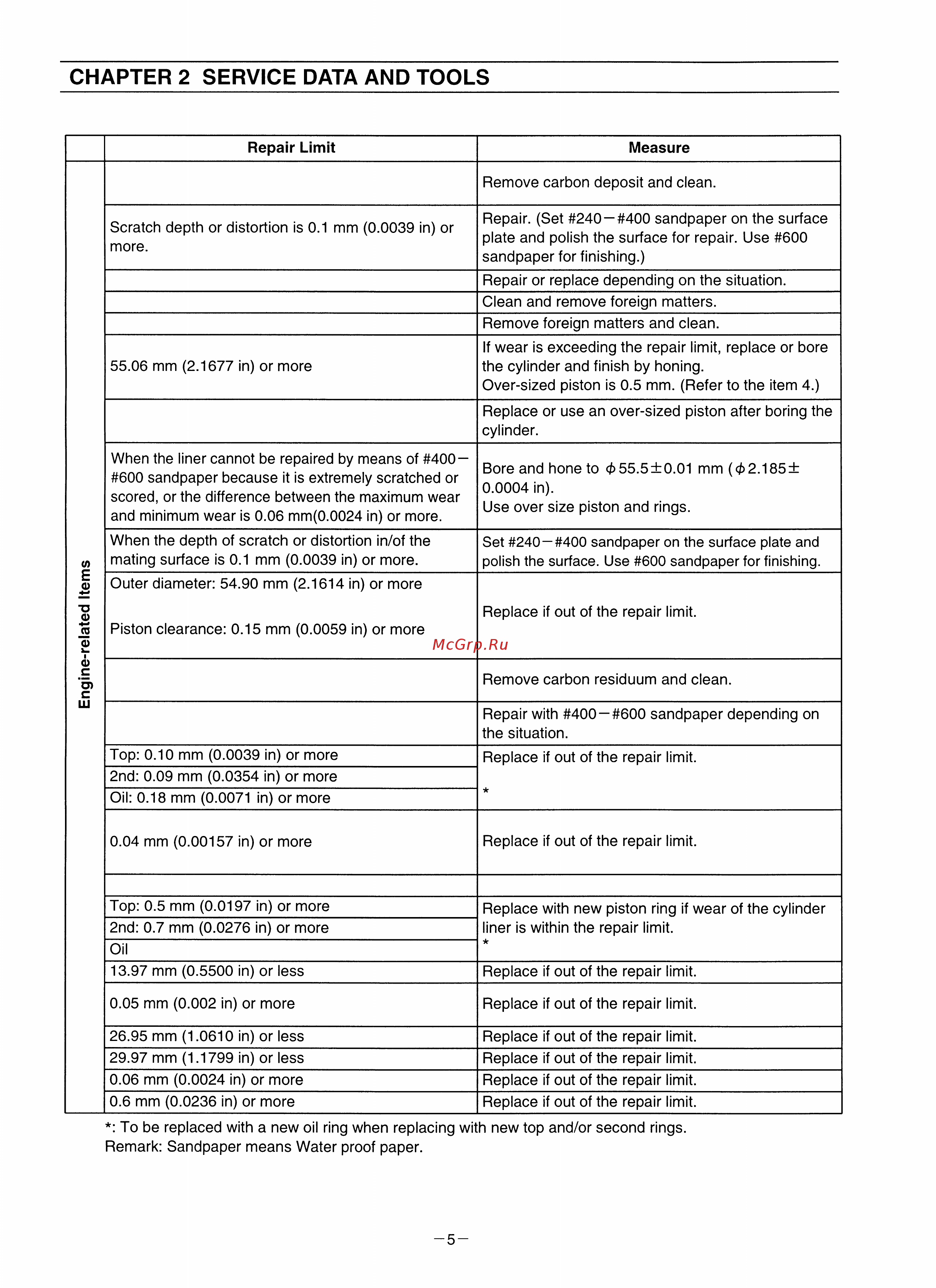

CHAPTER 2 SERVICE DATA AND TOOLS Repair Limit Measure Remove carbon deposit and clean Repair Set 240 400 sandpaper on the surface plate and polish the surface for repair Use 600 sandpaper for finishing Scratch depth or distortion is 0 1 mm 0 0039 in or more Repair or replace depending on the situation Clean and remove foreign matters Remove foreign matters and clean If wear is exceeding the repair limit replace or bore the cylinder and finish by honing Over sized piston is 0 5 mm Refer to the item 4 55 06 mm 2 1677 in or more Engine related Items Replace or use an over sized piston after boring the cylinder When the liner cannot be repaired by means of 400 600 sandpaper because it is extremely scratched or scored or the difference between the maximum wear and minimum wear is 0 06 mm 0 0024 in or more Bore and hone to f 55 5 0 01 mm t 2 185 0 0004 in Use over size piston and rings When the depth of scratch or distortion in of the mating surface is 0 1 mm 0 0039 in or more Set 240 400 sandpaper on the surface plate and polish the surface Use 600 sandpaper for finishing Outer diameter 54 90 mm 2 1614 in or more Replace if out of the repair limit Piston clearance 0 15 mm 0 0059 in or more Remove carbon residuum and clean Repair with 400 600 sandpaper depending on the situation Top 0 10 mm 0 0039 in or more Replace if out of the repair limit 2nd 0 09 mm 0 0354 in or more Oil 0 18 mm 0 0071 in or more 0 04 mm 0 00157 in or more Replace if out of the repair limit Top 0 5 mm 0 0197 in or more Replace with new piston ring if wear of the cylinder liner is within the repair limit 2nd 0 7 mm 0 0276 in or more Oil 13 97 mm 0 5500 in or less Replace if out of the repair limit 0 05 mm 0 002 in or more Replace if out of the repair limit 26 95 mm 1 0610 in or less Replace if out of the repair limit 29 97 mm 1 1799 in or less Replace if out of the repair limit 0 06 mm 0 0024 in or more Replace if out of the repair limit 0 6 mm 0 0236 in or more Replace if out of the repair limit To be replaced with a new oil ring when replacing with new top and or second rings Remark Sandpaper means Water proof paper 5
