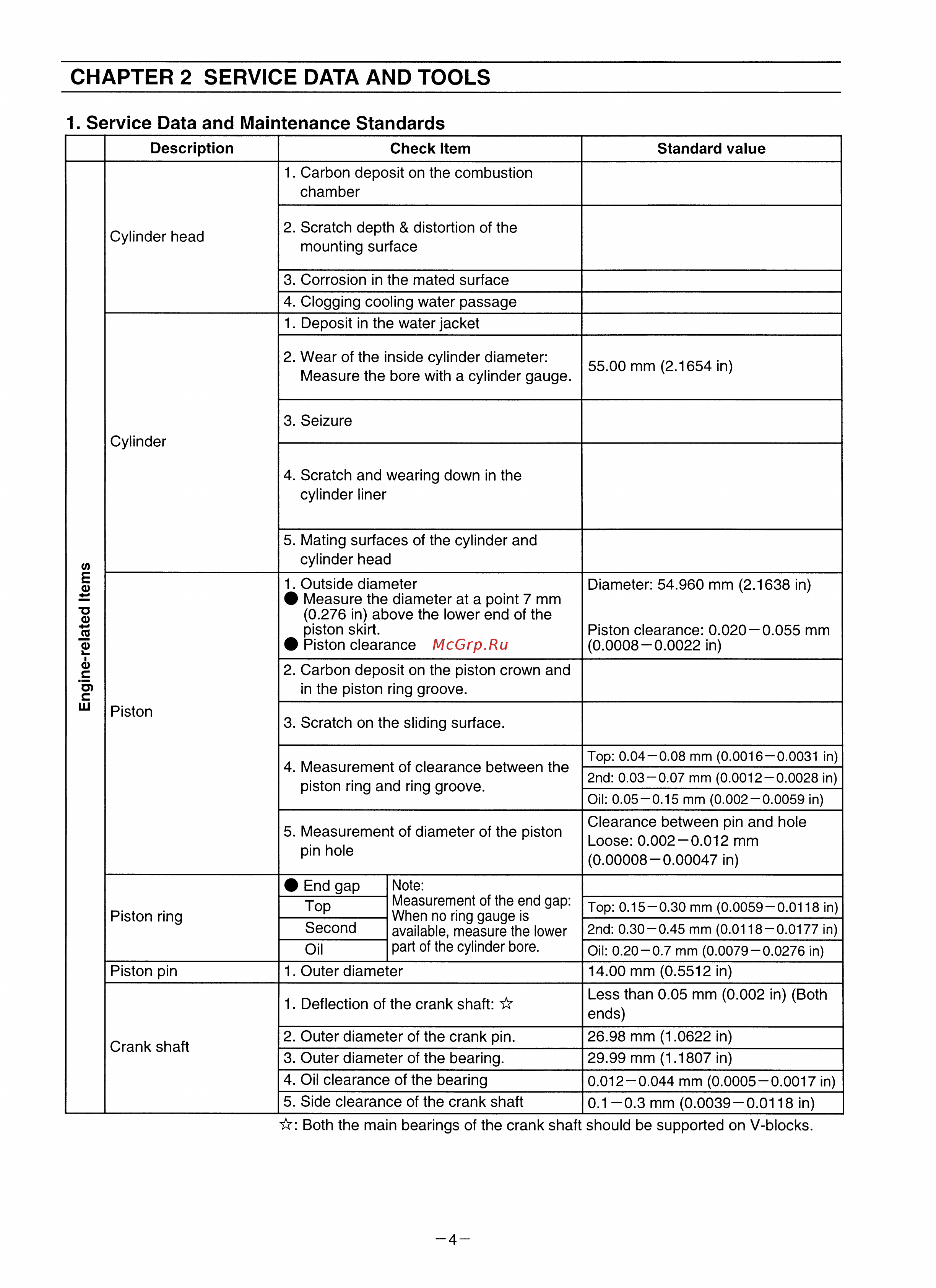

CHAPTER 2 SERVICE DATA AND TOOLS 1 Service Data and Maintenance Standards Description Check Item Standard value 1 Carbon deposit on the combustion chamber Cylinder head 2 Scratch depth distortion of the mounting surface 3 Corrosion in the mated surface 4 Clogging cooling water passage 1 Deposit in the water jacket 2 Wear of the inside cylinder diameter Measure the bore with a cylinder gauge 55 00 mm 2 1654 in 3 Seizure Cylinder 4 Scratch and wearing down in the cylinder liner Engine related Items 5 Mating surfaces of the cylinder and cylinder head 1 Outside diameter Measure the diameter at a point 7 mm 0 276 in above the lower end of the piston skirt Piston clearance Diameter 54 960 mm 2 1638 in Piston clearance 0 020 0 055 mm 0 0008 0 0022 in 2 Carbon deposit on the piston crown and in the piston ring groove Piston 3 Scratch on the sliding surface 4 Measurement of clearance between the piston ring and ring groove 5 Measurement of diameter of the piston pin hole Piston ring End gap Top Second Oil Piston pin Crank shaft Note Measurement of the end gap When no ring gauge is available measure the lower part of the cylinder bore 1 Outer diameter Top 0 04 0 08 mm 0 0016 0 0031 in 2nd 0 03 0 07 mm 0 0012 0 0028 in Oil 0 05 0 15 mm 0 002 0 0059 in Clearance between pin and hole Loose 0 002 0 012 mm 0 00008 0 00047 in Top 0 15 0 30 mm 0 0059 0 0118 in 2nd 0 30 0 45 mm 0 0118 0 0177 in Oil 0 20 0 7 mm 0 0079 0 0276 in 14 00 mm 0 5512 in 1 Deflection of the crank shaft Less than 0 05 mm 0 002 in Both ends 2 Outer diameter of the crank pin 26 98 mm 1 0622 in 3 Outer diameter of the bearing 29 99 mm 1 1807 in 4 Oil clearance of the bearing 0 012 0 044 mm 0 0005 0 0017 in 5 Side clearance of the crank shaft 0 1 0 3 mm 0 0039 0 0118 in Both the main bearings of the crank shaft should be supported on V blocks 4
