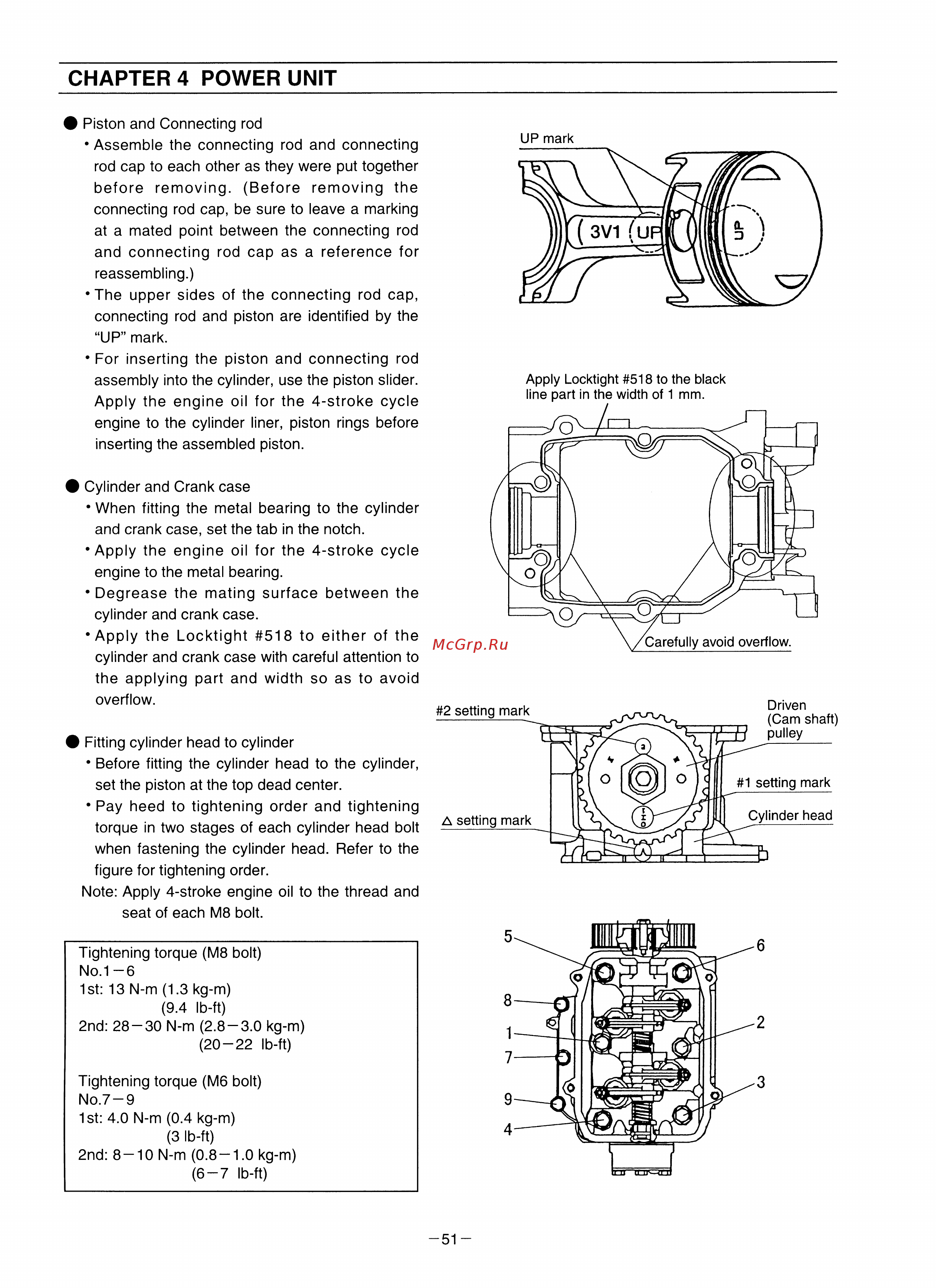

CHAPTER 4 POWER UNIT Piston and Connecting rod Assemble the connecting rod and connecting rod cap to each other as they were put together before removing Before removing the connecting rod cap be sure to leave a marking at a mated point between the connecting rod and connecting rod cap as a reference for reassembling The upper sides of the connecting rod cap connecting rod and piston are identified by the UP mark For inserting the piston and connecting rod assembly into the cylinder use the piston slider Apply the engine oil for the 4 stroke Apply Locktight 518 to the black line part in the width of 1 mm cycle engine to the cylinder liner piston rings before inserting the assembled piston Cylinder and Crank case When fitting the metal bearing to the cylinder and crank case set the tab in the notch Apply the engine oil for the 4 stroke cycle engine to the metal bearing Degrease the mating surface between the cylinder and crank case Apply the Locktight 518 to either of the cylinder and crank case with careful attention to the applying part and width so as to avoid overflow Fitting cylinder head to cylinder Before fitting the cylinder head to the cylinder set the piston at the top dead center Pay heed to tightening order and tightening torque in two stages of each cylinder head bolt when fastening the cylinder head Refer to the figure for tightening order Note Apply 4 stroke engine oil to the thread and seat of each M8 bolt Tightening torque M8 bolt No 1 6 1st 13 N m 1 3 kg m 9 4 Ib ft 2nd 28 30 N m 2 8 3 0 kg m 20 22 Ib ft Tightening torque M6 bolt No 7 9 1st 4 0 N m 0 4 kg m 3 Ib ft 2nd 8 10 N m 0 8 1 0 kg m 6 7 Ib ft 51
