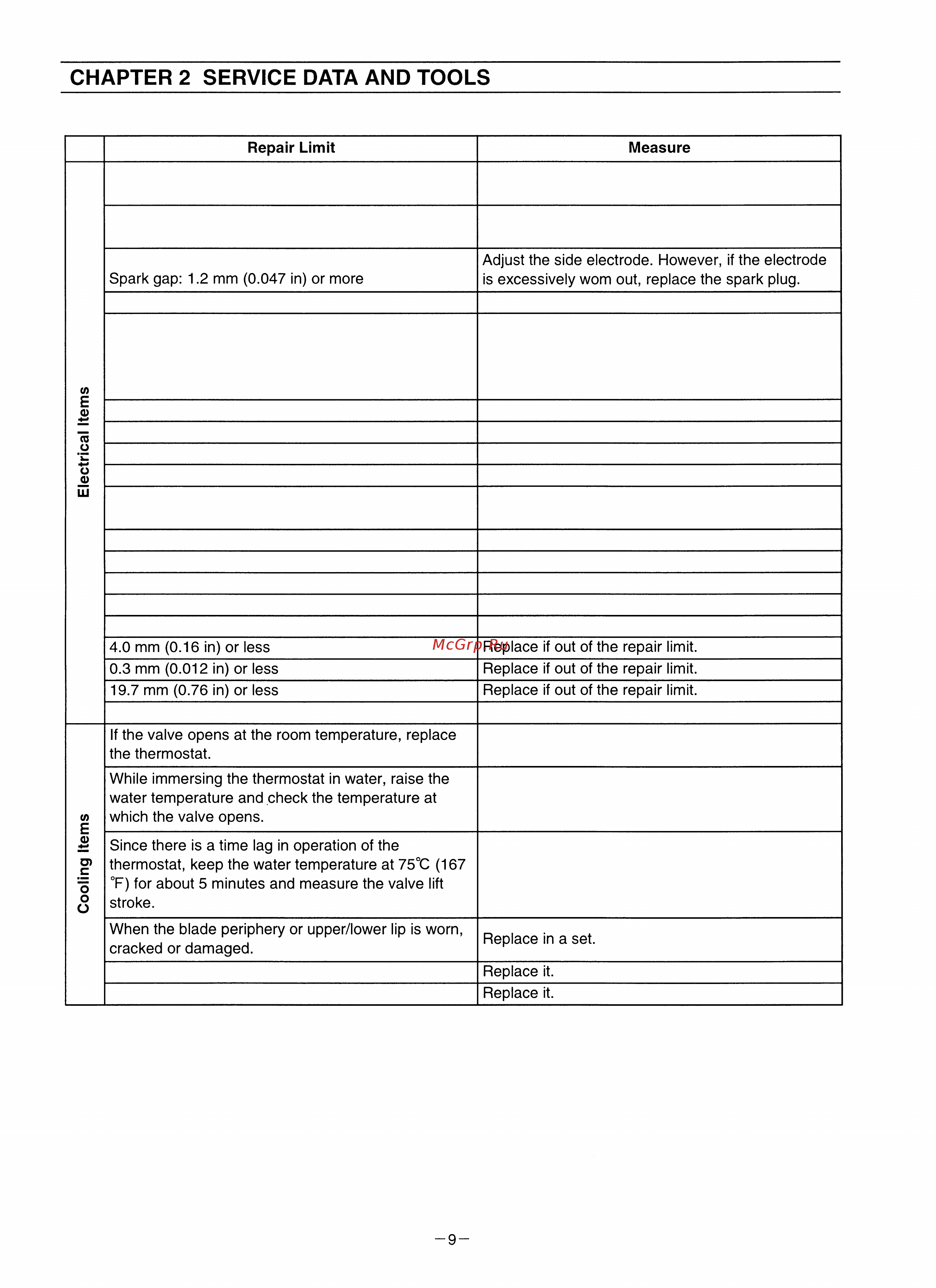

CHAPTER 2 SERVICE DATA AND TOOLS Repair Limit Measure Adjust the side electrode However if the electrode is excessively worn out replace the spark plug 4 0 mm 0 16 in or less Replace if out of the repair limit 0 3 mm 0 012 in or less Replace if out of the repair limit 19 7 mm 0 76 in or less Replace if out of the repair limit Electrical Items Spark gap 1 2 mm 0 047 in or more Cooling Items If the valve opens at the room temperature replace the thermostat While immersing the thermostat in water raise the water temperature and check the temperature at which the valve opens Since there is a time lag in operation of the thermostat keep the water temperature at 75 C 167 F for about 5 minutes and measure the valve lift stroke When the blade periphery or upper lower lip is worn cracked or damaged Replace in a set Replace it Replace it 9
