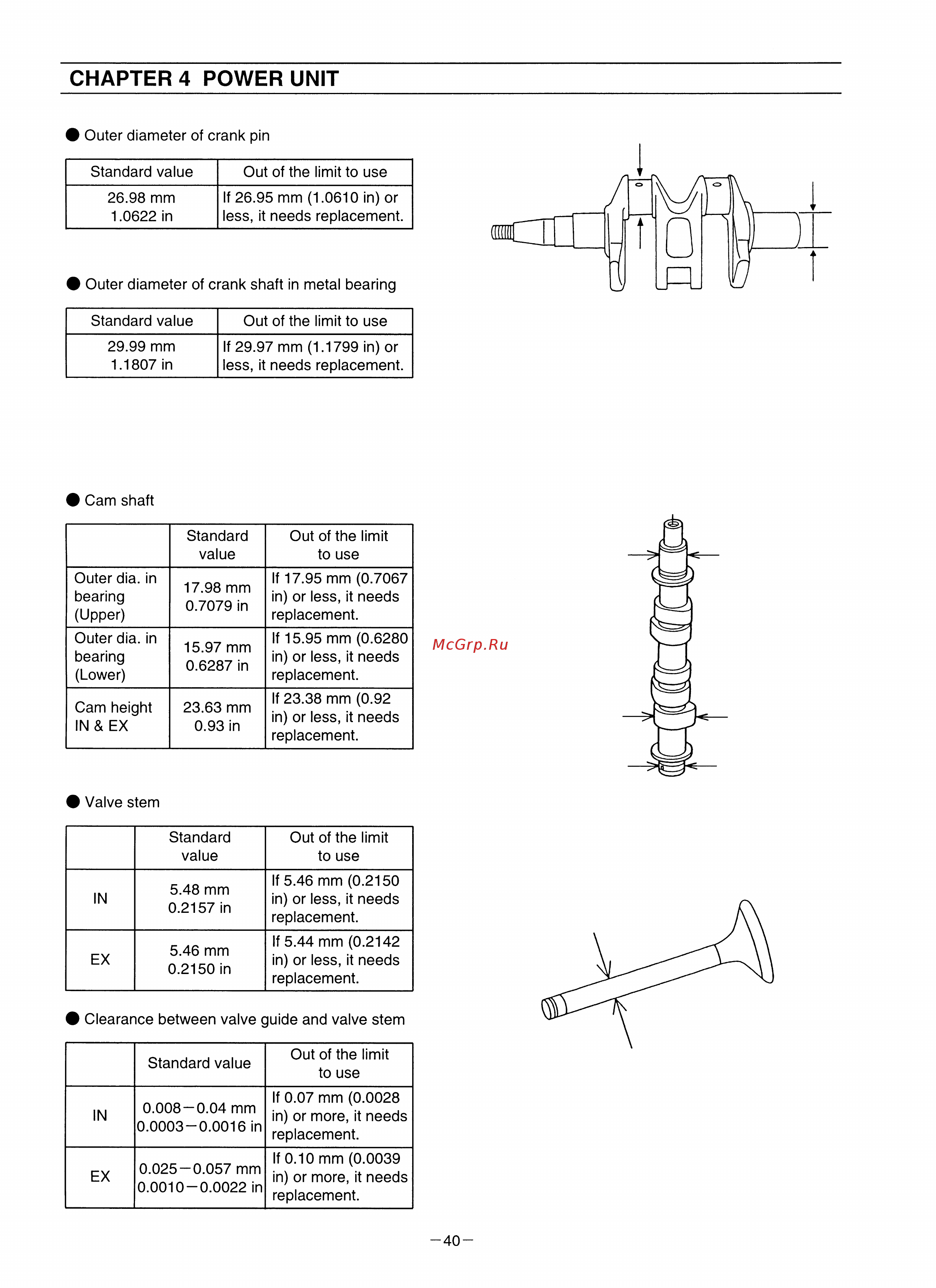

CHAPTER 4 POWER UNIT Outer diameter of crank pin Standard value Out of the limit to use 26 98 mm 1 0622 in If 26 95 mm 1 0610 in or less it needs replacement Outer diameter of crank shaft in metal bearing Standard value Out of the limit to use 29 99 mm 1 1807 in If 29 97 mm 1 1799 in or less it needs replacement Cam shaft Standard value Out of the limit to use Outer dia in bearing Upper 17 98 mm 0 7079 in If 17 95 mm 0 7067 in or less it needs replacement Outer dia in bearing Lower 15 97 mm 0 6287 in If 15 95 mm 0 6280 in or less it needs replacement Cam height IN EX 23 63 mm 0 93 in If 23 38 mm 0 92 in or less it needs replacement Valve stem Standard value Out of the limit to use IN 5 48 mm 0 2157 in If 5 46 mm 0 2150 in or less it needs replacement EX 5 46 mm 0 2150 in If 5 44 mm 0 2142 in or less it needs replacement Clearance between valve guide and valve stem Standard value Out of the limit to use IN 0 008 0 04 mm 0 0003 0 0016 in If 0 07 mm 0 0028 in or more it needs replacement EX 0 025 0 057 mm 0 0010 0 0022 in If 0 10 mm 0 0039 in or more it needs replacement 40
