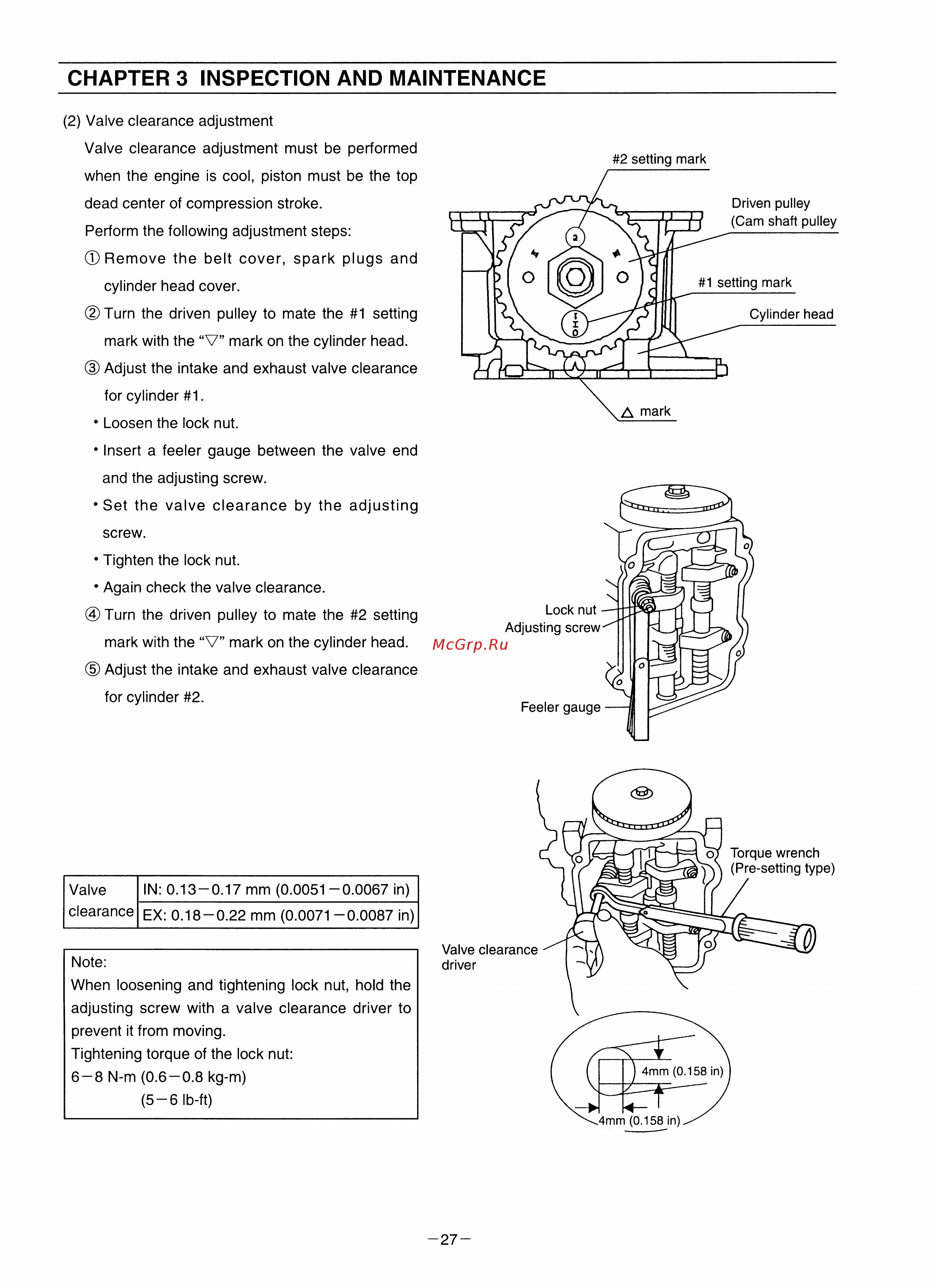

CHAPTER 3 INSPECTION AND MAINTENANCE 2 Valve clearance adjustment Valve clearance adjustment must be performed when the engine is cool piston must be the top dead center of compression stroke Perform the following adjustment steps Remove the belt cover spark plugs and cylinder head cover Turn the driven pulley to mate the 1 setting mark with the V mark on the cylinder head Adjust the intake and exhaust valve clearance for cylinder 1 Loosen the lock nut Insert a feeler gauge between the valve end and the adjusting screw Set the valve clearance by the adjusting screw Tighten the lock nut Again check the valve clearance Turn the driven pulley to mate the 2 setting mark with the V mark on the cylinder head Adjust the intake and exhaust valve clearance for cylinder 2 Valve IN 0 13 0 17 mm 0 0051 0 0067 in clearance EX 0 18 0 22 mm 0 0071 0 0087 in Note When loosening and tightening lock nut hold the adjusting screw with a valve clearance driver to prevent it from moving Tightening torque of the lock nut 6 8 N m 0 6 0 8 kg m 5 6 Ib ft 27
