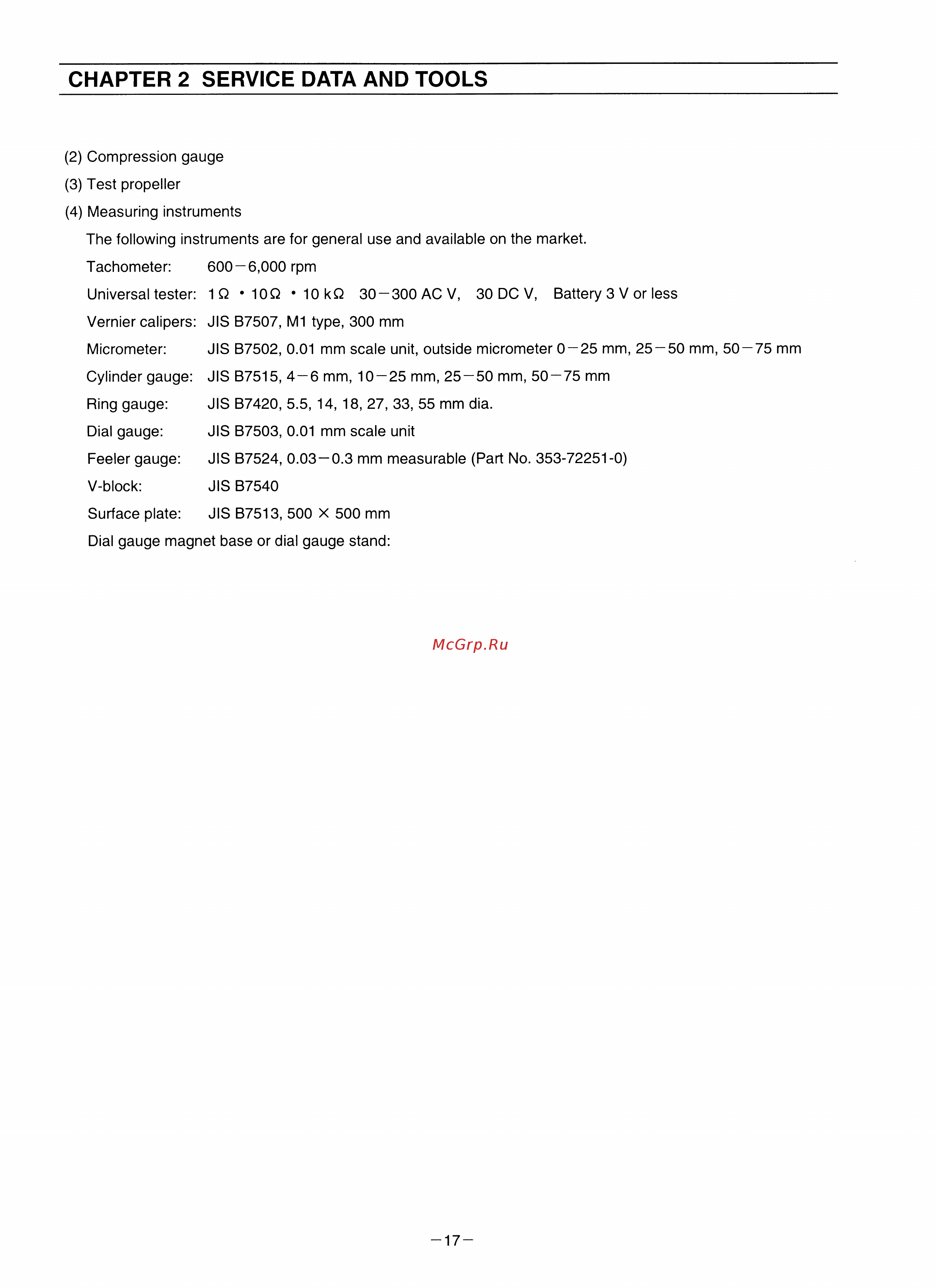

CHAPTER 2 SERVICE DATA AND TOOLS 2 Compression gauge 3 Test propeller 4 Measuring instruments The following instruments are for general use and available on the market Tachometer 600 6 000 rpm Universal tester 10 100 10 kQ 30 300 AC V 30 DC V Battery 3 V or less Vernier calipers JIS B7507 M1 type 300 mm Micrometer JIS B7502 0 01 mm scale unit outside micrometer 0 25 mm 25 50 mm 50 75 mm Cylinder gauge JIS B7515 4 6 mm 10 25 mm 25 50 mm 50 75 mm Ring gauge JIS B7420 5 5 14 18 27 33 55 mm dia Dial gauge JIS B7503 0 01 mm scale unit Feeler gauge JIS B7524 0 03 0 3 mm measurable Part No 353 72251 0 V block Surface plate JISB7540 JIS B7513 500 X 500 mm Dial gauge magnet base or dial gauge stand 17
