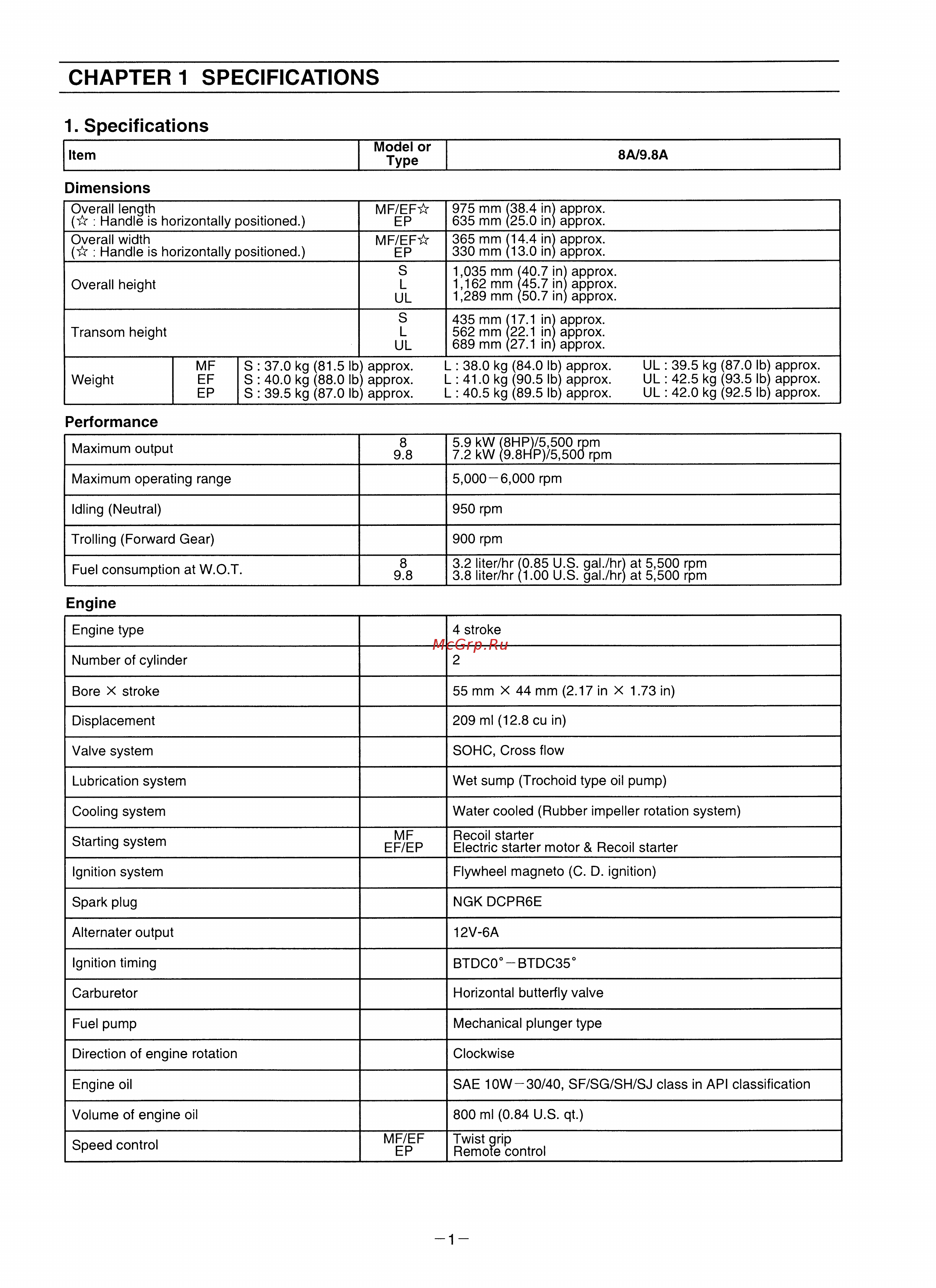

CHAPTER 1 SPECIFICATIONS 1 Specifications Model or Type Item 8A 9 8A Dimensions Overall length Handle is horizontally positioned MF EF EP 975 mm I 38 4 in approx 635 mm 25 0 in approx Overall width Handle is horizontally positioned MF EF EP 365 mm i 14 4 in approx 330 mm i 13 0 in approx Overall height s L UL 1 035 mm 40 7 in approx 1 162 mm 45 7 in approx 1 289 mm 50 7 in approx Transom height S L UL 435 mm I 17 1 in approx 562 mm I 22 1 in approx 689 mm 27 1 in approx Weight MF EF EP S 37 0 kg S 40 0 kg S 39 5 kg 81 5 lb approx 88 0 lb approx 87 0 lb approx L L L 38 0 kg 84 0 41 0 kg 90 5 40 5 kg 89 5 lb approx lb approx lb approx UL 39 5 kg 87 0 lb approx UL 42 5 kg 93 5 lb approx UL 42 0 kg 92 5 lb approx Performance Maximum output 8 9 8 5 9 kW 8HP 5 500 rpm 7 2 kW 9 8HP 5 500 rpm Maximum operating range 5 000 6 000 rpm Idling Neutral 950 rpm Trolling Forward Gear 900 rpm Fuel consumption at W O T 8 9 8 3 2 liter hr 0 85 U S gal hr at 5 500 rpm 3 8 liter hr 1 00 U S gal hr at 5 500 rpm Engine Engine type 4 stroke Number of cylinder 2 Bore X stroke 55 mm X 44 mm 2 17 in X 1 73 in Displacement 209 ml 12 8 cu in Valve system SOHC Cross flow Lubrication system Wet sump Trochoid type oil pump Cooling system Water cooled Rubber impeller rotation system Starting system MF EF EP Recoil starter Electric starter motor Recoil starter Ignition system Flywheel magneto C D ignition Spark plug NGK DCPR6E Alternater output 12V 6A Ignition timing BTDC0 BTDC35 Carburetor Horizontal butterfly valve Fuel pump Mechanical plunger type Direction of engine rotation Clockwise Engine oil SAE 10W 30 40 SF SG SH SJ class in API classification Volume of engine oil 800 ml 0 84 U S qt Speed control MF EF EP Twist grip Remote control 1
