- 21 -
Move your mouse to the Live View area and click on anywhere,
the camera lens will then move to the position where you
clicked to display it in the central part of Live View area.
When you enlarge the Live View by clicking the Zoom In buttons
(2x or 3x), you can move the displayed image by right-clicking
your mouse on the Live View area. The position where you right-
clicked will be displayed in the central part of Live View area.
Zoom In Buttons
– Click the buttons to zoom in the live view image
by 1x, 2x, and 3x.
Nightmode Button
– Click the button to enable the “nightshot
mode” to deliver clearer images in the dark environment. However,
this will reduce the frame rate of video setting.
Live View/Setup Switch
– Click Setup to configure the camera. For
details, see Chapter 4.
Compression Buttons
– Select to transmit and record the video
using MPEG4 or MJPEG compression.

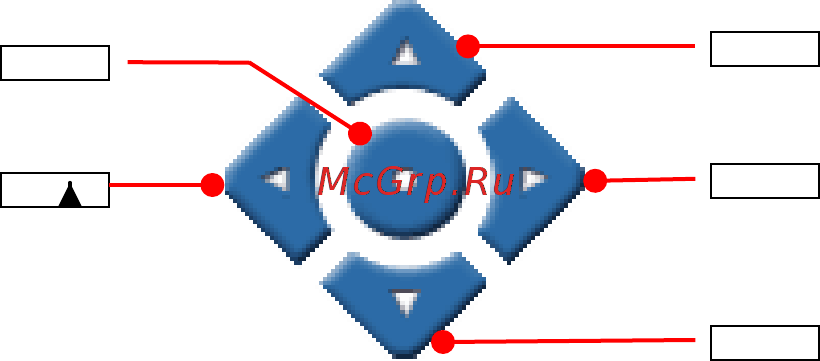

Pan/Tilt Buttons
– Provides the buttons to control the camera lens:
Left/Right/Up/Down/Home buttons allow you to move the
camera lens position. Clicking the Home button will move the
camera lens to the assigned home position.
Right
Down
Home
Up
Left
