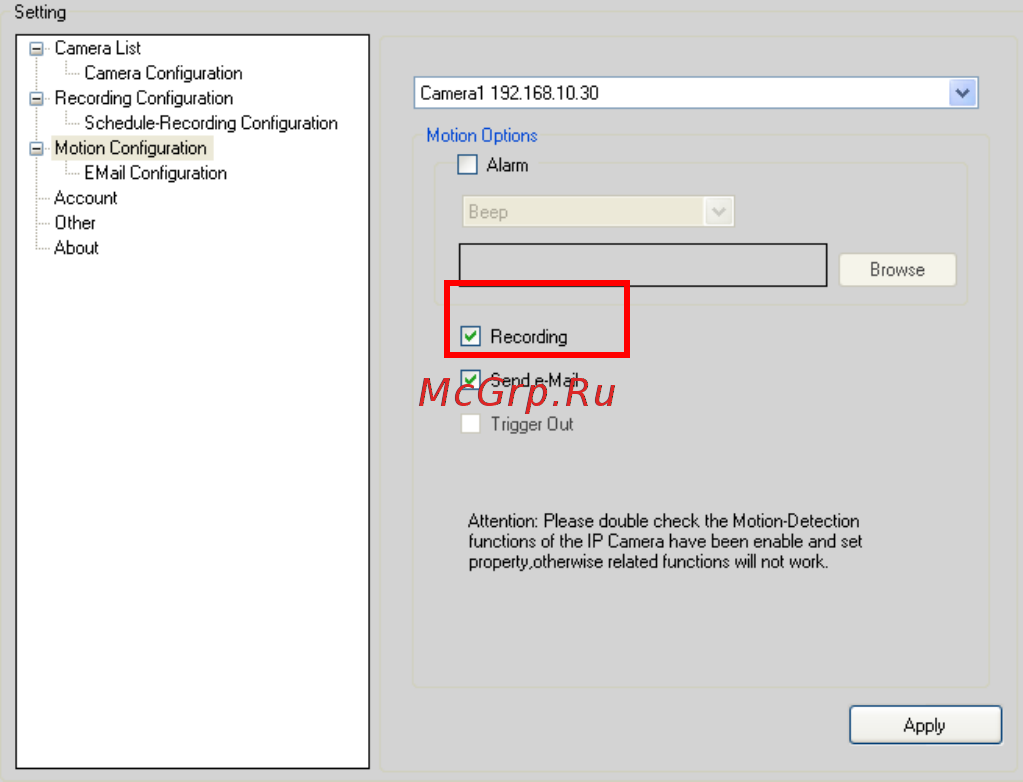

 Schedule recording Configuration

This recording method will work after you have completed the

required settings in Schedule Recording Configuration. The

recording schedule can be defined by Dates or Days.

- Dates: Select the camera from the pull-down list..
