Asus WS X299 PRO/SE [23/142] System memory

ASUS WS X299 PRO Series

1-5

Chapter 1

1.1.4 System memory

Themotherboardcomeswitheight(8)DDR4(DoubleDataRate4)DualInlineMemory

Modules(DIMM)slots.

ADDR4moduleisnotcheddifferentlyfromaDDR,DDR2orDDR3module.DONOTinstall

aDDR,DDR2orDDR3memorymoduletotheDDR4slot.

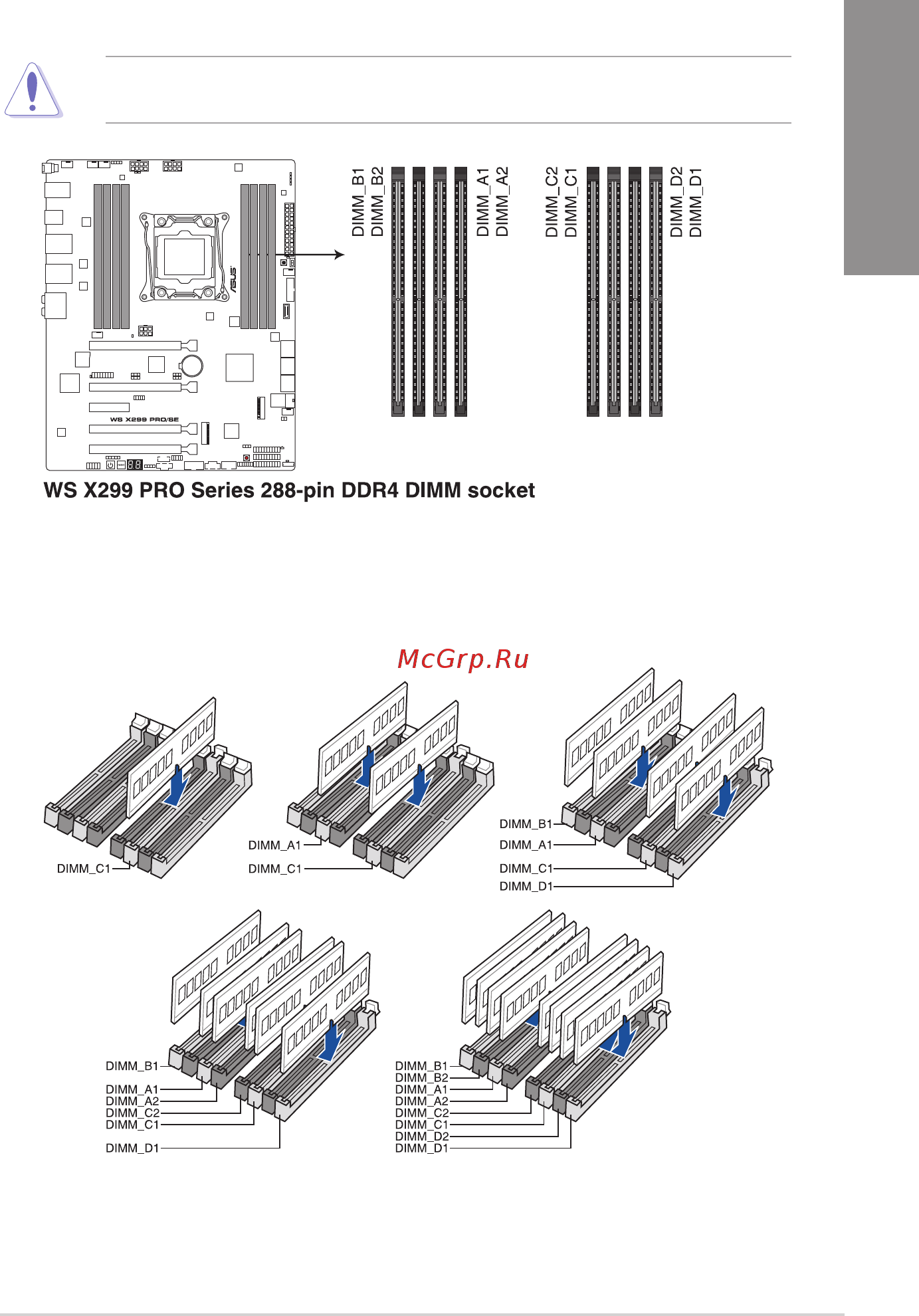

Recommended memory congurations

Intel

Core™ X-series Processors (6-core or above)
