Asus WS X299 PRO/SE [44/142] Chapter 1
![Asus WS X299 PRO/SE [44/142] Chapter 1](/views2/1307896/page44/bg2c.png)
1-26
Chapter 1: Product Introduction
Chapter 1

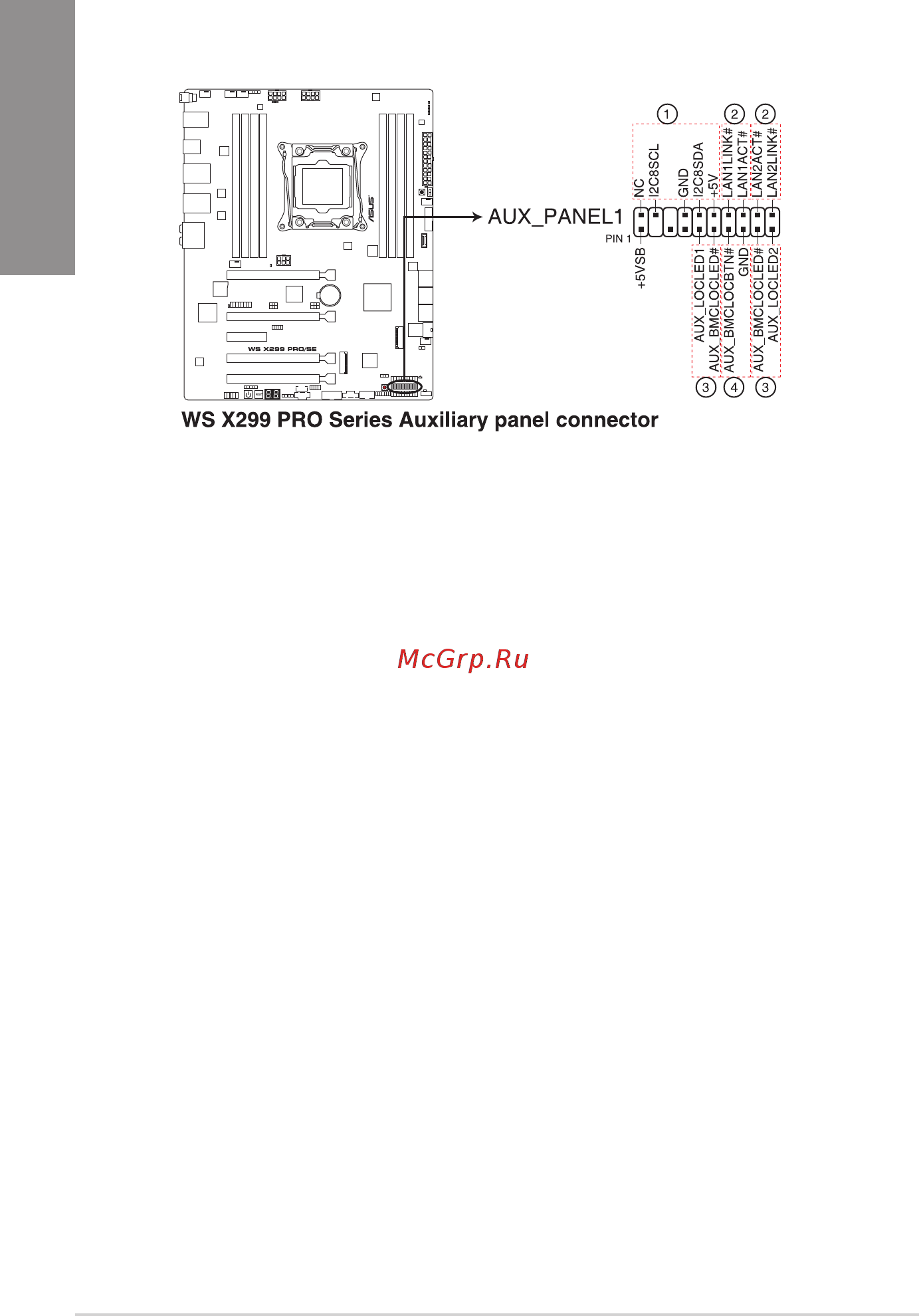

12. Auxiliary panel connector (20-2 pin AUX_PANEL1)
(for WS X299 PRO/SE only)
ThisconnectorisforadditionalfrontpanelfeaturesincludingfrontpanelSMB,locator
LEDandswitch,chassisintrusion,andLANLEDs.
1. Front panel SMB (6-1 pin FPSMB)
ThisconnectorisforthefrontpanelSMBuscable.
2. LAN activity LED (2-pin LAN1_LED, LAN2_LED)
TheseconnectorsarefortheGigabitLANactivityLEDsonthefrontpanel.
3. Locator LED (2-pin LOCATORLED1, 2-pin LOCATORLED2)
TheseconnectorsareforthelocatorLED1andLED2onthefrontpanel.Connectthe
LocatorLEDcablestothese2-pinconnector.TheLEDswilllightupwhentheLocator
buttonispressed.
4. Locator Button/Switch (2-pin LOCATORBTN)
Thisconnectorisforthelocatorbuttononthefrontpanel.Thisbuttonqueriesthestate
ofthesystemlocator.
