Asus WS X299 PRO/SE [30/142] Jumpers

1-12

Chapter 1: Product Introduction

Chapter 1

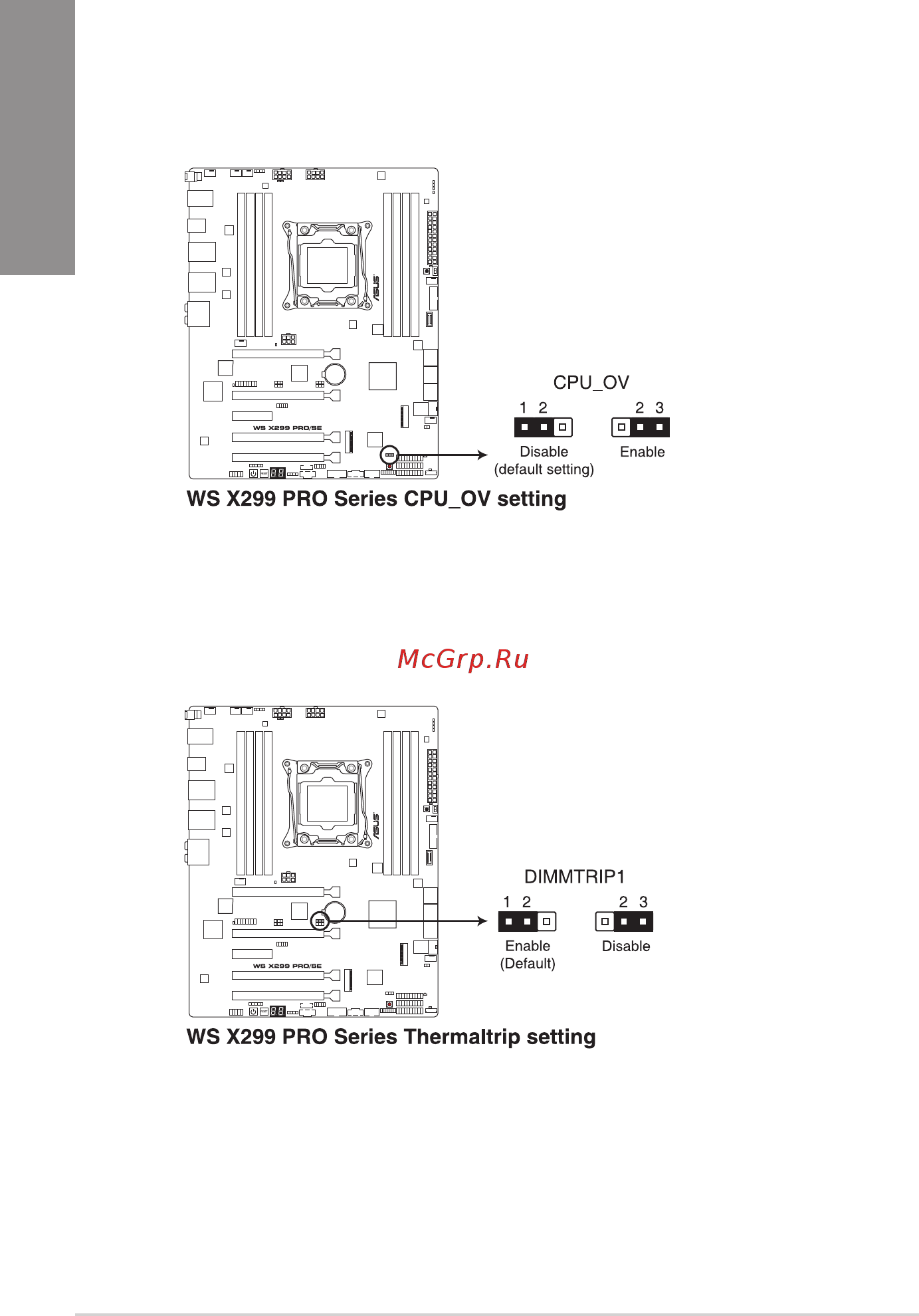

2. DDR4 thermal event setting (3-pin DIMMTRIP1)

ThesejumpersallowyoutoenableordisableDDR4DIMMthermalsensingeventpin.

1.1.7 Jumpers

1. CPU Over Voltage jumper (3-pin CPU_OV)

TheCPUOverVoltagejumperallowsyoutosetahigherCPUvoltageforaexible

overclockingsystem,dependingonthetypeoftheinstalledCPU.TogainmoreCPU

voltagesetting,insertthejumpertopins2-3.TogobacktoitsdefaultCPUvoltage

setting,insertthejumpertopins1-2.
