ASUS WS X299 PRO Series
1-15
Chapter 1
1.1.8 Onboard LEDs

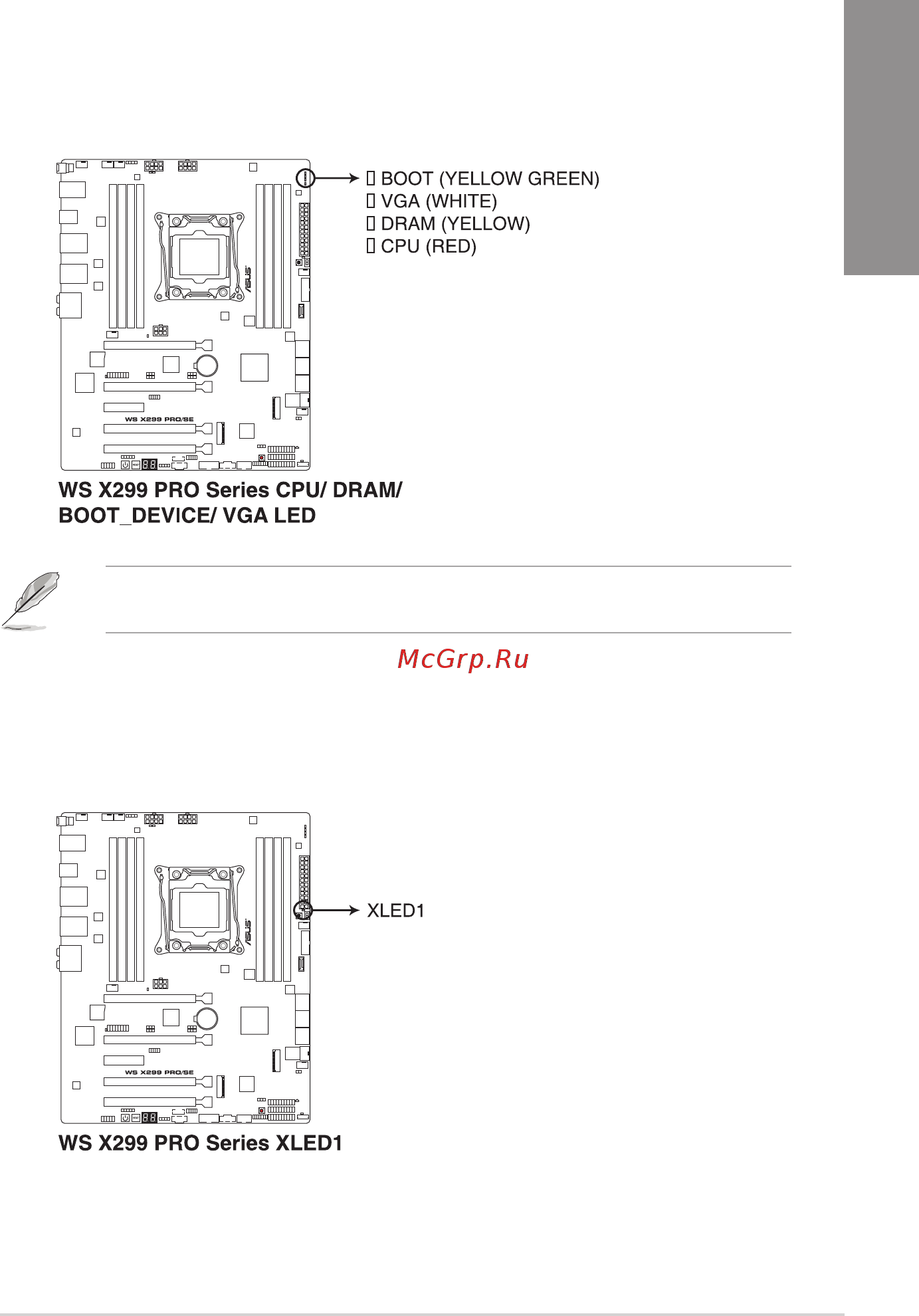

1. Q LED (CPU, DRAM, VGA, BOOT)
QLEDcheckskeycomponents(CPU,DRAM,VGAcard,andbootingdevices)in
sequenceduringmotherboardbootingprocess.Ifanerrorisfound,thecorresponding
LEDremainslituntiltheproblemissolved.Thisuser-friendlydesignprovidesan
intuitivewaytolocatetherootproblemwithinseconds.
2. EZ XMP LED (XLED1)
ThisLEDlightsupwhenyouenabletheEZXMPswitch.
TheQLEDsprovidethemostprobablecauseofanerrorcodeasastartingpointfor
troubleshooting.Theactualcausemayvaryfromcasetocase.
