ASUS WS X299 PRO Series
1-23
Chapter 1

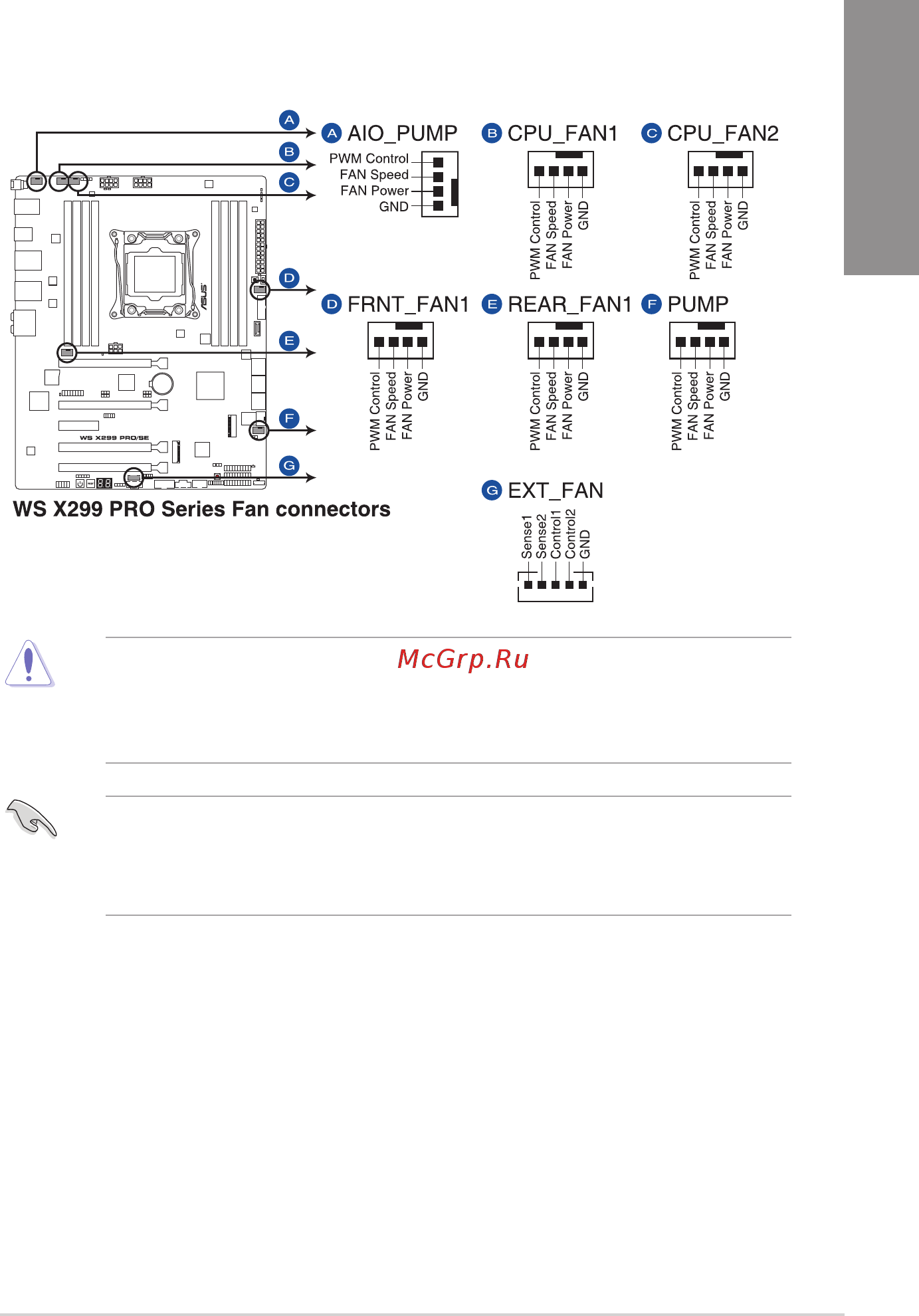

9. CPU, AIO pump, front, rear, pump, and extension fan connectors (4-pin CPU_
FAN1-2; 4-pin AIO_PUMP; 4-pin FRNT_FAN1; 4-pin REAR_FAN1; 4-pin PUMP;
5-pin EXT_FAN)
Connectthefancablestothefanconnectorsonthemotherboard,ensuringthatthe
blackwireofeachcablematchesthegroundpinoftheconnector.
• TheCPU_FANconnectorsupportstheCPUfanofmaximum1A(12W)fanpower.
• PUMPfunctionsupportdependsonwatercoolingdevice.
• ConnectthefanofyourwatercoolingkittotheAIO_PUMP/PUMPconnector.
• DONOTforgettoconnectthefancablestothefanconnectors.Insufcientairow
insidethesystemmaydamagethemotherboardcomponents.Thesearenotjumpers!
Donotplacejumpercapsonthefanconnectors!
• EnsurethattheCPUfancableissecurelyinstalledtotheCPUfanconnector.
