1-16
Chapter 1: Product Introduction
Chapter 1

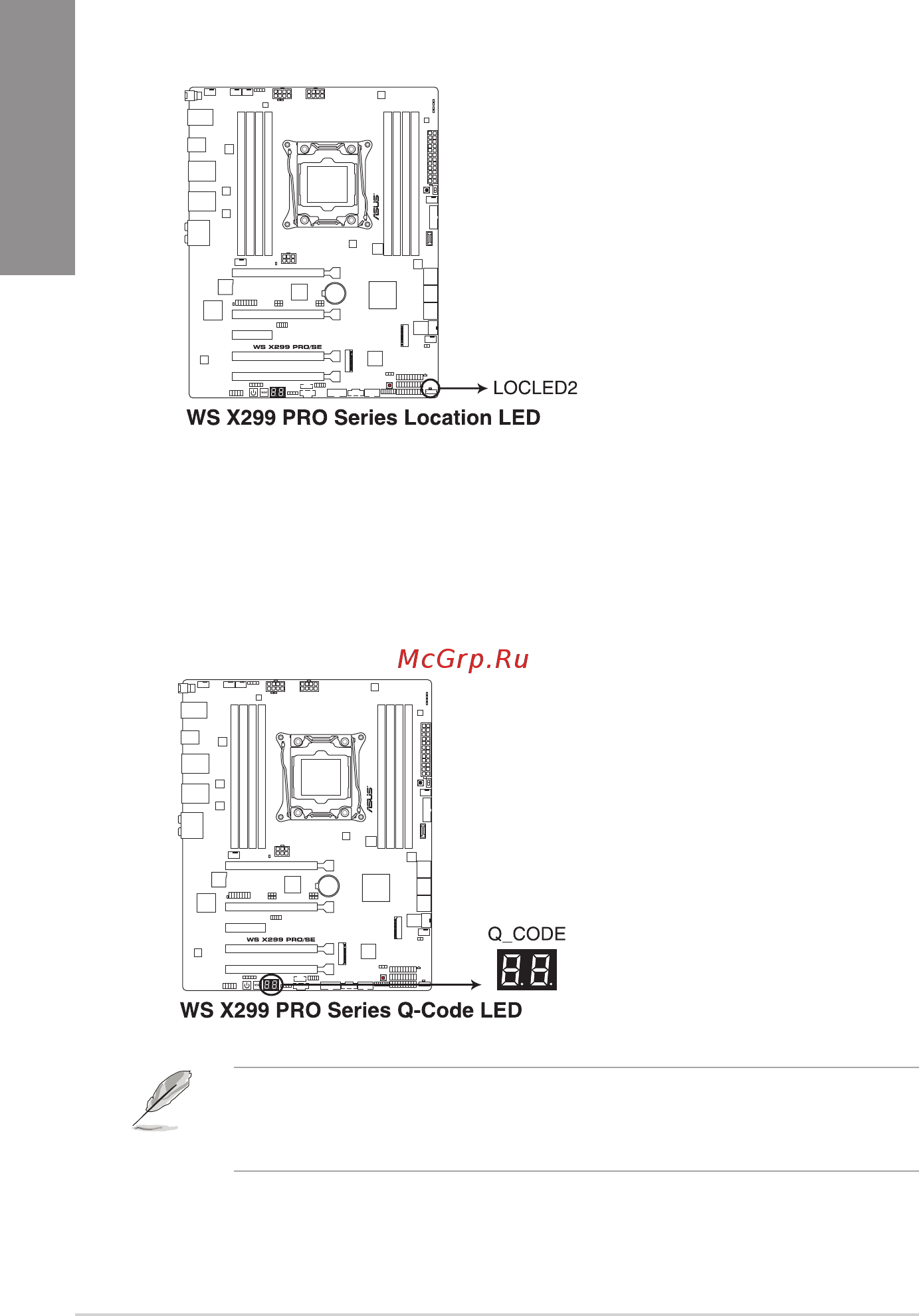

4. Q-Code LEDs
TheQ-CodeLEDdesignprovidesyouwitha2-digiterrorcodethatdisplaysthesystem
status.
• TheQ-CodeLEDsprovidethemostprobablecauseofanerrorcodeasastarting
pointfortroubleshooting.Theactualcausemayvaryfromcasetocase.
• PleaserefertotheQ-CodetableintheAppendixsectionformoredetails.
3. Location LED (LOCLED2)
ThisonboardLEDlightsupwhentheLocationbuttonontheserverispressedorwhen
triggeredbyasystemmanagementsoftware.TheLocationLEDhelpsvisuallylocate
andquicklyidentifytheserverinerroronaserverrack.
