Chapter 1: Product Introduction

Chapter 1

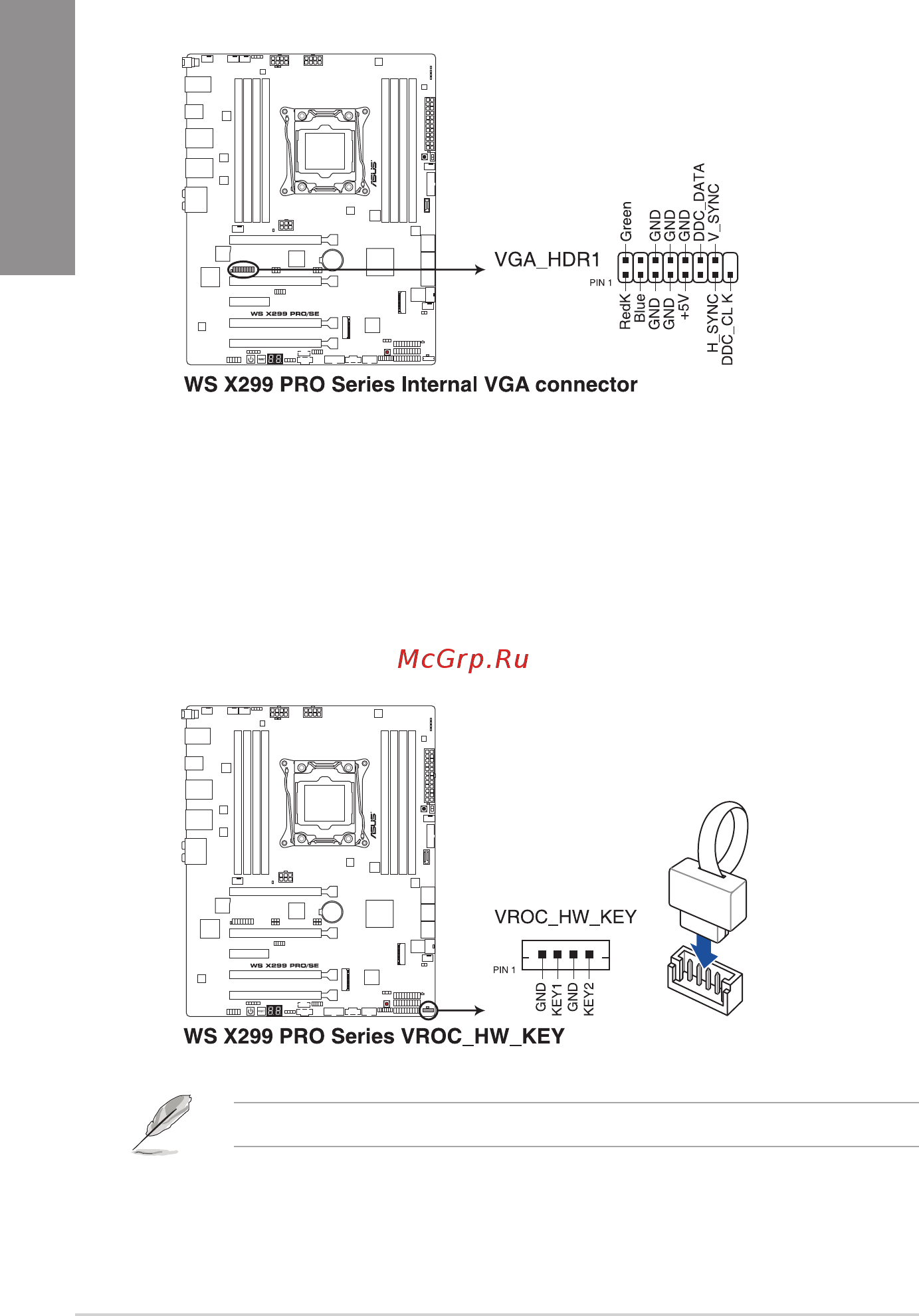

7. VGA connector (16-1 pin VGA_HDR1)

(for WS X299 PRO/SE only)

ThisconnectorsupportstheVGAHighDynamic-Rangeinterface.

8. VROC_KEY connector (4-pin VROC_HW_KEY)

ThisconnectorallowsyoutoconnectaKEYmoduletoenableCPURAIDfunctions

withIntel

CPURSTe.

TheKEYmoduleispurchasedseparately.
