! The appliance must be installed by a qualified person

in compliance with the instructions provided.

Wear gloves and goggles when carrying out

installation and maintenance operations.

AIR VENT

(for ducting versions)

! Prepare the hole and the air vent duct (150 mm

diameter).

! Use a duct of the minimum indispensible length.

! Use a duct with as few elbows as possible (maximum

elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

! Use a duct with an as smooth as possible inside.

! The duct must be made of certified material.

! Do not connect the hood to smoke exhaust ducts for

the products of combu

stion (boilers, fireplaces,

stoves, etc).

! For the air vents comply with the provisions laid down

by the competent authorities.

In addition, the air must not be evacuated through a

hole in the wall unless specifically intended for this

purpose.

! Fit air intakes in the room to prevent the hood from

creating a negative pressure in the room (which must

not exceed 0.04 mbar); if the hood is used at the

same time as non-electrical equipment (gas, oil and

charcoal fired stoves, etc.) the exhaust

gas may

sucked in by the heat source.

FILTERING OR DUCTING VERSION ?

The hood may be in filtering or in ducting version.

Decide from the outset which type is to be installed.

For better efficiency, we recommend installing the hood

in the ducting version (if possible).

Ducting version

The hood purifies the air and evacuates it to the outside

through an exhaust duct (diameter 150 mm).

Filtering version

The hood purifies the air and recycles the clean air

back into the room. For this version, the following is

required: 2 charcoal filter, 1 reducer and 1 air buffle.

The upper flue air evacuation slots must be positioned

at the top.

- AUTOMATIC function (Sensor)

Once the PU5 key is pressed, the speed of the motor

is automatically set by the sensor and is displayed by

the corresponding LED (fixed light). For each automatic

change of speed, the LED of PU5 blinks for 5 secon

ds.

During automatic operation it is in any case possible to

vary the speed of the motor by using the corresponding

buttons. When the function is active, pressing the PU5

key turns the motor on/off.

Setting of the sensor sensitivity

With the motor stopped, and the automatic function

deactivated, press both the PU1 and PU5 keys

simultaneously for 3 seconds.

The LED of PU2 (minimum sensitivity) or of PU3

(medium sensitivity) or of PU4 (maximum sensitivity)

indicate by blinking the current level of sensitivity.

Select the desired level of sensitivity:

PU2: minimum sensitivity

PU3: medium sensitivity

PU4: maximum sensitivity

Press the PU5 key to save the choice.

If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

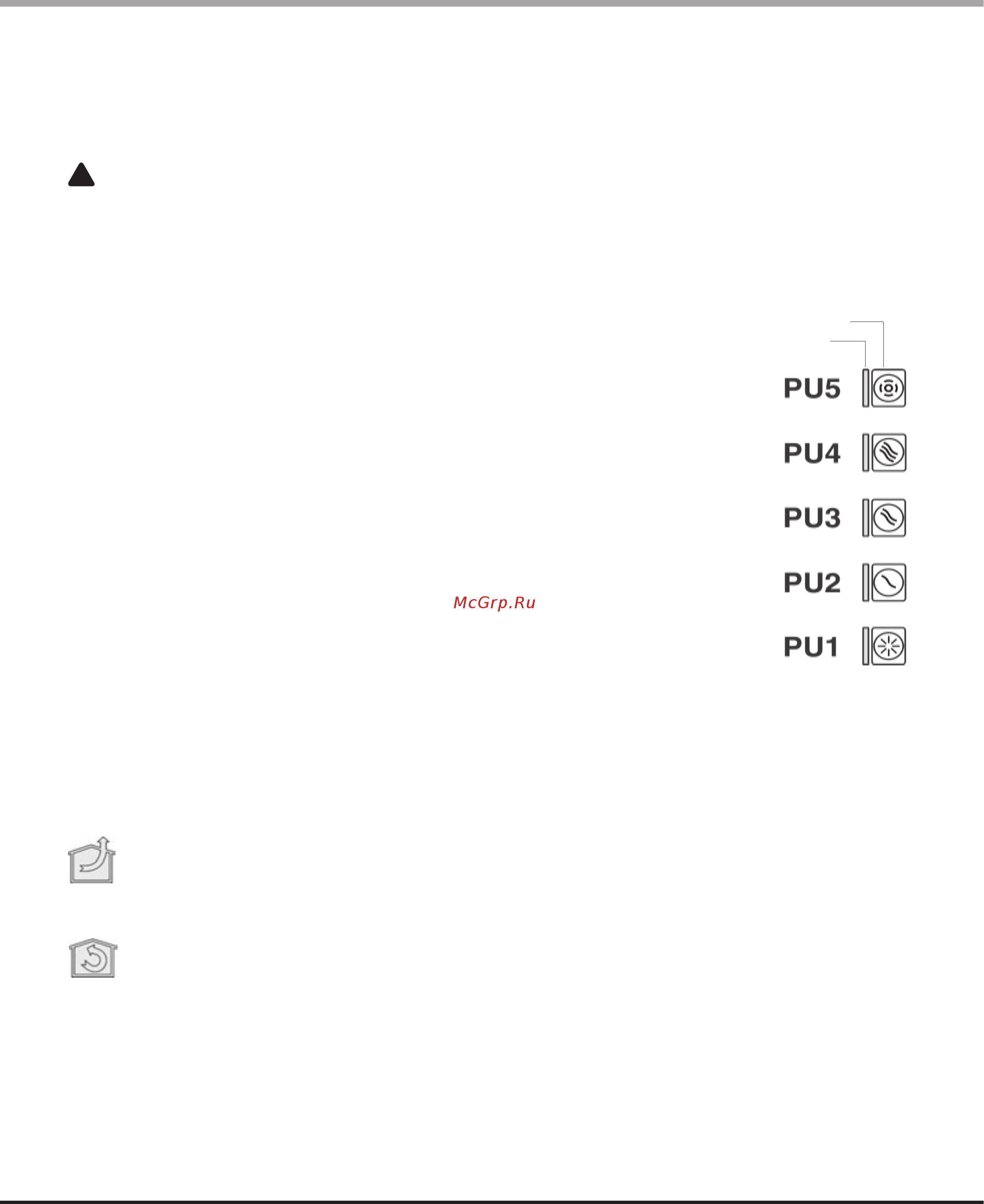

CONTROLS

Speed display

PU5: ON/OFF SENSOR

PU4: ON Motor 3

speed.

The second touch motor

speed.

PU3: ON Motor 2

speed

PU2: ON/OFF Motor 1

speed

*PU1: ON/OFF Lights

KEY

LED

Only for hoods equipped with electronic control:

The 4th speed (intensive) is automatically lowered to

3rd speed after 5 minutes of operation to optimise

energy consumption.

- If the hood is left on (lights and/or motor), after 10

hours in the absence of commands from the user, it will

automatically switch to OFF condition with all services

switched off.

- The Buzzer emits a “beep” each time that a command

is set from the keyboard or remote control (optional).

- In the event of interruption of power during the hood, if

you restore the hood in the OFF state, the

n the engine

must be reactivate manually.
