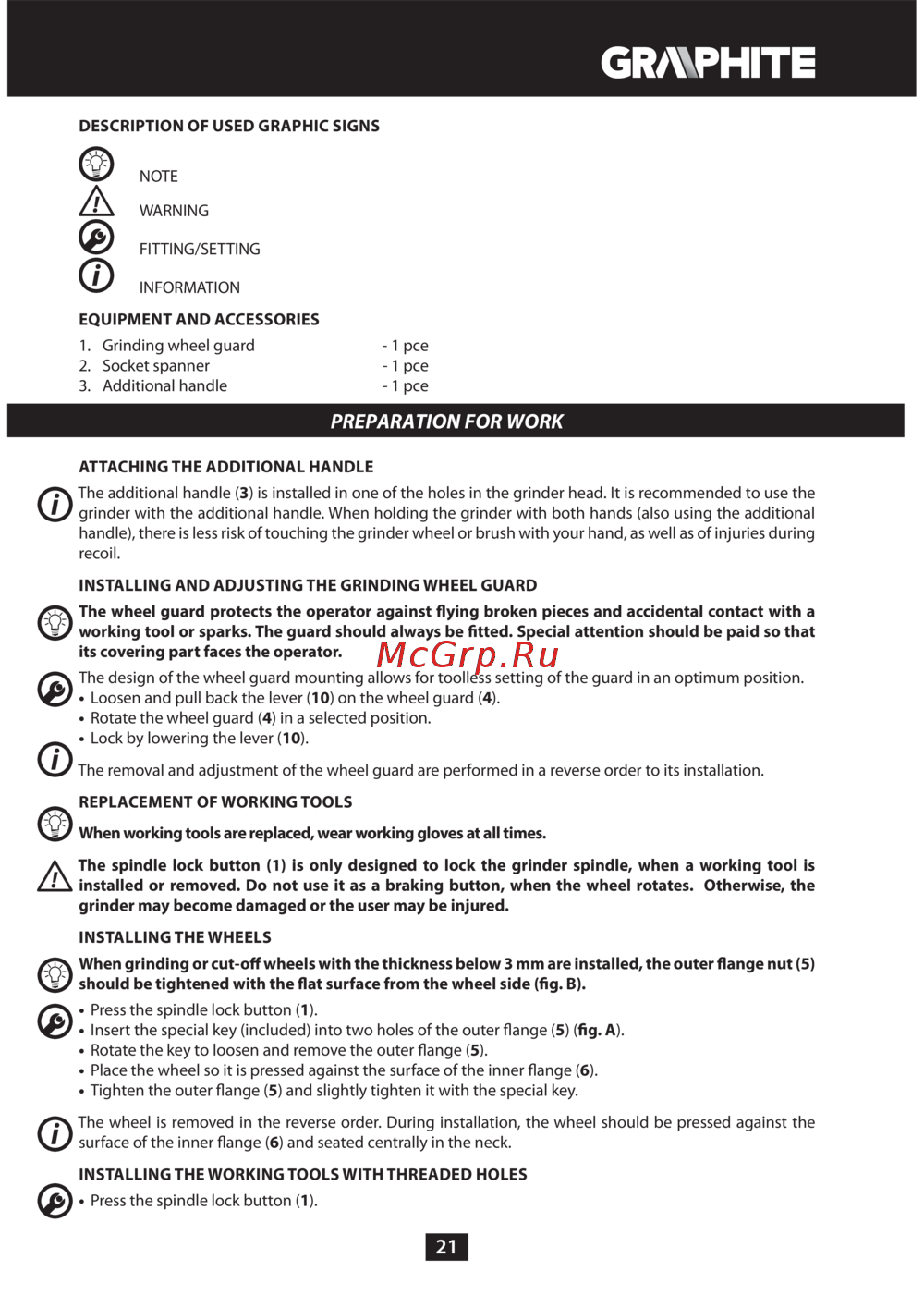

DESCRIPTION OF USED GRAPHIC SIGNS

NOTE

WARNING

FITTING/SETTING

INFORMATION

EQUIPMENT AND ACCESSORIES

1. Grinding wheel guard - 1 pce

2. Socket spanner - 1 pce

3. Additional handle - 1 pce

PREPARATION FOR WORK

ATTACHING THE ADDITIONAL HANDLE

The additional handle (3) is installed in one of the holes in the grinder head. It is recommended to use the

grinder with the additional handle. When holding the grinder with both hands (also using the additional

handle), there is less risk of touching the grinder wheel or brush with your hand, as well as of injuries during

recoil.

INSTALLING AND ADJUSTING THE GRINDING WHEEL GUARD

The wheel guard protects the operator against ying broken pieces and accidental contact with a

working tool or sparks. The guard should always be tted. Special attention should be paid so that

its covering part faces the operator.

The design of the wheel guard mounting allows for toolless setting of the guard in an optimum position.

• Loosen and pull back the lever (10) on the wheel guard (4).

• Rotate the wheel guard (4) in a selected position.

• Lock by lowering the lever (10).

The removal and adjustment of the wheel guard are performed in a reverse order to its installation.

REPLACEMENT OF WORKING TOOLS

When working tools are replaced, wear working gloves at all times.

The spindle lock button (1) is only designed to lock the grinder spindle, when a working tool is

installed or removed. Do not use it as a braking button, when the wheel rotates. Otherwise, the

grinder may become damaged or the user may be injured.

INSTALLING THE WHEELS

When grinding or cut-o wheels with the thickness below 3 mm are installed, the outer ange nut (5)

should be tightened with the at surface from the wheel side (g. B).

• Press the spindle lock button (1).

• Insert the special key (included) into two holes of the outer ﬂange (5) (g. A).

• Rotate the key to loosen and remove the outer ﬂange (5).

• Place the wheel so it is pressed against the surface of the inner ﬂange (6).

• Tighten the outer ﬂange (5) and slightly tighten it with the special key.

The wheel is removed in the reverse order. During installation, the wheel should be pressed against the

surface of the inner ﬂange (6) and seated centrally in the neck.

INSTALLING THE WORKING TOOLS WITH THREADED HOLES

• Press the spindle lock button (1).
