Multi Color Jet
OPERATION
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 37 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

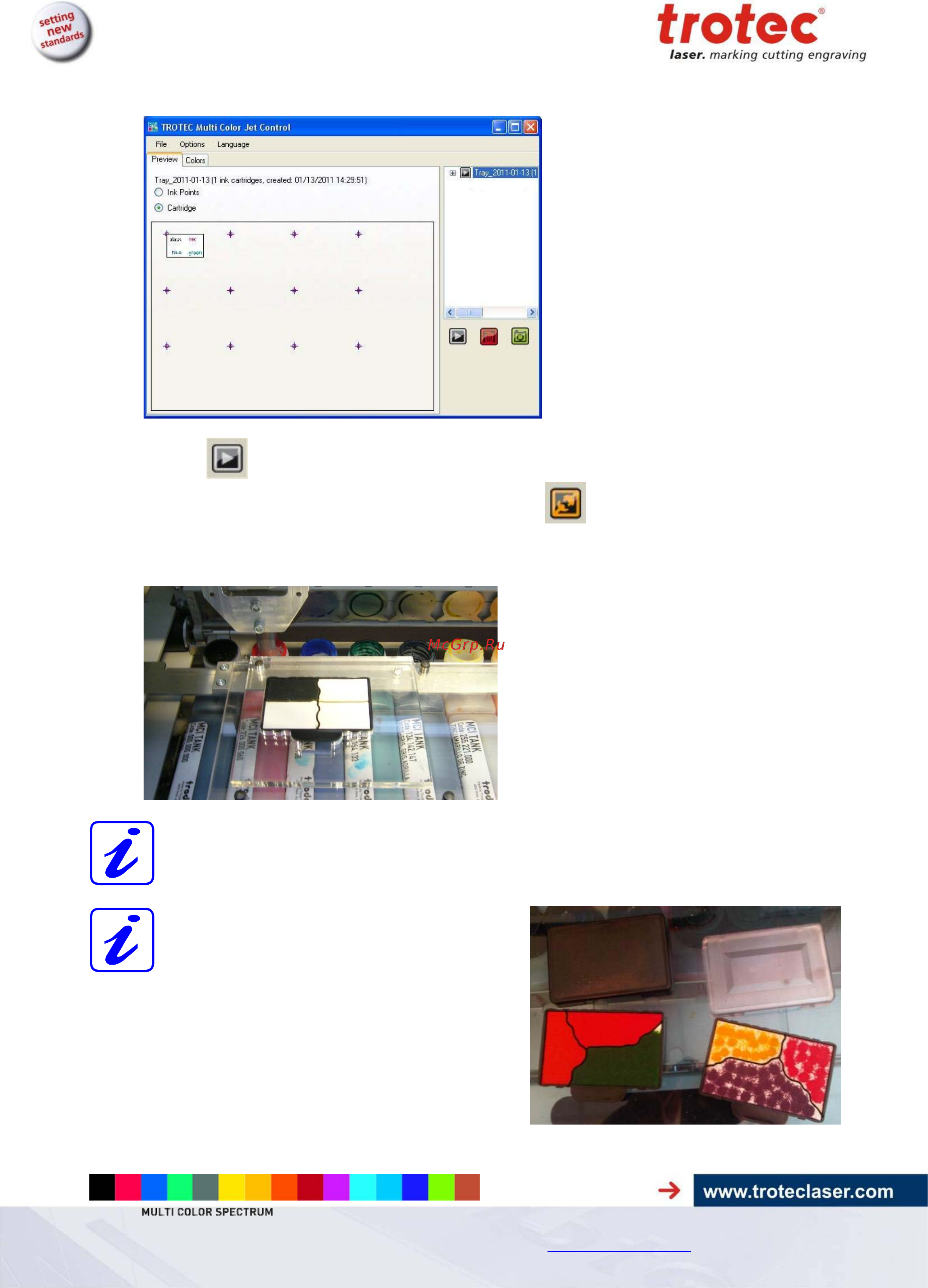

Click on the tray (in this case: Tray_2011-01-13[…]) - the tray shows up in the left preview area.
Click on “Start”
If instead of the “Start” button you see the “Connect”
button, Software and machine
are not connected. Just click on the “Connect” button and the “Start” button will show up.
Multi Color Jet starts the inking procedure.
IMPORTANT: While the Multi Color Jet is inking the ink pad, the laser can produce the
stamp pattern. Both will finish at approximately the same time.
After inking, the pads may differ in the
appearance. This will have no quality
influence.
Info: Put the pad into the corresponding
stamp and after several snap the color will
spread on the whole area and the imprint of
the stamp will look great.
