Multi Color Jet
OPERATION
14/09/2011 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 36 / 64
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

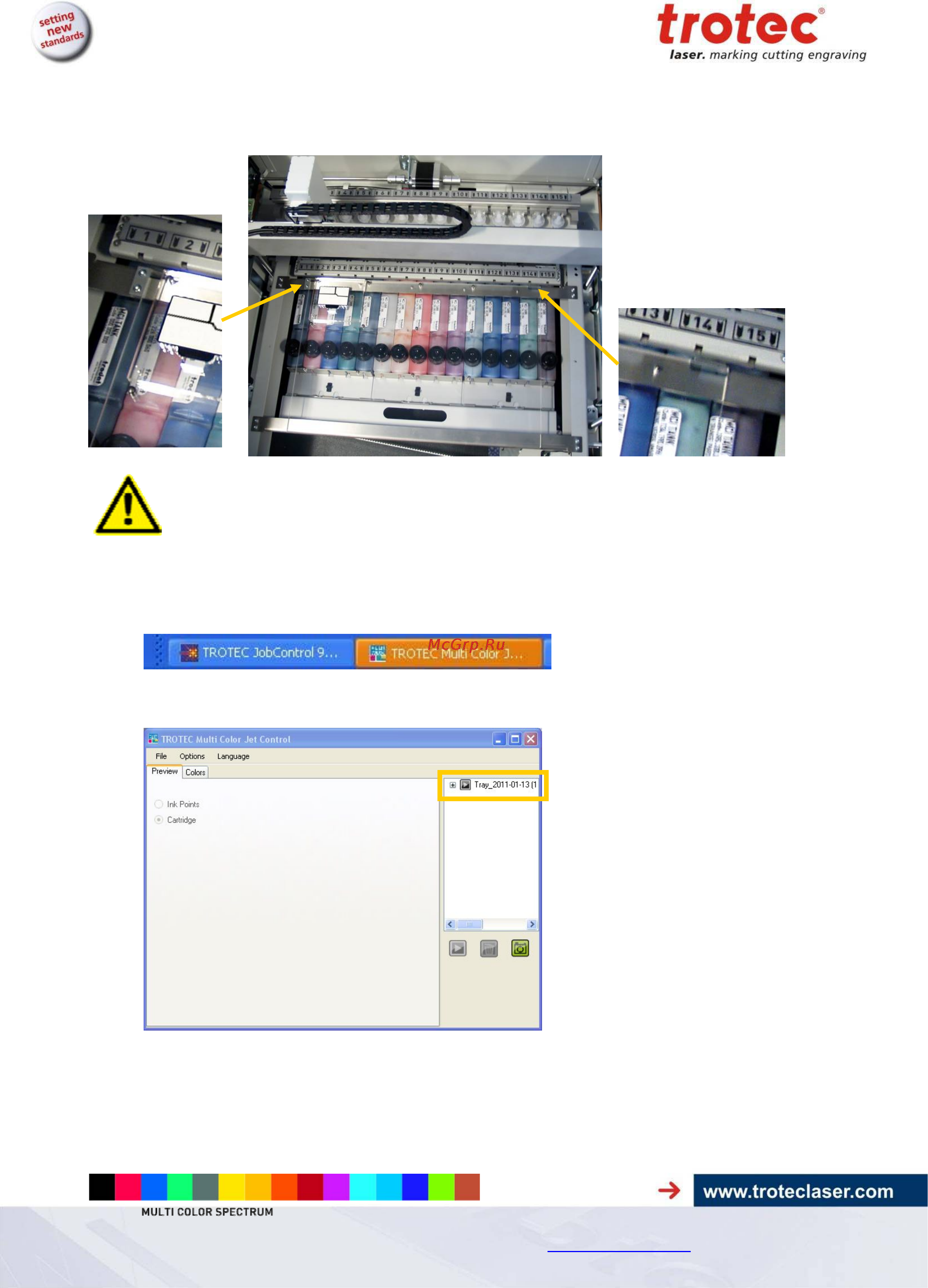

Take the tray out of the laser.
Place the tray in the Multi Color Jet – do not change the position of the pad.
Caution: Take care to position the tray at the sling points – there must not be a gap.
On your PC monitor, the TROTEC Multi Color Jet Control has opened or the Icon on the task bar is
blinking as soon as you started the cutting process in JobControl.
Click on the icon in the task bar.
In the TROTEC Multi Color Jet Control your first tray shows up in the list on the right side. The
trays are named automatically and are exactly defined via date and time.
